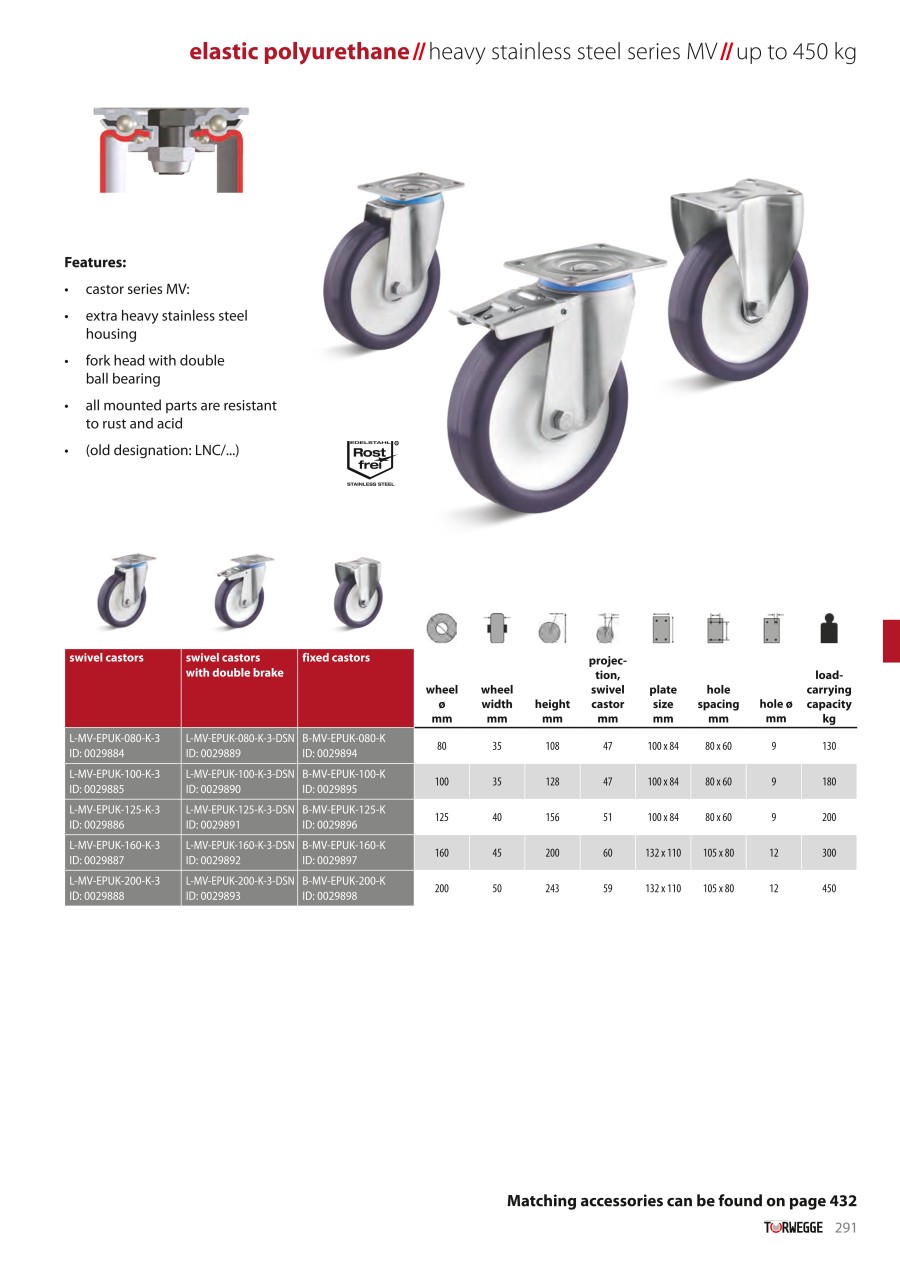

Stainless steel swivel Castors with elastic polyurethane wheel
・Rolls and case type: Steering housing
・Housing classification: Heavy stainless steel MV series
・Rim material: Polyamide
・Tread material: Elastic polyurethane
・Wheel diameter(mm): 80-200
・Wheel width(mm): 35-50
・Load capacity dynamic(kg): 130-450
[Features]
・castor series MV:
・extra heavy stainless steel housing
・fork head with double ball bearing
・all mounted parts are resistant to rust and acid
・(old designation: LNC/..)
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| L-MV-EPUK-080-K-3 |
| L-MV-EPUK-100-K-3 |
| L-MV-EPUK-125-K-3 |
| L-MV-EPUK-160-K-3 |
| L-MV-EPUK-200-K-3 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Plate length (mm) | Plate width (mm) | Wheel diameter (mm) | Wheel width (mm) | Load capacity dynamic (kg) | overall height (mm) | Discharge swivel castor (mm) | Bolt Hole Length (mm) | Bolt hole width (mm) | Screw hole (mm) | Swivel Radius (mm) | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
59.92 € | 1 | 5 Days | 100 | 84 | 80 | 35 | 130 | 108 | 47 | 80 | 60 | 9 | 87 | 0.714 | ||
61.21 € | 1 | 5 Days | 100 | 84 | 100 | 35 | 180 | 128 | 47 | 80 | 60 | 9 | 97 | 0.864 | ||
66.34 € | 1 | 5 Days | 100 | 84 | 125 | 40 | 200 | 156 | 52 | 80 | 60 | 9 | 114.5 | 1.136 | ||
118.84 € | 1 | 5 Days | 132 | 110 | 160 | 45 | 300 | 200 | 60 | 105 | 80 | 12 | 140 | 2.612 | ||
129.90 € | 1 | 5 Days | 132 | 110 | 200 | 50 | 450 | 243 | 59 | 105 | 80 | 12 | 159 | 3.05 |
Loading...
Basic information
| Rolls and case type | Steering housing | Mounting type | Mounting plate | Housing Series Type | MV (LNC/BNC) |
|---|---|---|---|---|---|
| Rim material | Polyamide | Tread material | Elastic polyurethane | electrically conductive | none |
| Housing classification | Heavy stainless steel MV series | Min. temperature resistance(° C) | -20 | Max. temperature resistance(° C) | 80 |
Configure
Basic Attributes
-
Plate length(mm)
-
Plate width(mm)
-
Wheel diameter(mm)
-
Wheel width(mm)
-
Load capacity dynamic(kg)
-
overall height(mm)
-
Discharge swivel castor(mm)
-
Bolt Hole Length(mm)
-
Bolt hole width(mm)
-
Screw hole(mm)
-
Swivel Radius(mm)
Filter by standard shipping days
-
- All
- 5 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
