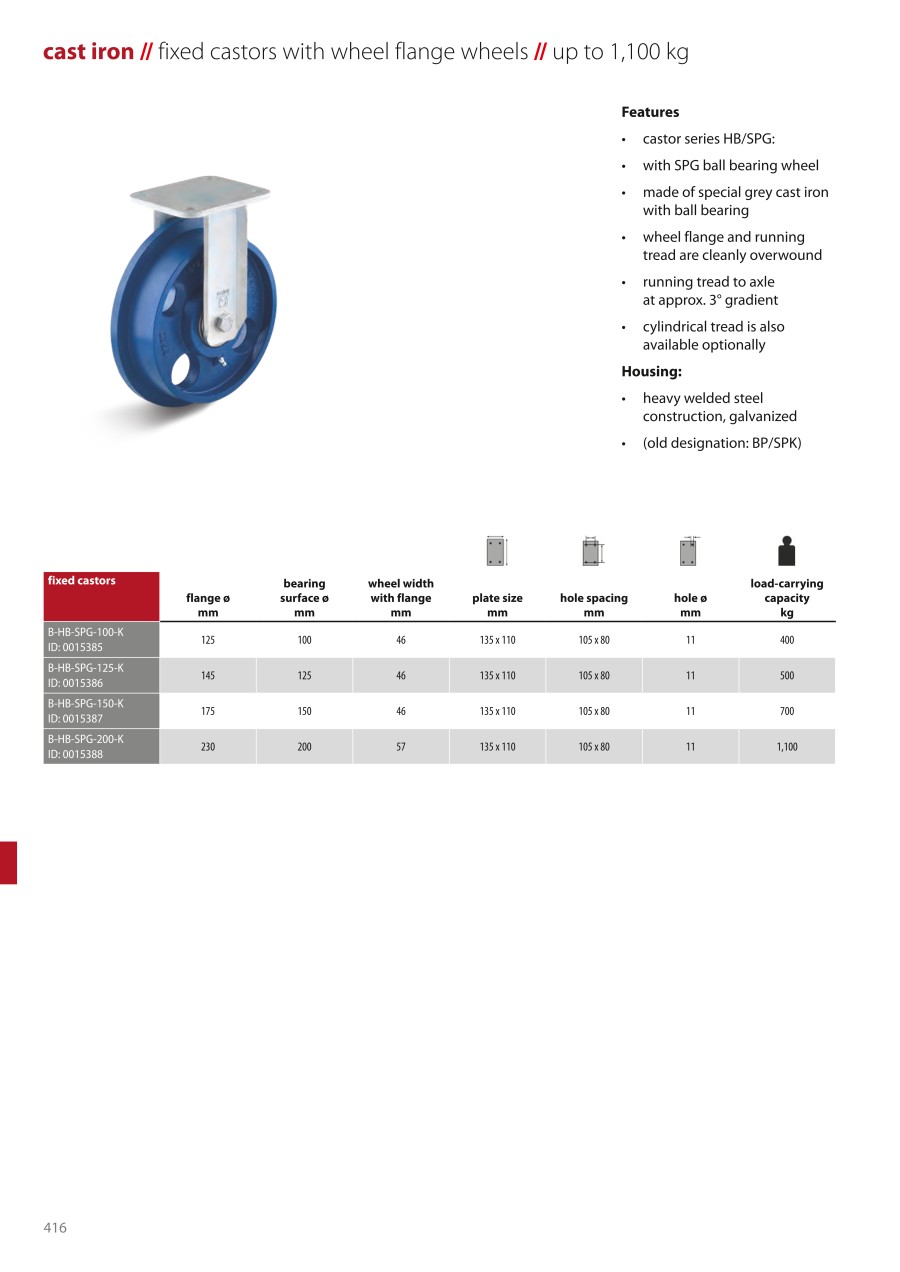

Fixed Castors with wheel flange
・Rolls and case type: Fixed bracket
・Housing material RR: Steel
・Rim material: Molding
・Tread material: Guss
・Wheel diameter(mm): 100-250
・Load capacity dynamic(kg): 400-1500
[Features]
・Fixed castor with flanged wheel HB/SPG:
・Wheel series: Wheel flange roller made of cast iron with ball bearing.
・Wheel flange and tread cleanly over-tightened and painted.
・Housing: heavy welded steel construction in galvanized design.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| B-HB-SPG-100-K |
| B-HB-SPG-125-K |
| B-HB-SPG-150-K |
| B-HB-SPG-200-K |
| B-HB-SPG-250-K-GP |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Plate length (mm) | Plate width (mm) | Wheel diameter (mm) | Load capacity dynamic (kg) | overall height (mm) | Bolt Hole Length (mm) | Bolt hole width (mm) | Surface coating | Screw hole (mm) | electrically conductive | Tread color | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
56.15 € | 1 | 5 Days | 135 | 110 | 100 | 400 | 150 | 105 | 80 | - | 11 | none | - | 4.4 | ||
58.36 € | 1 | 4 Days | 135 | 110 | 125 | 500 | 170 | 105 | 80 | - | 11 | none | - | 4.85 | ||
62.49 € | 1 | 5 Days | 135 | 110 | 150 | 700 | 200 | 105 | 80 | - | 11 | none | - | 5.5 | ||
88.42 € | 1 | 5 Days | 135 | 110 | 200 | 1100 | 245 | 105 | 80 | - | 11 | none | - | 9.7 | ||
153.66 € | 1 | 5 Days | 175 | 140 | 250 | 1500 | 305 | 140 | 105 | Painted | 15 | - | Blue | - |
Loading...
Basic information
| Rolls and case type | Fixed bracket | Mounting type | Mounting plate | Wheel bearing | Ball-bearing |
|---|---|---|---|---|---|
| Housing Series Type | HB (LP/BP) | Housing material RR | Steel | Material Description Housing | Heavy steel welded construction, galvanized |
| Rim material | Molding | Tread material | Guss | Housing design | welded |
| Tread type | rising to the axis approx. 3 ° | Housing classification | Heavy load series HB |
Configure
Basic Attributes
-
Plate length(mm)
-
Plate width(mm)
-
Wheel diameter(mm)
-
Load capacity dynamic(kg)
-
overall height(mm)
-
Bolt Hole Length(mm)
-
Bolt hole width(mm)
-
Surface coating
- Painted
-
Screw hole(mm)
-
electrically conductive
- none
-
Tread color
- Blue
Filter by standard shipping days
-
- All
- 4 Days or Less
- 5 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
