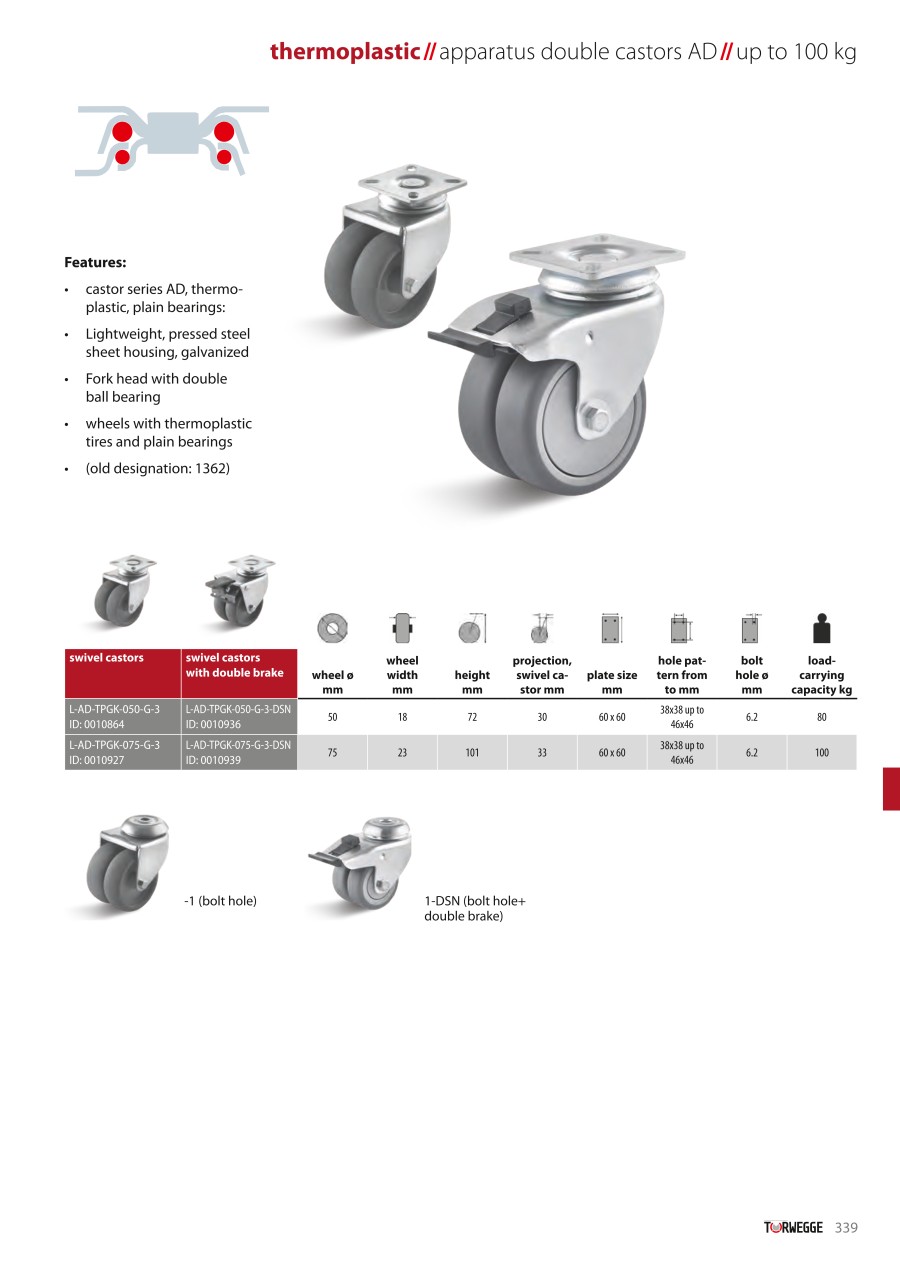

Apparatus rollsApparate double roll with thermoplastic wheels
・Rolls and case type: Steering housing
・Housing material RR: Steel galvanized
・Wheel diameter(mm): 50, 75
・Wheel width(mm): 18, 25
・Load capacity dynamic(kg): 80, 100
[Features]
・castor series AD, thermoplastic, plain bearings:
・Lightweight, pressed steel sheet housing, galvanized
・Fork head with double ball bearing
・wheels with thermoplastic tires and plain bearings
・(old designation: 1362)
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| L-AD-TPGK-050-G-3 |
| L-AD-TPGK-075-G-3 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Wheel diameter (mm) | Wheel width (mm) | Load capacity dynamic (kg) | overall height (mm) | Discharge swivel castor (mm) | Bolt Hole Length (mm) | Bolt hole width (mm) | Surface coating | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3.95 € | 1 | 4 Days | 50 | 18 | 80 | 74 | 24 | 46 | 46 | galvanized | 0.26 | ||
6.90 € | 1 | 4 Days | 75 | 25 | 100 | 102 | 31 | - | - | - | 0.518 |
Loading...
Basic information
| Plate length(mm) | 60 | Plate width(mm) | 60 | Rolls and case type | Steering housing |
|---|---|---|---|---|---|
| Mounting type | Mounting plate | Wheel bearing | Bearing | Housing material RR | Steel galvanized |
| Hole picture apparatus rolls(mm) | 38x38 to 48x48 | Number of wheels [piece] | 2 | Clevis bearing type | Clevis with double ball bearing |
| Clevis connection | riveted | electrically conductive | none | Housing design | drawn |
Configure
Basic Attributes
-
Wheel diameter(mm)
-
Wheel width(mm)
-
Load capacity dynamic(kg)
-
overall height(mm)
-
Discharge swivel castor(mm)
-
Bolt Hole Length(mm)
-
Bolt hole width(mm)
-
Surface coating
- galvanized
Filter by standard shipping days
-
- All
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
