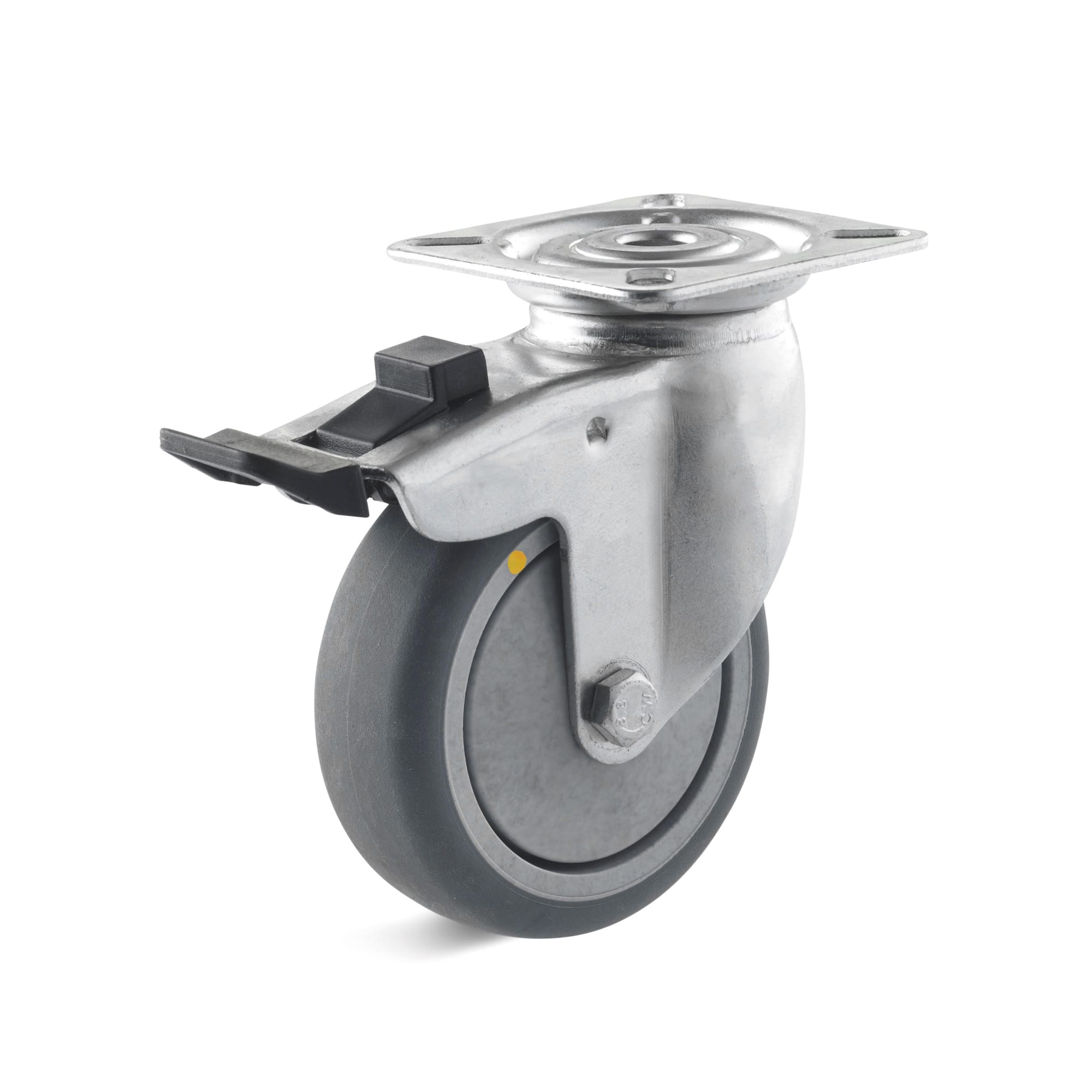

Apparatus Castors
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Plate length (mm) | Plate width (mm) | Wheel diameter (mm) | Wheel width (mm) | Load capacity dynamic (kg) | overall height (mm) | Discharge swivel castor (mm) | Rolls and case type | Mounting type | Wheel bearing | Bolt Hole Length (mm) | Bolt hole width (mm) | Hole picture apparatus rolls (mm) | Screw hole (mm) | Swivel Radius (mm) | electrically conductive | Stop Type | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
6.17 € | 1 | 5 Days | 55 | 55 | 50 | 19 | 40 | 71 | 21 | Fixed bracket | Mounting plate | Ball-bearing | 38 | 38 | 38x38 to 46x46 | 6.2 | - | electrically conductive | - | 0.18 | ||
10.43 € | 1 | 4 Days | 60 | 60 | 75 | 23 | 50 | 101 | 25 | Fixed bracket | Mounting plate | Ball-bearing | 38 | 38 | 38x38 to 46x46 | 6.2 | - | electrically conductive | - | 0.28 | ||
15.09 € | 1 | 4 Days | 60 | 67 | 100 | 25 | 65 | 122 | 32 | Fixed bracket | Mounting plate | Ball-bearing | 38 | 38 | 38x38 to 46x46 | 6.2 | - | electrically conductive | - | 0.43 | ||
13.00 € | 1 | 5 Days | - | - | - | - | 50 | 101 | 24 | Steering housing | Baack hole | - | - | - | - | - | 84 | - | - | - | ||
8.47 € | 1 | 5 Days | 60 | 60 | 50 | 19 | 40 | 71 | 24 | Steering housing | Mounting plate | Ball-bearing | 38 | 38 | 38x38 to 46x46 | 6.2 | 78 | electrically conductive | DS-N (double stop in the wake) | 0.25 | ||
6.70 € | 1 | 5 Days | 60 | 60 | 50 | 19 | 40 | 71 | 24 | Steering housing | Mounting plate | Ball-bearing | 38 | 38 | 38x38 to 46x46 | 6.2 | 49 | electrically conductive | - | 0.2 | ||
12.31 € | 1 | 5 Days | 60 | 60 | 75 | 23 | 50 | 101 | 24 | Steering housing | Mounting plate | Ball-bearing | 38 | 38 | 38x38 to 46x46 | 6.2 | 84 | electrically conductive | DS-N (double stop in the wake) | 0.35 | ||
11.28 € | 1 | 5 Days | 60 | 60 | 75 | 23 | 50 | 101 | 24 | Steering housing | Mounting plate | Ball-bearing | 38 | 38 | 38x38 to 46x46 | 6.2 | 61.5 | electrically conductive | - | 0.3 | ||
18.74 € | 1 | 5 Days | 60 | 60 | 100 | 25 | 65 | 122 | 28 | Steering housing | Mounting plate | Ball-bearing | 38 | 38 | 38x38 to 46x46 | 6.2 | 98 | electrically conductive | DS-N (double stop in the wake) | 0.5 | ||
16.65 € | 1 | 5 Days | 60 | 60 | 100 | 25 | 65 | 122 | 28 | Steering housing | Mounting plate | Ball-bearing | 38 | 38 | 38x38 to 46x46 | 6.2 | 78 | electrically conductive | - | 0.45 |
Loading...
Configure
Basic Attributes
-
Plate length(mm)
-
Plate width(mm)
-
Wheel diameter(mm)
-
Wheel width(mm)
-
Load capacity dynamic(kg)
-
overall height(mm)
-
Discharge swivel castor(mm)
-
Rolls and case type
- Fixed bracket
- Steering housing
-
Mounting type
- Baack hole
- Mounting plate
-
Wheel bearing
- Ball-bearing
-
Bolt Hole Length(mm)
-
Bolt hole width(mm)
-
Hole picture apparatus rolls(mm)
- 38x38 to 46x46
-
Screw hole(mm)
-
Swivel Radius(mm)
-
electrically conductive
- electrically conductive
-
Stop Type
- DS-N (double stop in the wake)
Filter by standard shipping days
-
- All
- 4 Days or Less
- 5 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
