Configure
- Wheel diameter(Ø)
- 50
- 75
- 80
- 100
- 125
- 150
- 160
- 200
- 250
- Wheel width(mm)
- 18
- 25
- 35
- 40
- 45
- 50
- 60
- Load capacity dynamic(kg)
- 40
- 50
- 65
- 120
- 150
- 200
- 260
- 350
- 450
- Wheel bearing
- Tread material
- Electrically conductive
- Tread type

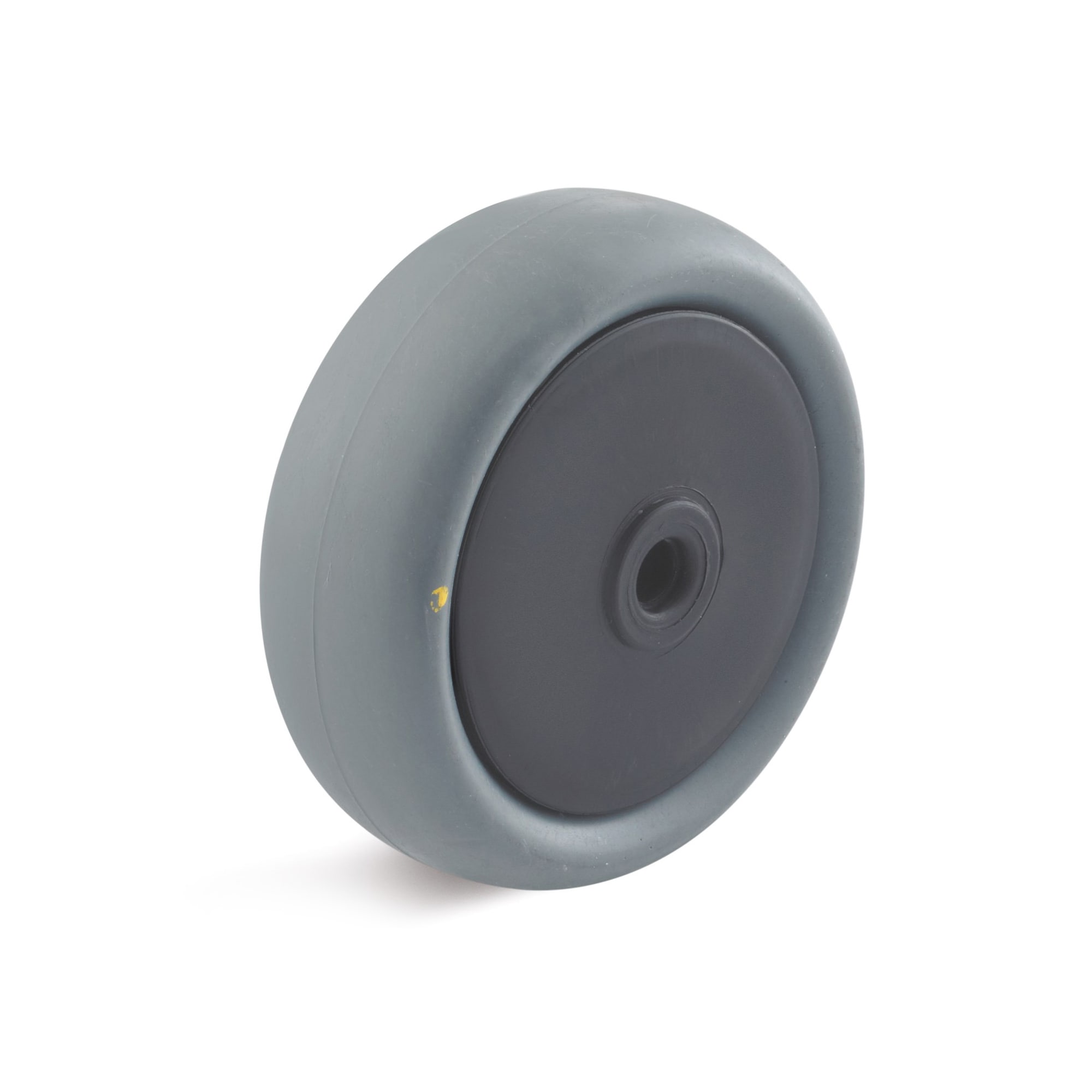

Thermoplastic wheel with polypropylene rim
Mouse over image to enlarge
Part number:
possible part numbers found.Part number list
Number of items
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
4.58 € ( 5.45 € ) | 4 working days |
8.62 € ( 10.26 € ) | 4 working days |
12.94 € ( 15.40 € ) | 4 working days |
6.15 € ( 7.32 € ) | 5 working days |
7.73 € ( 9.20 € ) | 5 working days |
6.52 € ( 7.76 € ) | 5 working days |
7.78 € ( 9.26 € ) | 5 working days |
8.06 € ( 9.59 € ) | 4 working days |
10.22 € ( 12.16 € ) | 5 working days |
13.61 € ( 16.20 € ) | 5 working days |
17.25 € ( 20.53 € ) | 5 working days |
14.43 € ( 17.17 € ) | 5 working days |
18.07 € ( 21.50 € ) | 5 working days |
17.39 € ( 20.69 € ) | 5 working days |
21.03 € ( 25.03 € ) | 5 working days |
27.33 € ( 32.52 € ) | 5 working days |
32.57 € ( 38.76 € ) | 4 working days |
More Information
Basic information
[Specifications]
・Wheel bearing: Ball-bearing, Bearing
・Rim material: Polypropylene
・Tread material: Thermoplastic, Santoprene
・Tread color: Grey
・Tread type: crowned
・Min. temperature resistance(° C): -20
・Max. temperature resistance(° C): 60
[Features]
・TPKH wheels:
・polypropylene wheel body with 2 ball bearings
・tread made of thermoplastic rubber, grey, approx. 85°shore A
[Properties]
・Runs quietly, non-marking
・higher load-carrying capacity than standard rubber
・minimal rolling resistance, shock-resistant
・(old designation:THKS)
