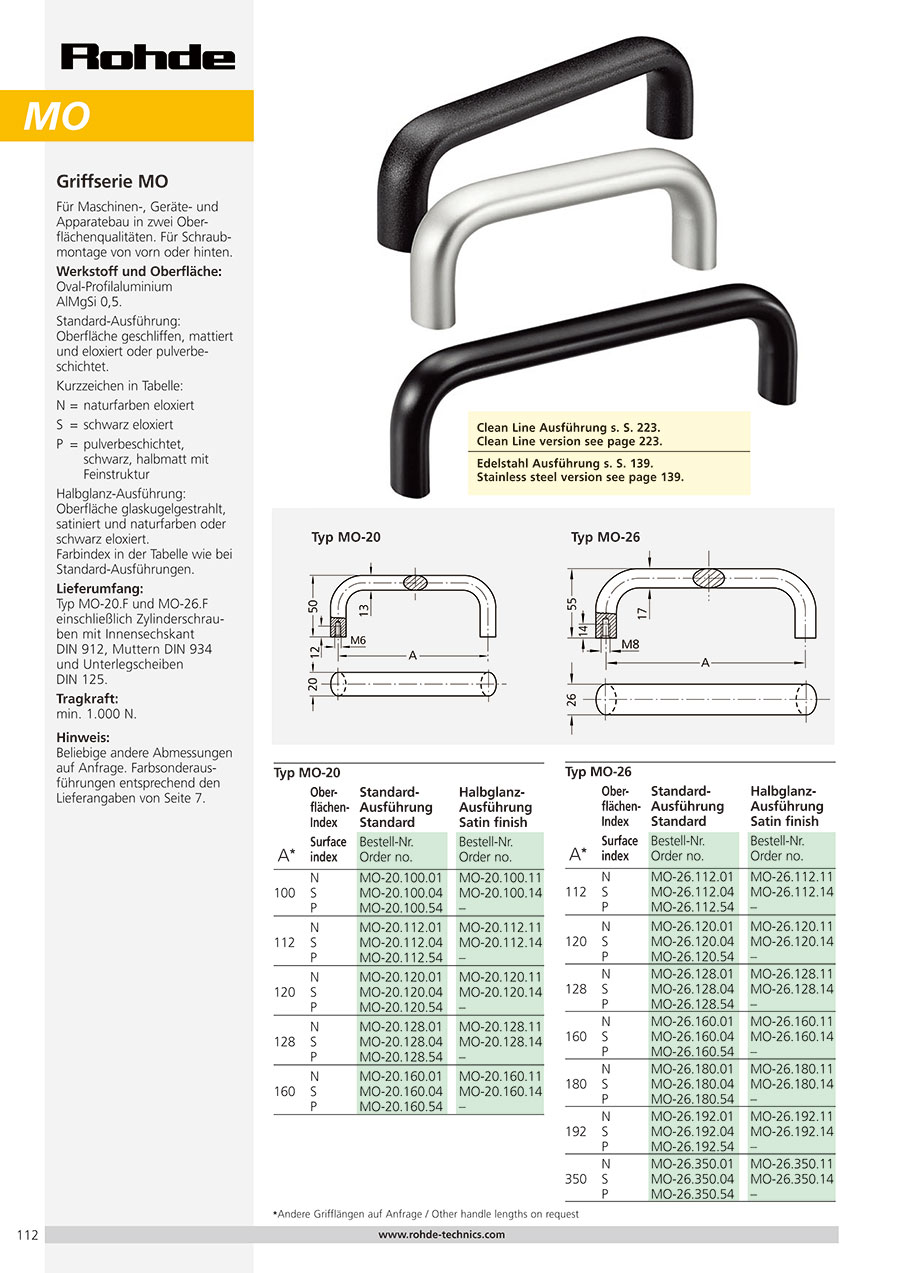

Aluminium bow type handle (MO)

Type MO-20 / MO-26

Type MO-20.F / MO-26.F

For mechanical, tool and apparatus engineering in 2 surface qualities. For front or rear screw mounting.

Oval-profiled aluminium AlMgSi 0.5.
Standard versions:
Surface ground and anodized with a matt finish or powder coated.
Abbreviations in table:
N = natural coloured anodized
S = black anodized
P = powder coated, black, half-matt with fine structure
Satin finish version:
Glass ball blasted and anodized in natural or black colour, satin finished.
Colour index of the table see standard versions.

Type MO-20.F and MO-26.F incl. cheese head screws with hexagon socket DIN 912, nuts DIN 934 and washers DIN 125.

min. 1.000 N.

Any specified dimensions available on request. Custom colours available in accordance with terms of delivery.

Type MO-20 Type MO-26 Type MO-20.F Type MO-26.F

Typ MO-20
		Standard	Satin finish
A*	Surface index	Order no.	Order no.
100	N	MO-20.100.01	MO-20.100.11
	S	MO-20.100.04	MO-20.100.14
	P	MO-20.100.54	–
112	N	MO-20.112.01	MO-20.112.11
	S	MO-20.112.04	MO-20.112.14
	P	MO-20.112.54	–
120	N	MO-20.120.01	MO-20.120.11
	S	MO-20.120.04	MO-20.120.14
	P	MO-20.120.54	–
128	N	MO-20.128.01	MO-20.128.11
	S	MO-20.128.04	MO-20.128.14
	P	MO-20.128.54	–
160	N	MO-20.160.01	MO-20.160.11
	S	MO-20.160.04	MO-20.160.14
	P	MO-20.160.54	–



Typ MO-26
		Standard	Satin finish
A*	Surface index	Order no.	Order no.
112	N	MO-26.112.01	MO-26.112.11
	S	MO-26.112.04	MO-26.112.14
	P	MO-26.112.54	–
120	N	MO-26.120.01	MO-26.120.11
	S	MO-26.120.04	MO-26.120.14
	P	MO-26.120.54	–
128	N	MO-26.128.01	MO-26.128.11
	S	MO-26.128.04	MO-26.128.14
	P	MO-26.128.54	–
160	N	MO-26.160.01	MO-26.160.11
	S	MO-26.160.04	MO-26.160.14
	P	MO-26.160.54	–
180	N	MO-26.180.01	MO-26.180.11
	S	MO-26.180.04	MO-26.180.14
	P	MO-26.180.54	–
192	N	MO-26.192.01	MO-26.192.11
	S	MO-26.192.04	MO-26.192.14
	P	MO-26.192.54	–
350	N	MO-26.350.01	MO-26.350.11
	S	MO-26.350.04	MO-26.350.14
	P	MO-26.350.54	–



Type MO-20.F
		Standard	Satin finish
A*	Surface index	Order no.	Order no.
100	N	MO-20.F100.01	MO-20.F100.11
	S	MO-20.F100.04	MO-20.F100.14
	P	MO-20.F100.54	–
112	N	MO-20.F112.01	MO-20.F112.11
	S	MO-20.F112.04	MO-20.F112.14
	P	MO-20.F112.54	–
120	N	MO-20.F120.01	MO-20.F120.11
	S	MO-20.F120.04	MO-20.F120.14
	P	MO-20.F120.54	–
128	N	MO-20.F128.01	MO-20.F128.11
	S	MO-20.F128.04	MO-20.F128.14
	P	MO-20.F128.54	–
160	N	MO-20.F160.01	MO-20.F160.11
	S	MO-20.F160.04	MO-20.F160.14
	P	MO-20.F160.54	–



Type MO-26.F
		Standard	Satin finish
A*	Surface index	Order no.	Order no.
112	N	MO-26.F112.01	MO-26.F112.11
	S	MO-26.F112.04	MO-26.F112.14
	P	MO-26.F112.54	–
120	N	MO-26.F120.01	MO-26.F120.11
	S	MO-26.F120.04	MO-26.F120.14
	P	MO-26.F120.54	–
128	N	MO-26.F128.01	MO-26.F128.11
	S	MO-26.F128.04	MO-26.F128.14
	P	MO-26.F128.54	–
160	N	MO-26.F160.01	MO-26.F160.11
	S	MO-26.F160.04	MO-26.F160.14
	P	MO-26.F160.54	–
180	N	MO-26.F180.01	MO-26.F180.11
	S	MO-26.F180.04	MO-26.F180.14
	P	MO-26.F180.54	–
192	N	MO-26.F192.01	MO-26.F192.11
	S	MO-26.F192.04	MO-26.F192.14
	P	MO-26.F192.54	–
350	N	MO-26.F350.01	MO-26.F350.11
	S	MO-26.F350.04	MO-26.F350.14
	P	MO-26.F350.54	–

*Other handle lengths on request.
All dimensions in mm.
