Bow type of round steel rod (ST)
Part number:
possible part numbers found.Product information

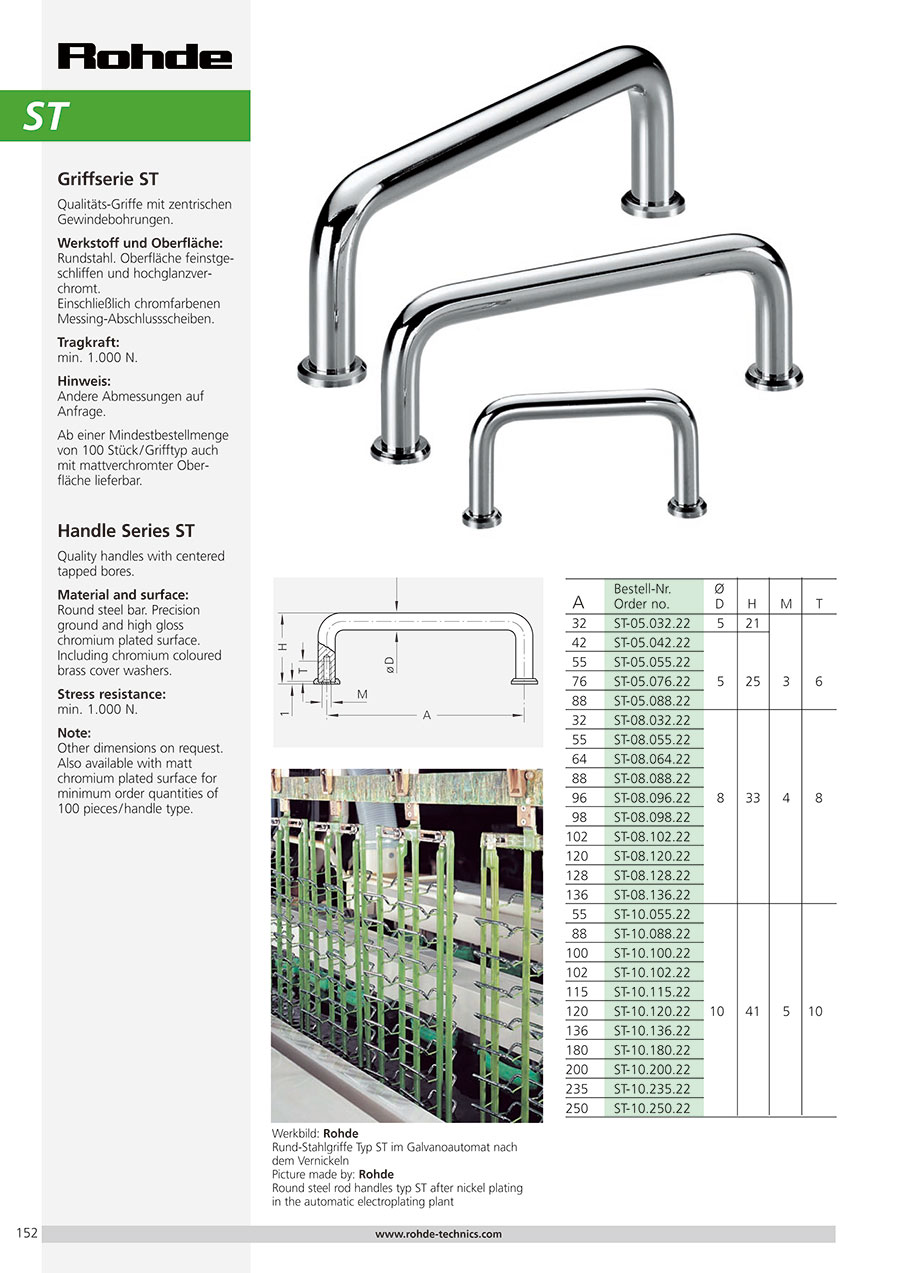

Handle Series ST
Product Description
Quality handles with centered tapped bores.
Material and surface
Round steel bar. Precision ground and high gloss chromium plated surface. Including chromium coloured brass cover washers.
Stress resistance:
min. 1.000 N.
Note
Other dimensions on request.
Also available with matt chromium plated surface for minimum order quantities of 100 pieces/handle type.
Also available with matt chromium plated surface for minimum order quantities of 100 pieces/handle type.
Drawing
Technical Data
| Ø | |||||
| A | Order no. | D | H | M | T |
| 32 | ST-05.032.22 | 5 | 21 | 3 | 6 |
| 42 | ST-05.042.22 | 5 | 25 | ||
| 55 | ST-05.055.22 | ||||
| 76 | ST-05.076.22 | ||||
| 88 | ST-05.088.22 | ||||
| 32 | ST-08.032.22 | 8 | 33 | 4 | 8 |
| 55 | ST-08.055.22 | ||||
| 64 | ST-08.064.22 | ||||
| 88 | ST-08.088.22 | ||||
| 96 | ST-08.096.22 | ||||
| 98 | ST-08.098.22 | ||||
| 102 | ST-08.102.22 | ||||
| 120 | ST-08.120.22 | ||||
| 128 | ST-08.128.22 | ||||
| 136 | ST-08.136.22 | ||||
| 55 | ST-10.055.22 | 10 | 41 | 5 | 10 |
| 88 | ST-10.088.22 | ||||
| 100 | ST-10.100.22 | ||||
| 102 | ST-10.102.22 | ||||
| 115 | ST-10.115.22 | ||||
| 120 | ST-10.120.22 | ||||
| 136 | ST-10.136.22 | ||||
| 180 | ST-10.180.22 | ||||
| 200 | ST-10.200.22 | ||||
| 235 | ST-10.235.22 | ||||
| 250 | ST-10.250.22 |
Application Example
Round steel rod handles type ST after nickel plating in the automatic electroplating plant
Part number list
Number of items
| Part number |
|---|
| Order suspended |
| Order suspended |
| Order suspended |
| Order suspended |
| Order suspended |
| Order suspended |
| Order suspended |
| Order suspended |
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
6.70 € ( 7.97 € ) | 5 working days |
6.70 € ( 7.97 € ) | 5 working days |
6.70 € ( 7.97 € ) | 5 working days |
6.70 € ( 7.97 € ) | 20 working days |
6.70 € ( 7.97 € ) | 5 working days |
6.70 € ( 7.97 € ) | 5 working days |
6.70 € ( 7.97 € ) | 5 working days |
6.70 € ( 7.97 € ) | 5 working days |
6.70 € ( 7.97 € ) | 5 working days |
6.70 € ( 7.97 € ) | 5 working days |
6.70 € ( 7.97 € ) | 5 working days |
6.70 € ( 7.97 € ) | 39 working days |
6.98 € ( 8.31 € ) | 5 working days |
7.16 € ( 8.52 € ) | 5 working days |
7.32 € ( 8.71 € ) | 5 working days |
7.02 € ( 8.35 € ) | 5 working days |
7.02 € ( 8.35 € ) | 5 working days |
7.02 € ( 8.35 € ) | 5 working days |
7.02 € ( 8.35 € ) | 5 working days |
7.16 € ( 8.52 € ) | 5 working days |
7.26 € ( 8.64 € ) | 13 working days |
7.82 € ( 9.31 € ) | 5 working days |
8.92 € ( 10.61 € ) | 5 working days |
9.34 € ( 11.11 € ) | 5 working days |
10.22 € ( 12.16 € ) | 5 working days |
10.58 € ( 12.59 € ) | 5 working days |
More Information
Basic information
Round steel bar. Precision ground and high gloss chromium plated surface. Including chromium coloured brass cover washers.
