Industrial Gas Springs
Click image to view enlarged image
Part number:
possible part numbers found.Product information

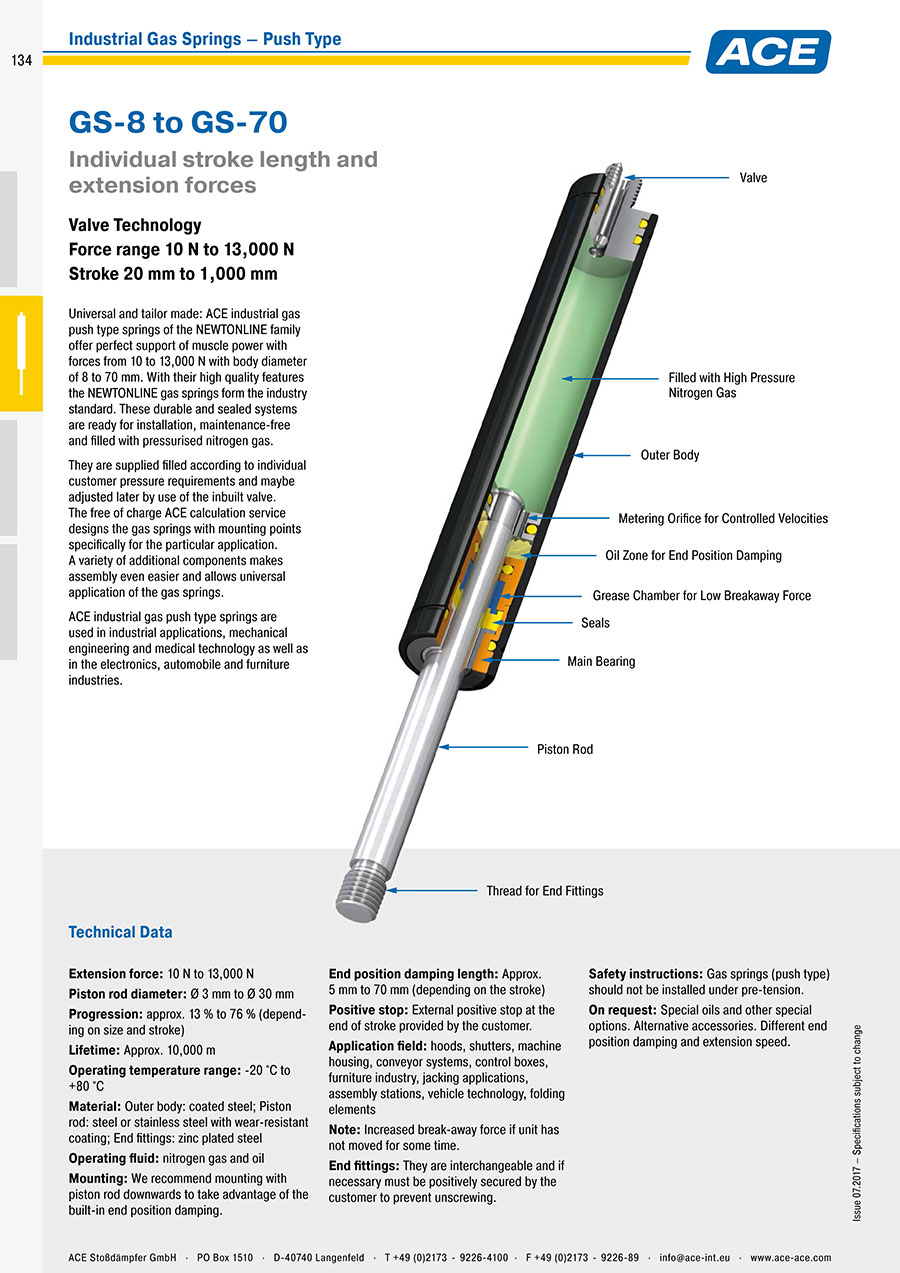

GS-8 to GS-70 Individual Stroke Length and Extension Forces
Product Description
Valve Technology
Force range 10 N to 13,000 N
Stroke 20 mm to 1,000 mm
Universal and tailor made: ACE industrial gas push type springs of the NEWTONLINE family offer perfect support of muscle power with forces from 10 to 13,000 N with body diameter of 8 to 70 mm. With their high quality features the NEWTONLINE gas springs form the industry standard. These durable and sealed systems are ready for installation, maintenance-free and filled with pressurised nitrogen gas.
They are supplied fi lled according to individual customer pressure requirements and maybe adjusted later by use of the inbuilt valve. The free of charge ACE calculation service designs the gas springs with mounting points specifically for the particular application. A variety of additional components makes assembly even easier and allows universal application of the gas springs.
ACE industrial gas push type springs are used in industrial applications, mechanical engineering and medical technology as well as in the electronics, automobile and furniture industries
Force range 10 N to 13,000 N
Stroke 20 mm to 1,000 mm
Universal and tailor made: ACE industrial gas push type springs of the NEWTONLINE family offer perfect support of muscle power with forces from 10 to 13,000 N with body diameter of 8 to 70 mm. With their high quality features the NEWTONLINE gas springs form the industry standard. These durable and sealed systems are ready for installation, maintenance-free and filled with pressurised nitrogen gas.
They are supplied fi lled according to individual customer pressure requirements and maybe adjusted later by use of the inbuilt valve. The free of charge ACE calculation service designs the gas springs with mounting points specifically for the particular application. A variety of additional components makes assembly even easier and allows universal application of the gas springs.
ACE industrial gas push type springs are used in industrial applications, mechanical engineering and medical technology as well as in the electronics, automobile and furniture industries
Technical Data
• Extension force: 10 N to 13,000 N
• Piston rod diameter: Ø 3 mm to Ø 30 mm
• Progression: approx. 13 % to 76 % (depending on size and stroke)
• Lifetime: Approx. 10,000 m
• Operating temperature range: -20 °C to +80 °C
• Material: Outer body: coated steel; Piston rod: steel or stainless steel with wear-resistant coating; End fittings: zinc plated steel
• Operating fluid: nitrogen gas and oil
• Mounting: We recommend mounting with piston rod downwards to take advantage of the built-in end position damping.
• End position damping length: Approx. 5 mm to 70 mm (depending on the stroke)
• Positive stop: External positive stop at the end of stroke provided by the customer.
• Application field: hoods, shutters, machine housing, conveyor systems, control boxes, furniture industry, jacking applications, assembly stations, vehicle technology, folding elements
• Note: Increased break-away force if unit has not moved for some time.
• End fittings: They are interchangeable and if necessary must be positively secured by the customer to prevent unscrewing.
• Safety instructions: Gas springs (push type) should not be installed under pre-tension.
• On request: Special oils and other special options. Alternative accessories. Different end position damping and extension speed.
• Piston rod diameter: Ø 3 mm to Ø 30 mm
• Progression: approx. 13 % to 76 % (depending on size and stroke)
• Lifetime: Approx. 10,000 m
• Operating temperature range: -20 °C to +80 °C
• Material: Outer body: coated steel; Piston rod: steel or stainless steel with wear-resistant coating; End fittings: zinc plated steel
• Operating fluid: nitrogen gas and oil
• Mounting: We recommend mounting with piston rod downwards to take advantage of the built-in end position damping.
• End position damping length: Approx. 5 mm to 70 mm (depending on the stroke)
• Positive stop: External positive stop at the end of stroke provided by the customer.
• Application field: hoods, shutters, machine housing, conveyor systems, control boxes, furniture industry, jacking applications, assembly stations, vehicle technology, folding elements
• Note: Increased break-away force if unit has not moved for some time.
• End fittings: They are interchangeable and if necessary must be positively secured by the customer to prevent unscrewing.
• Safety instructions: Gas springs (push type) should not be installed under pre-tension.
• On request: Special oils and other special options. Alternative accessories. Different end position damping and extension speed.
GS-8
Performance and Dimensions
Technical Data
 | • Extension force: 10 N to 100 N (compressed up to 133 N) • Progression: Approx. 29 % to 33 % • Operating temperature range: -20 °C to +80 °C • Material: Outer body: coated steel; Piston rod: stainless steel (1.4301/1.4305, AISI 304/303); End fittings: zinc plated steel • Mounting: We recommend mounting with piston rod downwards to take advantage of the built-in end position damping. • End position damping length: approx. 5 mm (depending on the stroke) • Positive stop: External positive stop at the end of stroke provided by the customer. • Note: Increased break-away force if unit has not moved for some time. • End fittings: They are interchangeable and if necessary must be positively secured by the customer to prevent unscrewing. • Safety instructions: Gas springs (push type) should not be installed under pre-tension. |
GS-10
Performance and Dimensions
Technical Data
 | • Extension force: 10 N to 100 N (compressed up to 116 N) • Progression: Approx. 13 % to 16 % • Operating temperature range: -20 °C to +80 °C • Material: Outer body: coated steel; Piston rod: stainless steel (1.4301/1.4305, AISI 304/303); End fittings: zinc plated steel • Mounting: We recommend mounting with piston rod downwards to take advantage of the built-in end position damping. • End position damping length: approx. 5 mm (depending on the stroke) • Positive stop: External positive stop at the end of stroke provided by the customer. • Note: Increased break-away force if unit has not moved for some time. • End fittings: They are interchangeable and if necessary must be positively secured by the customer to prevent unscrewing. • Safety instructions: Gas springs (push type) should not be installed under pre-tension. |
GS-12
Performance and Dimensions
Technical Data
 | • Extension force: 15 N to 180 N (compressed up to 243 N) • Progression: Approx. 20 % to 35 % • Operating temperature range: -20 °C to +80 °C • Material: Outer body: coated steel; Piston rod: stainless steel (1.4301/1.4305, AISI 304/303); End fittings: zinc plated steel • Mounting: We recommend mounting with piston rod downwards to take advantage of the built-in end position damping. • End position damping length: approx. 10 mm (depending on the stroke) • Positive stop: External positive stop at the end of stroke provided by the customer. • Note: Increased break-away force if unit has not moved for some time. • End fittings: They are interchangeable and if necessary must be positively secured by the customer to prevent unscrewing. • Safety instructions: Gas springs (push type) should not be installed under pre-tension. |
GS-15
Performance and Dimensions
Technical Data
 | • Extension force: 40 N to 400 N (compressed up to 560 N) • Progression: Approx. 30 % to 40 % • Operating temperature range: -20 °C to +80 °C • Material: Outer body: steel coated with UV paint; Piston rod: steel with wear-resistant coating; End fittings: zinc plated steel • Mounting: We recommend mounting with piston rod downwards to take advantage of the built-in end position damping. • End position damping length: approx. 10 mm (depending on the stroke) • Positive stop: External positive stop at the end of stroke provided by the customer. • Note: Increased break-away force if unit has not moved for some time. • End fittings: They are interchangeable and if necessary must be positively secured by the customer to prevent unscrewing. • Safety instructions: Gas springs (push type) should not be installed under pre-tension. |
GS-19
Performance and Dimensions
Technical Data
 | • Extension force: 50 N to 700 N (compressed up to 945 N) • Progression: Approx. 24 % to 35 % • Operating temperature range: -20 °C to +80 °C • Material: Outer body: steel coated with UV paint; Piston rod: steel with wear-resistant coating; End fittings: zinc plated steel • Mounting: In any position. Hint: We recommend mounting with piston rod downwards to take advantage of the built-in end position damping. • End position damping length: approx. 20 mm to 60 mm (depending on the stroke) • Positive stop: External positive stop at the end of stroke provided by the customer. • Note: Integrated grease chamber reduces friction and wear and optimises lubrication. • End fittings: They are interchangeable and if necessary must be positively secured by the customer to prevent unscrewing. • Safety instructions: Gas springs (push type) should not be installed under pre-tension. |
GS-22
Performance and Dimensions
Technical Data
 | • Extension force: 80 N to 1,300 N (compressed up to 1,820 N) • Progression: Approx. 30 % to 40 % • Operating temperature range: -20 °C to +80 °C • Material: Outer body: steel coated with UV paint; Piston rod: steel with wear-resistant coating; End fittings: zinc plated steel • Mounting: In any position. Hint: We recommend mounting with piston rod downwards to take advantage of the built-in end position damping. • End position damping length: approx. 20 mm to 70 mm (depending on the stroke) • Positive stop: External positive stop at the end of stroke provided by the customer. • Note: Integrated grease chamber reduces friction and wear and optimises lubrication. • End fittings: They are interchangeable and if necessary must be positively secured by the customer to prevent unscrewing. • Safety instructions: Gas springs (push type) should not be installed under pre-tension. |
GS-28
Performance and Dimensions
Technical Data
 | • Extension force: 150 N to 2,500 N (compressed up to 4,400 N) • Progression: Approx. 63 % to 76 % • Operating temperature range: -20 °C to +80 °C • Material: Outer body: steel coated with UV paint; Piston rod: steel with wear-resistant coating; End fittings: zinc plated steel • Mounting: In any position. Hint: We recommend mounting with piston rod downwards to take advantage of the built-in end position damping. • End position damping length: approx. 30 mm to 70 mm (depending on the stroke) • Positive stop: External positive stop at the end of stroke provided by the customer. • Note: Integrated grease chamber reduces friction and wear and optimises lubrication. • End fittings: They are interchangeable and if necessary must be positively secured by the customer to prevent unscrewing. • Safety instructions: Gas springs (push type) should not be installed under pre-tension. |
GS-40
Performance and Dimensions
Technical Data
 | • Extension force: 500 N to 5,000 N (compressed up to 7,500 N) • Progression: Approx. 38 % to 50 % • Operating temperature range: -20 °C to +80 °C • Material: Outer body: steel coated with UV paint; Piston rod: steel with wear-resistant coating; End fittings: zinc plated steel Mounting: In any position. Hint: We recommend mounting with piston rod downwards to take advantage of the built-in end position damping. • End position damping length: approx. 30 mm to 70 mm (depending on the stroke) • Positive stop: External positive stop at the end of stroke provided by the customer. • Note: Integrated grease chamber reduces friction and wear and optimises lubrication. • End fittings: They are interchangeable and if necessary must be positively secured by the customer to prevent unscrewing. • Safety instructions: Gas springs (push type) should not be installed under pre-tension. |
GS-70
Performance and Dimensions
Technical Data
 | • Extension force: 2,000 N to 13,000 N (compressed up to 16,250 N) • Progression: Approx. 25 % • Operating temperature range: -20 °C to +80 °C • Material: Outer body: coated steel; Piston rod: hard chrome plated steel; End fittings: zinc plated steel • Mounting: In any position. Hint: We recommend mounting with piston rod downwards to take advantage of the built-in end position damping. • End position damping length: approx. 10 mm to 20 mm (depending on the stroke) • Positive stop: External positive stop at the end of stroke provided by the customer. • Note: Increased break-away force if unit has not moved for some time. • End fittings: They are interchangeable and if necessary must be positively secured by the customer to prevent unscrewing. • Safety instructions: Gas springs (push type) should not be installed under pre-tension. |
GS-8-V4A to GS-40-VA With Food Grade Oil According to FDA Approval
Product Description
Valve Technology, Stainless Steel
Force range 10 N to 5,000 N
Stroke 20 mm to 700 mm
Protection against corrosion and superior optics for even more sophisticated requirements: Based on ACE‘s industrial gas push type springs GS-8 to 40 made of steel, these models combine all advantages of stainless steel: they look great and are rust free. They are filled with food-grade oil as standard, which conforms to the requirements of FDA 21 CFR 178.3570.
These ACE gas push type springs do not only look good, they also are available in various stroke lengths and possible extension forces. A comprehensive range of accessories in stainless steel guarantees easy assembly and a broad range of uses.
ACE industrial gas pressure springs made of stainless steel are used in the automotive sector, in industrial applications, mechanical engineering and medical cleanroom technology as well as in the food, electronics and shipbuilding industries.
Force range 10 N to 5,000 N
Stroke 20 mm to 700 mm
Protection against corrosion and superior optics for even more sophisticated requirements: Based on ACE‘s industrial gas push type springs GS-8 to 40 made of steel, these models combine all advantages of stainless steel: they look great and are rust free. They are filled with food-grade oil as standard, which conforms to the requirements of FDA 21 CFR 178.3570.
These ACE gas push type springs do not only look good, they also are available in various stroke lengths and possible extension forces. A comprehensive range of accessories in stainless steel guarantees easy assembly and a broad range of uses.
ACE industrial gas pressure springs made of stainless steel are used in the automotive sector, in industrial applications, mechanical engineering and medical cleanroom technology as well as in the food, electronics and shipbuilding industries.
Technical Data
• Extension force: 10 N to 5,000 N
• Piston rod diameter: Ø 3 mm to Ø 20 mm
• Progression: approx. 13 % to 59 % (depending on size and stroke)
• Lifetime: Approx. 10.000 m
• Operating temperature range: -20 °C to +80 °C
• Material: Outer body, Piston rod, End fittings: stainless steel (1.4301/1.4305, AISI 304/303 and 1.4404/1.4571, AISI 316L/316Ti)
• Operating fluid: nitrogen gas and HLP oil according to DIN 51524, part 2
• Mounting: We recommend mounting with piston rod downwards to take advantage of the built-in end position damping.
• End position damping length: Approx. 5 mm to 30 mm (depending on the stroke)
• Positive stop: External positive stop at the end of stroke provided by the customer.
• Application field: hoods, shutters, machine housing, conveyor systems, control boxes, furniture industry, shipbuilding, food industry, pharmaceutical industry, folding elements
• Note: Special oil according to FDA 21 CFR 178.3570 of the food industry
• End fittings: They are interchangeable and if necessary must be positively secured by the customer to prevent unscrewing.
• Safety instructions: Gas pressure springs should not be installed under pre-tension.
• On request: Special oils and other special options. Alternative accessories. Different end position damping and extension speed. Other gas springs material 1.4404/1.4571, AISI 316L/316Ti (V4A) available on request.
• Piston rod diameter: Ø 3 mm to Ø 20 mm
• Progression: approx. 13 % to 59 % (depending on size and stroke)
• Lifetime: Approx. 10.000 m
• Operating temperature range: -20 °C to +80 °C
• Material: Outer body, Piston rod, End fittings: stainless steel (1.4301/1.4305, AISI 304/303 and 1.4404/1.4571, AISI 316L/316Ti)
• Operating fluid: nitrogen gas and HLP oil according to DIN 51524, part 2
• Mounting: We recommend mounting with piston rod downwards to take advantage of the built-in end position damping.
• End position damping length: Approx. 5 mm to 30 mm (depending on the stroke)
• Positive stop: External positive stop at the end of stroke provided by the customer.
• Application field: hoods, shutters, machine housing, conveyor systems, control boxes, furniture industry, shipbuilding, food industry, pharmaceutical industry, folding elements
• Note: Special oil according to FDA 21 CFR 178.3570 of the food industry
• End fittings: They are interchangeable and if necessary must be positively secured by the customer to prevent unscrewing.
• Safety instructions: Gas pressure springs should not be installed under pre-tension.
• On request: Special oils and other special options. Alternative accessories. Different end position damping and extension speed. Other gas springs material 1.4404/1.4571, AISI 316L/316Ti (V4A) available on request.
GS-8-V4A
Performance and Dimensions
Technical Data
 | • Extension force: 10 N to 100 N (compressed up to 131 N) • Progression: Approx. 28 % to 31 % • Operating temperature range: -20 °C to +80 °C • Material: Outer body, Piston rod, End fittings: stainless steel (1.4404/1.4571, AISI 316L/316Ti) • Mounting: We recommend mounting with piston rod downwards to take advantage of the built-in end position damping. • End position damping length: approx. 5 mm (depending on the stroke) • Positive stop: External positive stop at the end of stroke provided by the customer. • Note: Special oil according to FDA 21 CFR 178.3570 of the food industry • End fittings: They are interchangeable and if necessary must be positively secured by the customer to prevent unscrewing. • Safety instructions: Gas pressure springs should not be installed under pre-tension. |
GS-10-V4A
Performance and Dimensions
Technical Data
 | • Extension force: 10 N to 100 N (compressed up to 116 N) • Progression: Approx. 13 % to 16 % • Operating temperature range: -20 °C to +80 °C • Material: Outer body, Piston rod, End fittings: stainless steel (1.4404/1.4571, AISI 316L/316Ti) • Mounting: We recommend mounting with piston rod downwards to take advantage of the built-in end position damping. • End position damping length: approx. 5 mm (depending on the stroke) • Positive stop: External positive stop at the end of stroke provided by the customer. • Note: Special oil according to FDA 21 CFR 178.3570 of the food industry • End fittings: They are interchangeable and if necessary must be positively secured by the customer to prevent unscrewing. • Safety instructions: Gas pressure springs should not be installed under pre-tension. |
GS-12-V4A
Performance and Dimensions
Technical Data
 | • Extension force: 15 N to 180 N (compressed up to 225 N) • Progression: Approx. 20 % to 25 % • Operating temperature range: -20 °C to +80 °C • Material: Outer body, Piston rod, End fittings: stainless steel (1.4404/1.4571, AISI 316L/316Ti) • Mounting: We recommend mounting with piston rod downwards to take advantage of the built-in end position damping. • End position damping length: approx. 10 mm (depending on the stroke) • Positive stop: External positive stop at the end of stroke provided by the customer. • Note: Special oil according to FDA 21 CFR 178.3570 of the food industry • End fittings: They are interchangeable and if necessary must be positively secured by the customer to prevent unscrewing. • Safety instructions: Gas pressure springs should not be installed under pre-tension. |
GS-15-V4A
Performance and Dimensions
Technical Data
 | • Extension force: 40 N to 400 N (compressed up to 612 N) • Progression: Approx. 30 % to 53 % • Operating temperature range: -20 °C to +80 °C • Material: Outer body, Piston rod, End fittings: stainless steel (1.4301/1.4305, AISI 304/303) • Mounting: We recommend mounting with piston rod downwards to take advantage of the built-in end position damping. • End position damping length: approx. 20 mm (depending on the stroke) • Positive stop: External positive stop at the end of stroke provided by the customer. • Note: Special oil according to FDA 21 CFR 178.3570 of the food industry • End fittings: They are interchangeable and if necessary must be positively secured by the customer to prevent unscrewing. • Safety instructions: Gas pressure springs should not be installed under pre-tension. |
GS-19-V4A
Performance and Dimensions
Technical Data
 | • Extension force: 50 N to 700 N (compressed up to 924 N) • Progression: Approx. 28 % to 32 % • Operating temperature range: -20 °C to +80 °C • Material: Outer body, Piston rod, End fittings: stainless steel (1.4301/1.4305, AISI 304/303) • Mounting: We recommend mounting with piston rod downwards to take advantage of the built-in end position damping. • End position damping length: approx. 20 mm (depending on the stroke) • Positive stop: External positive stop at the end of stroke provided by the customer. • Note: Special oil according to FDA 21 CFR 178.3570 of the food industry • End fittings: They are interchangeable and if necessary must be positively secured by the customer to prevent unscrewing. • Safety instructions: Gas pressure springs should not be installed under pre-tension. |
GS-22-V4A
Performance and Dimensions
Technical Data
 | • Extension force: 100 N to 1,200 N (compressed up to 1,596 N) • Progression: Approx. 29 % to 33 % • Operating temperature range: -20 °C to +80 °C • Material: Outer body, Piston rod, End fittings: stainless steel (1.4301/1.4305, AISI 304/303) • Mounting: We recommend mounting with piston rod downwards to take advantage of the built-in end position damping. • End position damping length: approx. 20 mm (depending on the stroke) • Positive stop: External positive stop at the end of stroke provided by the customer. • Note: Special oil according to FDA 21 CFR 178.3570 of the food industry • End fittings: They are interchangeable and if necessary must be positively secured by the customer to prevent unscrewing. • Safety instructions: Gas pressure springs should not be installed under pre-tension. |
GS-28-V4A
Performance and Dimensions
Technical Data
 | • Extension force: 150 N to 2,500 N (compressed up to 3,975 N) • Progression: Approx. 53 % to 59 % • Operating temperature range: -20 °C to +80 °C • Material: Outer body, Piston rod, End fittings: stainless steel (1.4301/1.4305, AISI 304/303) • Mounting: We recommend mounting with piston rod downwards to take advantage of the built-in end position damping. • End position damping length: approx. 20 mm (depending on the stroke) • Positive stop: External positive stop at the end of stroke provided by the customer. • Note: Special oil according to FDA 21 CFR 178.3570 of the food industry • End fittings: They are interchangeable and if necessary must be positively secured by the customer to prevent unscrewing. • Safety instructions: Gas pressure springs should not be installed under pre-tension. |
Part number list
| Part number |
|---|
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
- ( - ) | 5 working days |
- ( - ) | 10 working days |
- ( - ) | 5 working days |
- ( - ) | 10 working days |
- ( - ) | 5 working days |
- ( - ) | 10 working days |
- ( - ) | 5 working days |
- ( - ) | 10 working days |
- ( - ) | 5 working days |
- ( - ) | 10 working days |
- ( - ) | 5 working days |
- ( - ) | 10 working days |
- ( - ) | 5 working days |
- ( - ) | 5 working days |
- ( - ) | 5 working days |
- ( - ) | 5 working days |
- ( - ) | 5 working days |
- ( - ) | 5 working days |
- ( - ) | 5 working days |
- ( - ) | 5 working days |
- ( - ) | 5 working days |
- ( - ) | 5 working days |
- ( - ) | 5 working days |
- ( - ) | 5 working days |
- ( - ) | 5 working days |
- ( - ) | 5 working days |
- ( - ) | 5 working days |
- ( - ) | 5 working days |
- ( - ) | 5 working days |
- ( - ) | 5 working days |
- ( - ) | 5 working days |
- ( - ) | 5 working days |
- ( - ) | 5 working days |
- ( - ) | 5 working days |
- ( - ) | 5 working days |
- ( - ) | 5 working days |
- ( - ) | 5 working days |
- ( - ) | 5 working days |
- ( - ) | 5 working days |
- ( - ) | 5 working days |
- ( - ) | 5 working days |
- ( - ) | 5 working days |
- ( - ) | 5 working days |
- ( - ) | 5 working days |
- ( - ) | 5 working days |
- ( - ) | 5 working days |
- ( - ) | 5 working days |
- ( - ) | 5 working days |
- ( - ) | 5 working days |
- ( - ) | 5 working days |
- ( - ) | 5 working days |
- ( - ) | 5 working days |
- ( - ) | 5 working days |
- ( - ) | 5 working days |
- ( - ) | 5 working days |
- ( - ) | 5 working days |
- ( - ) | 5 working days |
- ( - ) | 5 working days |
- ( - ) | 5 working days |
- ( - ) | 5 working days |
More Information
Basic information
ACE Industrial Gas Springs - Push Type of the NEWTONLINE series with end position damping offer perfect support of muscle power. They are: ready for installation, maintenance-free and durable. The force is filled individually via the built-in valve according to the customer's requirements. Universally applicable due to the large number of attachments.
