TUENKERS

Compact Rotary Table

Compact Rotary Table

Part number:

Still undefined. 6 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    TSA 200-2-300-3-D-GRS-AB-A-D-E-17-E
    TSA 200-4-270-7-D-GRS-AB-A-D-E-17-E
    TSA 300-2-300-7-D-GRS-AB-A-D-E-17-E
    TSA 300-4-315-2-D-GRS-AB-A-D-E-17-E
    TSA 400-2-330-7-D-GRS-AB-A-D-E-17-E
    TSA 400-4-300-7-D-GRS-AB-A-D-E-17-E

    Plate diam.

    (mm)

    Weight

    (g)

    Stops

    Repeatability

    (mm)

    Indexing accuracy

    (mm)

    max. load axial

    (N)

    max. tilting torque

    (Nm)

    max. load radial

    (N)

    Weight with motorization

    (kg)

    		Minimum order quantity
    160
    2500
    2
    ±0.01 on Rs = 52.5 mm
    ±0.02 on Rs = 52.5 mm
    7500
    250
    2500
    25
    1 pieces
    160
    2500
    4
    ±0.01 on Rs = 52.5 mm
    ±0.02 on Rs = 52.5 mm
    7500
    250
    2500
    25
    1 pieces
    215
    5000
    2
    ±0.01 on Rs = 75 mm
    ±0.02 on Rs = 75 mm
    10000
    300
    3500
    50
    1 pieces
    215
    5000
    4
    ±0.01 on Rs = 75 mm
    ±0.02 on Rs = 75 mm
    10000
    300
    3500
    50
    1 pieces
    250
    8000
    2
    ±0.01 on Rs = 100 mm
    ±0.02 on Rs = 100 mm
    15000
    1000
    5000
    80
    1 pieces
    250
    8000
    4
    ±0.01 on Rs = 100 mm
    ±0.02 on Rs = 100 mm
    15000
    1000
    5000
    80
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    2,666.66 €
    ( 3,173.33 € )
    30 working days
    2,666.66 €
    ( 3,173.33 € )
    30 working days
    3,166.66 €
    ( 3,768.33 € )
    30 working days
    3,166.66 €
    ( 3,768.33 € )
    30 working days
    3,883.33 €
    ( 4,621.16 € )
    30 working days
    3,883.33 €
    ( 4,621.16 € )
    30 working days
  • 1

    • More Information

    Basic information

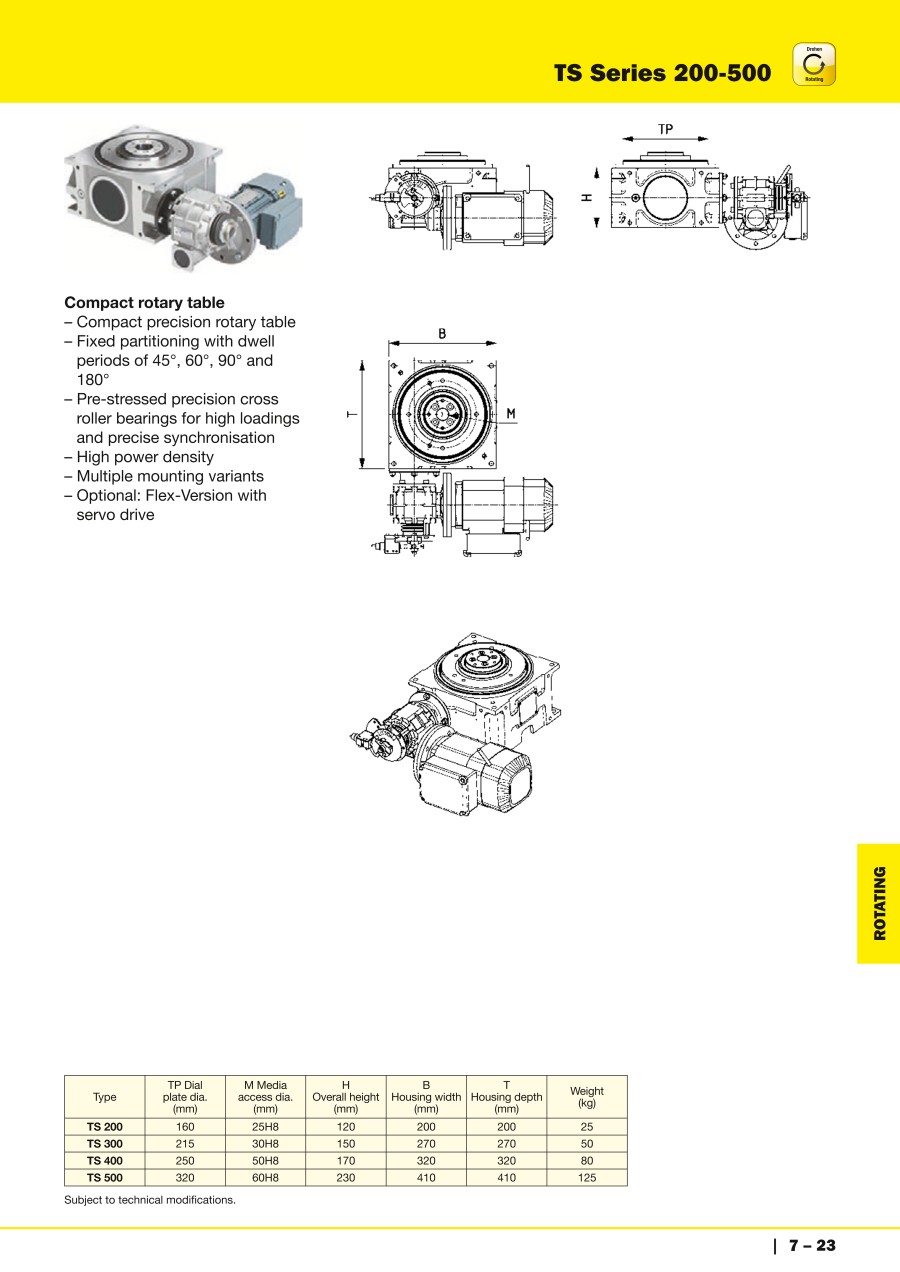

    Conpact precision rotary table, TP DIAL plate
