Horizontal Hold Down Clamps 245
- Volume Discount

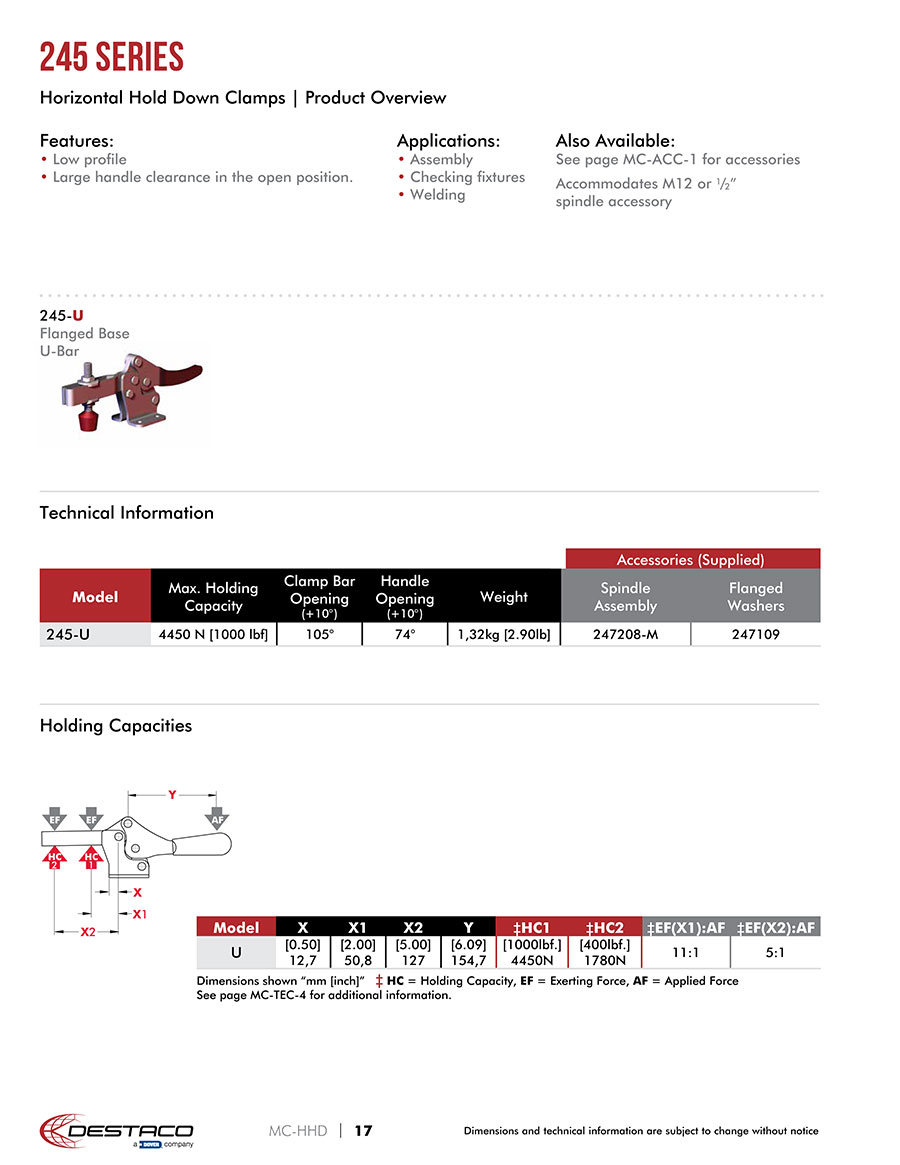

Destaco’s 245 Series horizontal hold down clamps feature a low profile and optimal handle clearance in the open position. These clamps are used in assembly, fixture checking, and welding.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
245-U
Basic information
| Base mounting style | Flange Base | Max. holding capacity(N) | 4450 | Body Material | Steel |
|---|---|---|---|---|---|
| Height under clamp arm(mm) | 55.6 | Clamp arm length(mm) | 124 | Clamp bar opening (+10°)(°) | 105 |
| Handle opening (+10°)(°) | 74 | Toggle lock plus | No | Clamp arm style | U-Bar |
| Handle | Horizontal |
This page is Horizontal Hold Down Clamps 245, part number 245-U.
You can find the detail information about specifications and dimensions on part number 245-U.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
