Pull Action Latch Clamps 330, 351, 371 and 381

Pull Action Latch Clamps 330, 351, 371 and 381

Click on this image to zoom in.

Click on this image to zoom in.

  • Volume Discount

DESTACO

DESTACO

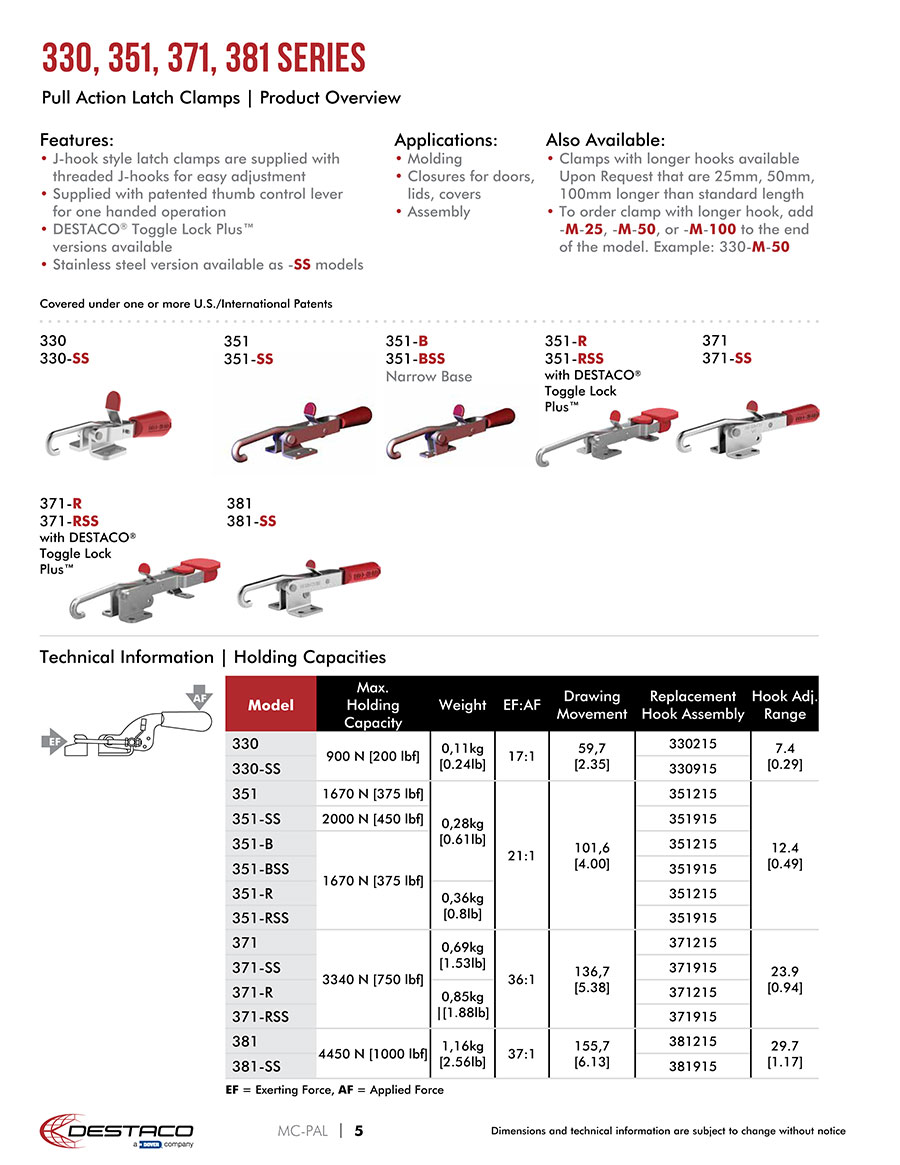

Destaco’s 330, 351, 371 and 381 Series pull action latch clamps are equipped with patented thumb control lever for one handed operation. These J-Hook style latch clamps are supplied with threaded J-Hooks for easy adjustment. Destaco® Toggle Lock Plus™ and stainless steel versions available. Common applications and uses include - molding, assembly, and closures for doors, lids, or covers.

Data sheet

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.


Data to be displayed
30
45
60
  1. 1
Part Number
330
330-M-25
330-M-100
330-SS
330-SS-M-50
351
351-B
351-B-M-25
351-B-M-50
351-B-M-100
351-BSS
351-BSS-M-25
351-BSS-M-100
351-M-25
351-M-50
351-M-100
351-R
351-R-M-25
351-R-M-50
351-R-M-100
351-SS
351-SS-M-25
351-SS-M-50
351-SS-M-100
371
371-M-25
371-M-50
371-M-100
371-R
371-R-M-25
371-R-M-50
371-R-M-100
371-SS
381
381-M-25
381-M-100
381-SS
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
Max. holding capacity
(N) 		Body Material Base mounting style (details) Drawing movement
(mm) 		Toggle lock plus
(mm) 		Hook adjustble range
(mm) 		Optional longer hook length
(mm)

39.32 €

1 Available 15 Days 900SteelFlange59.7No7.4None

51.31 €

1 Available 20 Days 900SteelFlange59.7No7.425

60.74 €

1 Available 20 Days 900SteelFlange59.7No7.4100

80.43 €

1 Available 15 Days 900Stainless SteelFlange59.7No7.4None

112.54 €

1 Available 30 Days 900Stainless SteelFlange59.7No7.450

41.29 €

1 Available 15 Days 1670SteelFlange101.6No12.4None

44.06 €

1 Available 20 Days 1670SteelNarrow Flange101.6No12.4None

66.80 €

1 Available 20 Days 1670SteelNarrow Flange101.6No12.425

64.73 €

1 Available 20 Days 1670SteelNarrow Flange101.6No12.450

62.00 €

1 Available 20 Days 1670SteelNarrow Flange101.6No12.4100

72.81 €

1 Available 20 Days 1670Stainless SteelNarrow Flange101.6No12.4None

103.69 €

1 Available 30 Days 1670Stainless SteelNarrow Flange101.6No12.425

104.37 €

1 Available 30 Days 1670Stainless SteelNarrow Flange101.6No12.4100

57.23 €

1 Available 20 Days 1670SteelFlange101.6No12.425

60.69 €

1 Available 20 Days 1670SteelFlange101.6No12.450

70.02 €

1 Available 20 Days 1670SteelFlange101.6No12.4100

73.57 €

1 Available 15 Days 1670SteelFlange101.6Yes12.4None

84.30 €

1 Available 20 Days 1670SteelFlange101.6Yes12.425

96.17 €

1 Available 20 Days 1670SteelFlange101.6Yes12.450

108.70 €

1 Available 20 Days 1670SteelFlange101.6Yes12.4100

71.54 €

1 Available 30 Days 2000Stainless SteelFlange101.6No12.4None

87.29 €

1 Available 30 Days 1670Stainless SteelFlange101.6No12.425

99.49 €

1 Available 30 Days 1670Stainless SteelFlange101.6No12.450

100.46 €

1 Available 30 Days 1670Stainless SteelFlange101.6No12.4100

67.59 €

1 Available 30 Days 3340SteelFlange136.7No23.9None

91.64 €

1 Available 30 Days 3340SteelFlange136.7No23.925

95.16 €

1 Available 30 Days 3340SteelFlange136.7No23.950

98.58 €

1 Available 30 Days 3340SteelFlange136.7No23.9100

230.95 €

1 Available 30 Days 3340SteelFlange136.7Yes23.9None

268.33 €

1 Available 30 Days 3340SteelFlange136.7Yes23.925

296.50 €

1 Available 30 Days 3340SteelFlange136.7Yes23.950

300.31 €

1 Available 30 Days 3340SteelFlange136.7Yes23.9100

179.08 €

1 Available 30 Days 3340Stainless SteelFlange136.7No23.9None

72.40 €

1 Available 30 Days 4450SteelFlange155.7No29.7None

113.20 €

1 Available 30 Days 4450SteelFlange155.7No29.725

105.39 €

1 Available 30 Days 4450SteelFlange155.7No29.7100

203.31 €

1 Available 30 Days 4450Stainless SteelFlange155.7No29.7None

Loading...

  1. 1

Basic information

Hook type J-Hook

Configure

Clear all

37Suggestion of an applicable part number.

View Part Numbers

Some specification is not specified yet.
The part number is completed.

Basic Attributes

  • Max. holding capacity(N)

    • 900
    • 1670
    • 2000
    • 3340
    • 4450

    Clear

  • Body Material

    • Steel
    • Stainless Steel

    Clear

  • Base mounting style (details)

    • Flange
    • Narrow Flange

    Clear

  • Drawing movement(mm)

    • 59.7
    • 101.6
    • 136.7
    • 155.7

    Clear

  • Toggle lock plus(mm)

    • No
    • Yes

    Clear

  • Hook adjustble range(mm)

    • 7.4
    • 12.4
    • 23.9
    • 29.7

    Clear

  • Optional longer hook length(mm)

    • 25
    • 50
    • 100
    • None

    Clear

  • Filter by CAD data type

    • 3D

    Clear

Filter by standard shipping days

    • All
    • 15 Days or Less
    • 20 Days or Less
    • 30 Days or Less
