Straight Line Action Clamps 603 and 608

Straight Line Action Clamps 603 and 608

Click on this image to zoom in.

Click on this image to zoom in.

  • Volume Discount

DESTACO

DESTACO

Destaco’s 603 and 608 Series straight line action clamps are versatile and compact models. They feature a threaded body for through hole mounting and are available in a stainless steel design. Common applications for these clamps include assembly, fixture checking, welding fixtures, and tensioning devices.

Data sheet

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

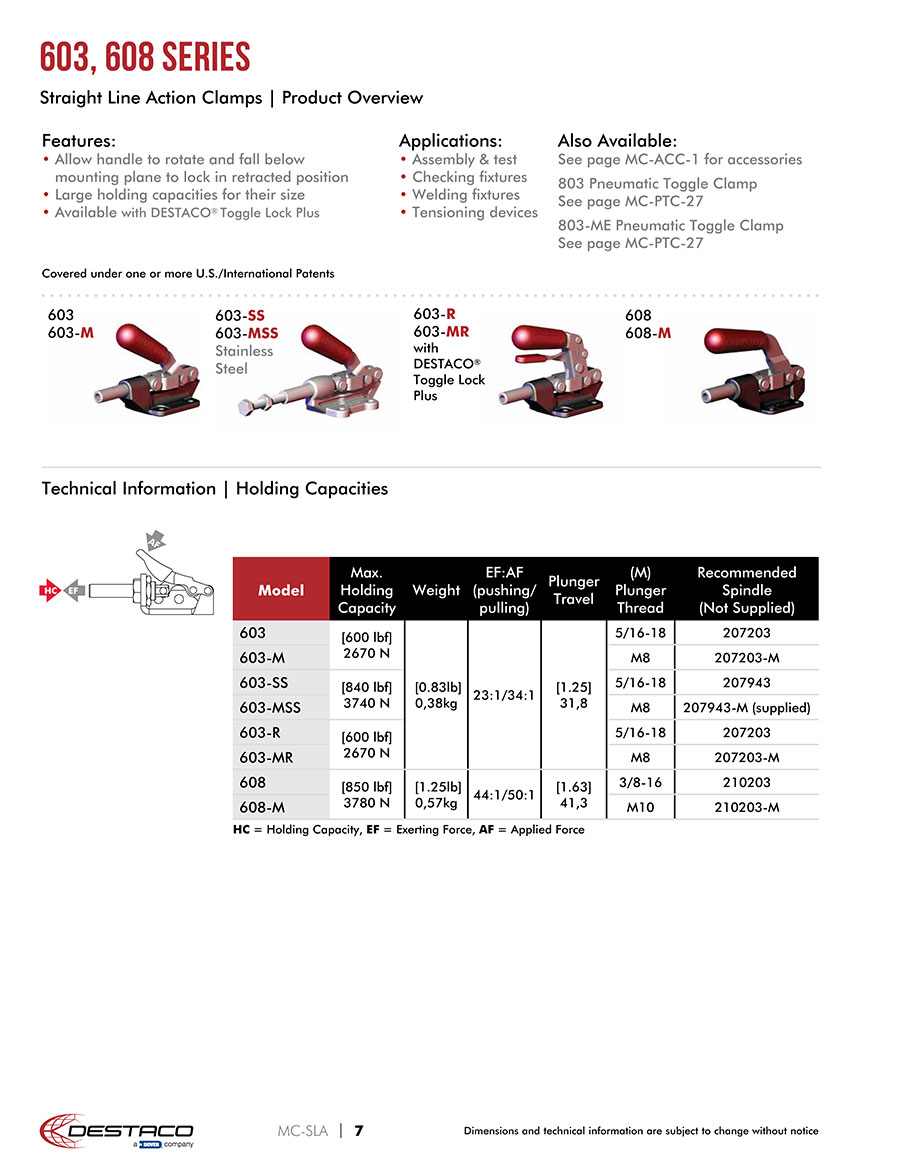

603, 608 Series Straight Line Action Clamps

Product Overview

603
603-M 603-SS
603-MSS
Stainless Steel 603-R
603-MR
with DESTACO® Toggle Lock Plus 608
608-M

Features

• Allow handle to rotate and fall below mounting plane to lock in retracted position
• Large holding capacities for their size
• Available with DESTACO® Toggle Lock Plus

Applications

• Assembly & test
• Checking fixtures
• Welding fixtures
• Tensioning devices

Also Available

803 Pneumatic Toggle Clamp
803-ME Pneumatic Toggle Clamp
Covered under one or more U.S./International Patents

Dimensions -M/-SS/-MSS/-R/-MR

603
603-M 603-SS
603-MSS
Stainless Steel 603-R
603-MR
with DESTACO® Toggle Lock Plus 608
608-M
ModelAA1A3A5A6BB1C1C2DD1HLL2L3
603[1.44]
36,6		[2.17]
55		[0.34]
8,5		[0.51]
13		[0.82]
21		[1.31]
33,3		[1.88]
48		[0.97]
24,6		[0.19]
4,8		[0.27]
6,8		[0.44]
11,1		[3.43]
87		[4.77]
121,2		[1.28]
32,5		[1.00]
25,4
603-M
603-SS[2.20]
55,9		[0.30]
7,5		[0.54]
13,6		[0.65]
16,5		[0.25]
6,4		[0.47]
12		[3.28]
83,4		[4.69]
119,2
603-MSS
603-R[0.51]
13		[0.82]
21		[0.19]
4,8		[0.44]
11,1		[3.43]
87		[4.77]
121,2
603-MR
608[1.63]
41,4		[2.25]
57,2		[0.31]
8		[0.75]
19		[1.40]
36		[1.63]
41,4		[2.25]
57,2		[1.25]
31,8		[0.33]
8,4		[0.62]
15,8		[4.04]
102,6		[6.00]
152,3		[1.59]
40,5		[1.25]
31,8
608-M

Technical Information / Holding Capacities

ModelMax. Holding CapacityWeightEF:AF
(pushing/ pulling)		Plunger Travel(M)
Plunger Thread		Recommended Spindle
(Not Supplied)
603[600 lbf]
2670 N		[0.83lb]
0,38kg		23:1/34:1[1.25]
31,8		5/16-18207203
603-MM8207203-M
603-SS[840 lbf]
3740 N		5/16-18207943
603-MSSM8207943-M (supplied)
603-R[600 lbf]
2670 N		5/16-18207203
603-MRM8207203-M
608[850 lbf]
3780 N		[1.25lb]
0,57kg		44:1/50:1[1.63]
41,3		3/8-16210203
608-MM10210203-M
HC = Holding Capacity, EF = Exerting Force, AF = Applied Force
Dimensions and technical information are subject to change without notice
Data to be displayed
30
45
60
  1. 1
Part Number
603-M
603-MR
603-MSS
608-M
Part Number
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
Max. holding capacity
(N) 		Body Material Plunger travel
(mm) 		Plunger height
(mm) 		Plunger thread Toggle lock plus
(mm)

52.23 €

1 Available Same day

Stock

2670Steel31.824.4M8No

93.72 €

1 Available Same day

Stock

2670Steel31.824.4M8Yes

109.16 €

1 Available 7 Days 3740Stainless Steel31.831.8M8No

121.09 €

1 Available 44 Days 3780Steel41.431.83/8-16No
