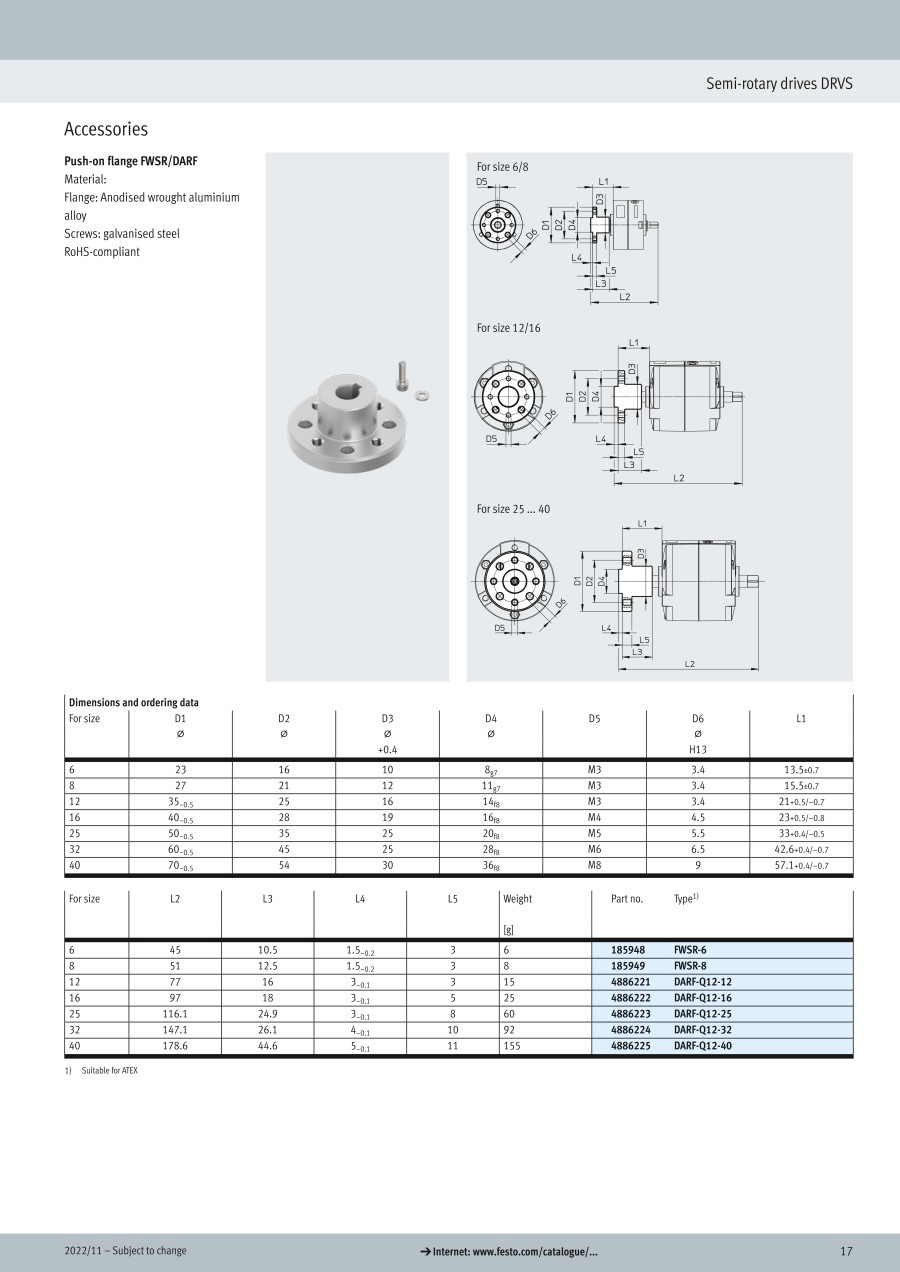

Push-on flange, DARF Series
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| DARF-Q12-12 |
| DARF-Q12-25 |
| DARF-Q12-32 |
| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | Size | Max. tightening torque (Nm) | Manufacturer part # | Weight (g) | |
|---|---|---|---|---|---|---|---|---|---|
27.38 € | 1 | 4 Days | 12 | 1.4 | 4886221 | 15 | |||
34.25 € | 1 | 3 Days | 25 | 1.2 | 4886223 | 60 | |||
41.08 € | 1 | 4 Days | 32 | 2.9 | 4886224 | 92 |
Loading...
Basic information
| Operating Temperature Range(°C) | 0::60 | Material of screws | Steel, Galvanized | Material of flange | Wrought aluminum alloy, anodized |
|---|---|---|---|---|---|
| Corrosion resistance class (CRC) | 1 - Low corrosion stress |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
