Configure

Outer Diameter D(Ø)
- 11.6
- 17.6
Inner Diameter d(Ø)
- 9
- 13
Bending radius relevant for flow rate(mm)
- 76
- 83
Pneumatic connection
- For barbed fitting, inside diameter 9 mm, with union nut
- For barbed fitting, inside diameter 13 mm, with union nut
Shore hardness
- A 86 +/-3
- A 91 +/-3
Product weight by length(kg/m)
- 0.056
- 0.133
Min. Operating pressure(bar)
- -0.95
- 0
Est. shipping days
- All
- Within 3 working days

Plastic tubing, PU Series

Name: Plastic tubing, PU Series from FESTO | MISUMI
Brand: FESTO
SKU: 221302433954
Availability: Instock

Part number:

Still undefined. 2 possible part numbers found.

Part number list

Number of items

Part number

Order suspended

Outer Diameter D

(Ø)

Inner Diameter d

(Ø)

Bending radius relevant for flow rate

(mm)

Pneumatic connection

Shore hardness

Product weight by length

(kg/m)

Min. Operating pressure

(bar)

Manufacturer part #

Minimum order quantity

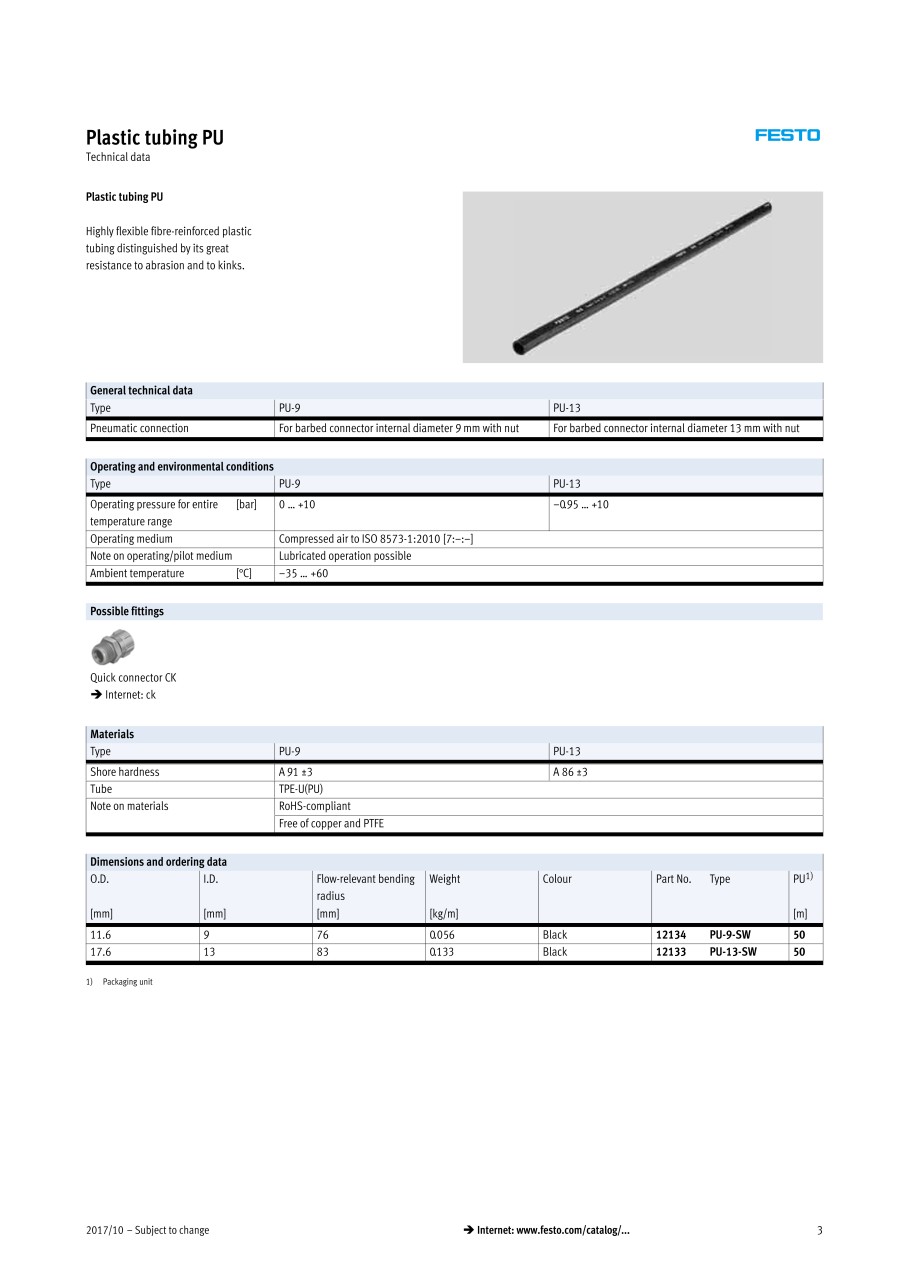

Data sheet	11.6	9	76	For barbed fitting, inside diameter 9 mm, with union nut	A 91 +/-3	0.056	0	12134	50 pieces
Data sheet	17.6	13	83	For barbed fitting, inside diameter 13 mm, with union nut	A 86 +/-3	0.133	-0.95	12133	50 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

9.38 € ( 11.16 € )	3 working days
16.18 € ( 19.25 € )	3 working days
