FESTO

Plastic tubing, PFAN Series

Plastic tubing, PFAN Series

Click image to view enlarged image

Part number:

Still undefined. 6 possible part numbers found.
Quantity:

Part number list

Number of items
  • 1
    • Part number
    PFAN-3X0.5-NT
    PFAN-4X0.75-NT
    PFAN-6X1-NT
    Order suspended
    PFAN-8X1.25-NT
    PFAN-10X1.5-NT
    PFAN-12X1.75-NT
    Related

    Outer Diameter D

    (Ø)

    Inner Diameter d

    (Ø)

    Minimum Bending Radius

    (mm)

    Bending radius relevant for flow rate

    (mm)

    Pneumatic connection

    Product weight by length

    (kg/m)

    Max. Operating pressure

    (bar)

    Manufacturer part #

    		Minimum order quantity

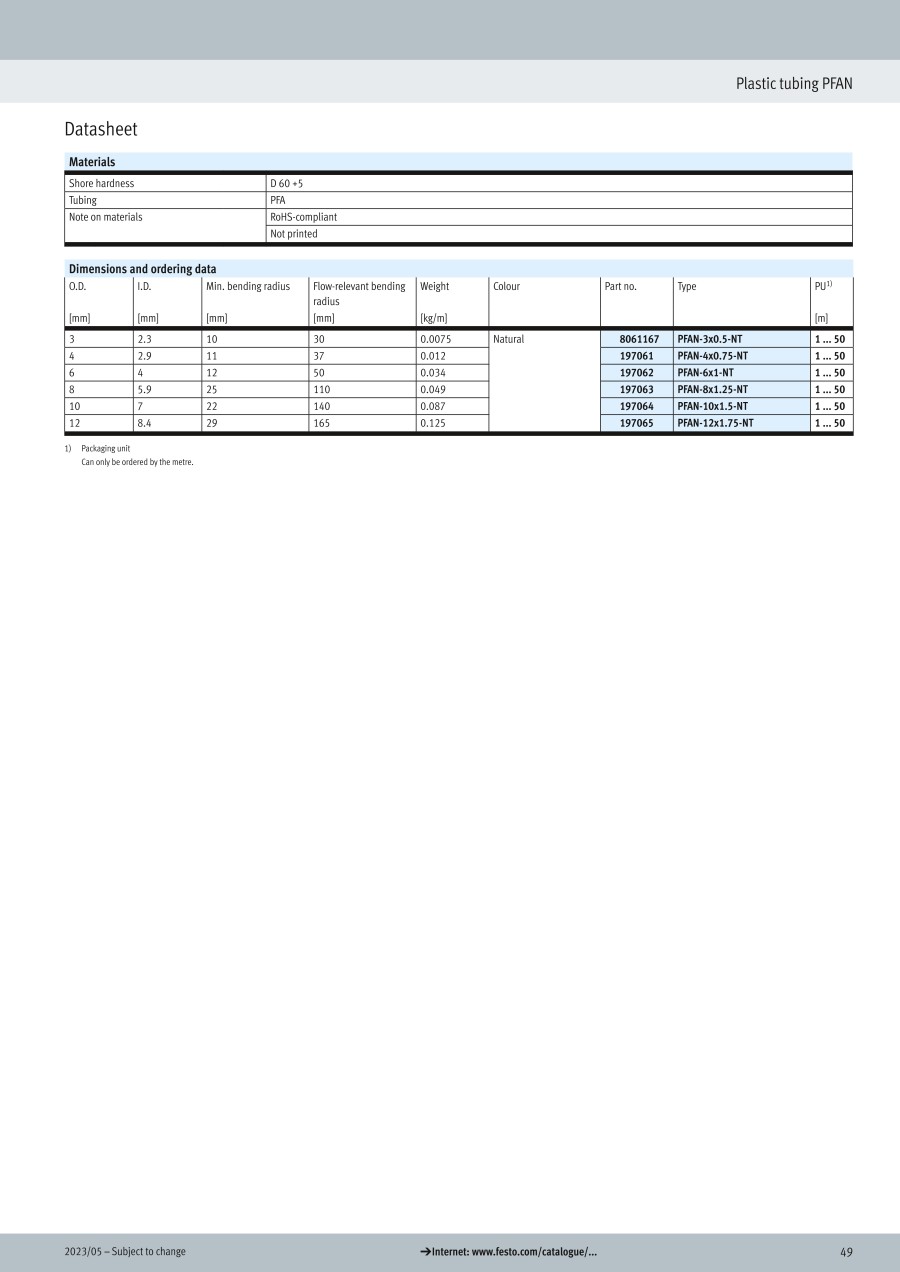

    Data sheet

    3
    2.3
    10
    30
    For plug connection outside diameter 3 mm, For barbed fitting, inside diameter 2 mm
    0.0075
    15
    8061167
    50 pieces

    Data sheet

    4
    2.9
    11
    37
    For plug connection outside diameter 4 mm, For barbed fitting, inside diameter 3 mm, For barbed fitting, inside diameter 3 mm, with union nut
    0.012
    15
    197061
    50 pieces

    Data sheet

    6
    4
    12
    50
    For plug connection outside diameter 6 mm, For barbed fitting, inside diameter 4 mm, For barbed fitting, inside diameter 4 mm, with union nut
    0.034
    16
    197062
    50 pieces

    Data sheet

    8
    5.9
    25
    110
    For plug connection outside diameter 8 mm, For barbed fitting, inside diameter 6 mm, For barbed fitting, inside diameter 6 mm, with union nut
    0.049
    15
    197063
    50 pieces

    Data sheet

    10
    7
    22
    140
    For plug connection outside diameter 10 mm
    0.087
    16
    197064
    50 pieces

    Data sheet

    12
    8.4
    29
    165
    For plug connection outside diameter 12 mm
    0.125
    16
    197065
    50 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    5.03 €
    ( 5.99 € )
    4 working days
    7.51 €
    ( 8.94 € )
    4 working days
    13.74 €
    ( 16.35 € )
    12 working days
    19.58 €
    ( 23.30 € )
    4 working days
    27.34 €
    ( 32.53 € )
    4 working days
    42.63 €
    ( 50.73 € )
    4 working days
  • 1

    • More Information

    Basic information

    [Specifications]
    ・Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
    ・Material of pneumatic tubing: PFA
    ・Color: Natural

    [Features]
    ・Perfluoroalkoxy alkane
    ・Pneumatic tubing with resistance to high temperatures and chemicals
    ・High resistance to chemicals, microbes, UV radiation, hydrolysis and stress cracks
    ・Operating media compressed air, vacuum, water.
    ・The PFAN pneumatic tubing is extremely resistant to chemicals, cleaning processes, temperatures and pressure. Perfect for use in the food industry, e.g. in meat processing
