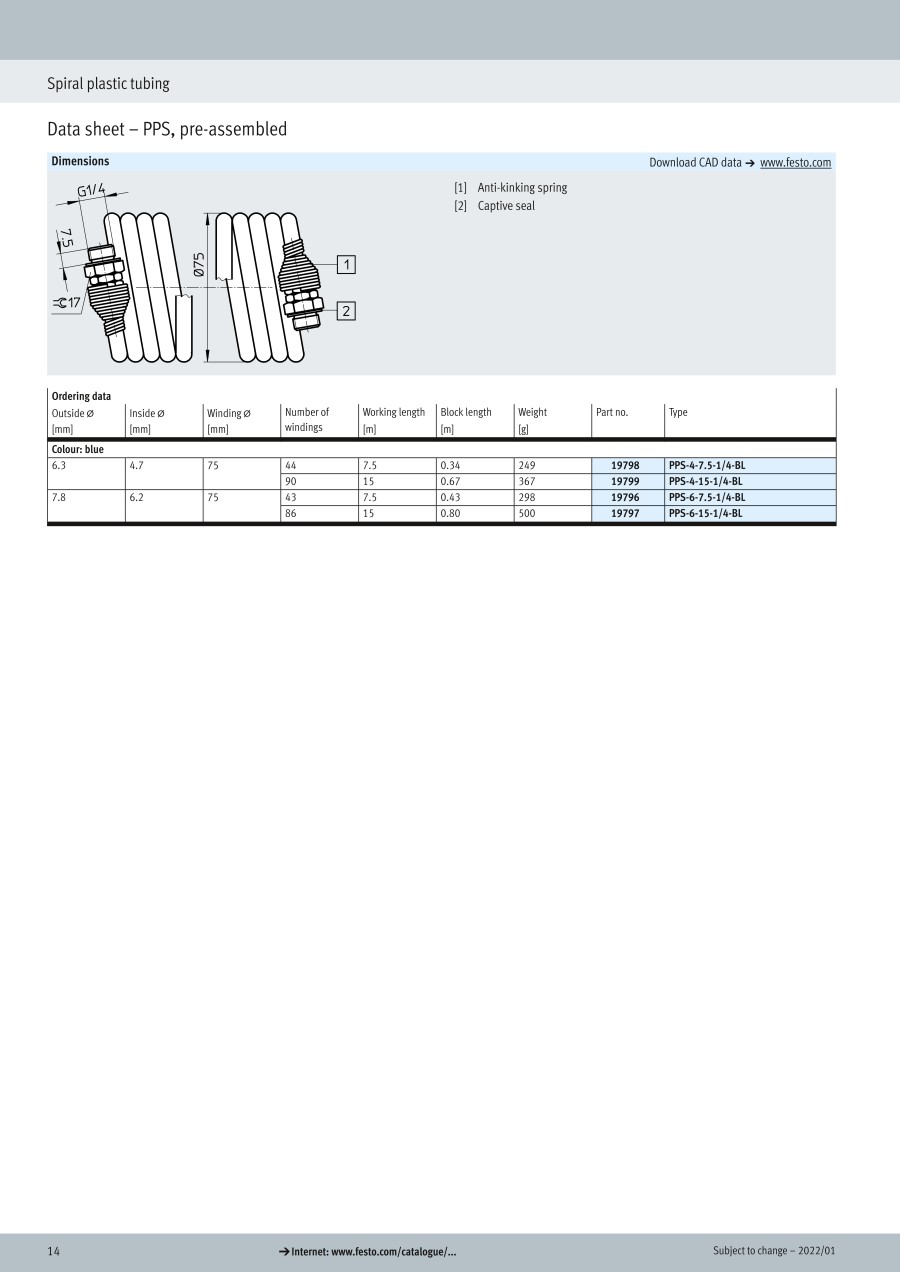

Spiral plastic tubing, PPS Series
Click on this image to zoom in.
Click on this image to zoom in.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| PPS-4-7.5-1/4-BL |
| PPS-4-15-1/4-BL |
| PPS-6-7.5-1/4-BL |
| PPS-6-15-1/4-BL |
| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | Outer Diameter D (Ø) | Inner Diameter d (Ø) | Working length (m) | Block length (m) | Number of windings | Max. Operating pressure (bar) | Manufacturer part # | Weight (g) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
78.26 € | 1 | 6 Days | 6.3 | 4.7 | 7.5 | 0.34 | 44 | 21.2 | 19798 | 249 | |||
117.62 € | 1 | 4 Days | 6.3 | 4.7 | 15 | 0.67 | 90 | 21.2 | 19799 | 367 | |||
91.22 € | 1 | 3 Days | 7.8 | 6.2 | 7.5 | 0.43 | 43 | 17.2 | 19796 | 298 | |||
131.57 € | 1 | 3 Days | 7.8 | 6.2 | 15 | 0.8 | 86 | 17.2 | 19797 | 500 |
Loading...
Basic information
| Pneumatic connection 1 | External thread G1/4 | Pneumatic connection 2 | External thread G1/4 | Material of pneumatic tubing | PA12-P |
|---|---|---|---|---|---|
| Material of connecting thread | Brass | Antikink device material | Steel, Galvanized | Color | Blue |
| Winding diameter(mm) | 75 | Min. Operating pressure(bar) | -0.95 | Min. Ambient temperature(°C) | -30 |
| Max. Ambient temperature(°C) | 80 | Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
Configure
Basic Attributes
-
Outer Diameter D(Ø)
-
Inner Diameter d(Ø)
-
Working length(m)
-
Block length(m)
-
Number of windings
-
Max. Operating pressure(bar)
Filter by standard shipping days
-
- All
- 3 Days or Less
- 4 Days or Less
- 6 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
