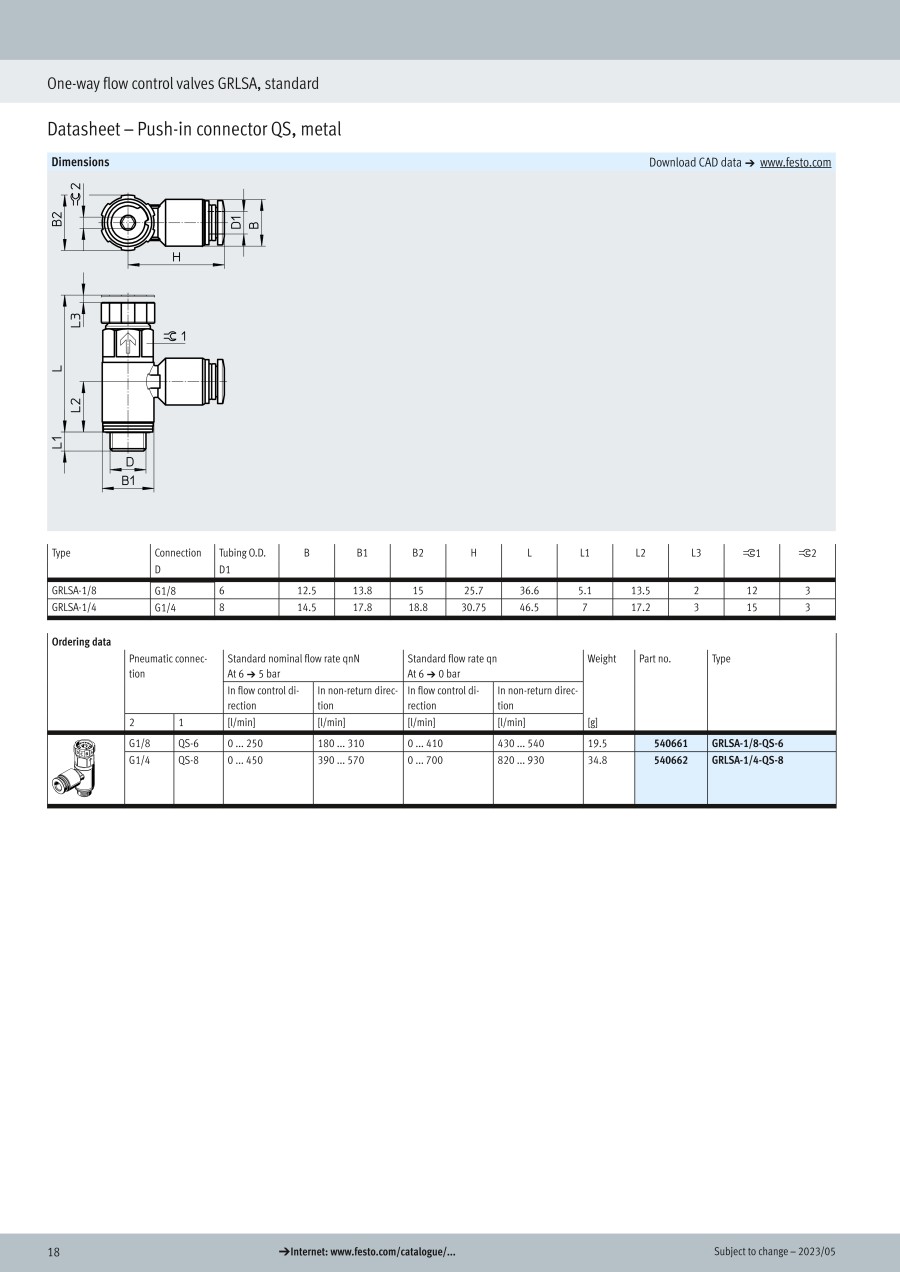

One-way flow control valve, GRLSA Series

Part Number

Once your search is narrowed to one product,
the corresponding part number is displayed here.

Part Number
GRLSA-1/4-QS-8
GRLSA-1/8-QS-6
Part NumberRelated to
Standard Unit Price
Minimum order quantityVolume Discount
Standard
Shipping Days
?
Pneumatic connection 1 Pneumatic connection 2 Standard nominal flow rate in flow control direction
(l/min)
Standard nominal flow rate in non-return direction
(l/min)
Standard flow rate in flow control direction 6 -> 0 bar
(l/min)
Standard flow rate in non-return direction at 6 -> 0 bar
(l/min)
Nominal tightening torque
(Nm)
Manufacturer part # Weight
(g)

42.37 €

1 4 Days QS-8G1/40-450390-5700-700820-9301154066234.8

38.06 €

1 27 Days QS-6G1/80-250180-3100-410430-5403.554066119.5

Loading...

  1. 1

Basic information

Seals material NBR Material of screws PA-reinforced Hollow bolt material Wrought aluminum alloy, Anodized
Swivel joint material Die-cast zinc Adjusting element Internal hexagon Min. Operating pressure(bar) 0.2
Max. Operating pressure(bar) 10 Min. Ambient temperature(°C) -10 Max. Ambient temperature(°C) 60
Min. Storage temperature(°C) -10 Max. Storage temperature(°C) 40 Min. Temperature of medium(°C) -10
Max. Temperature of medium(°C) 60 Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
