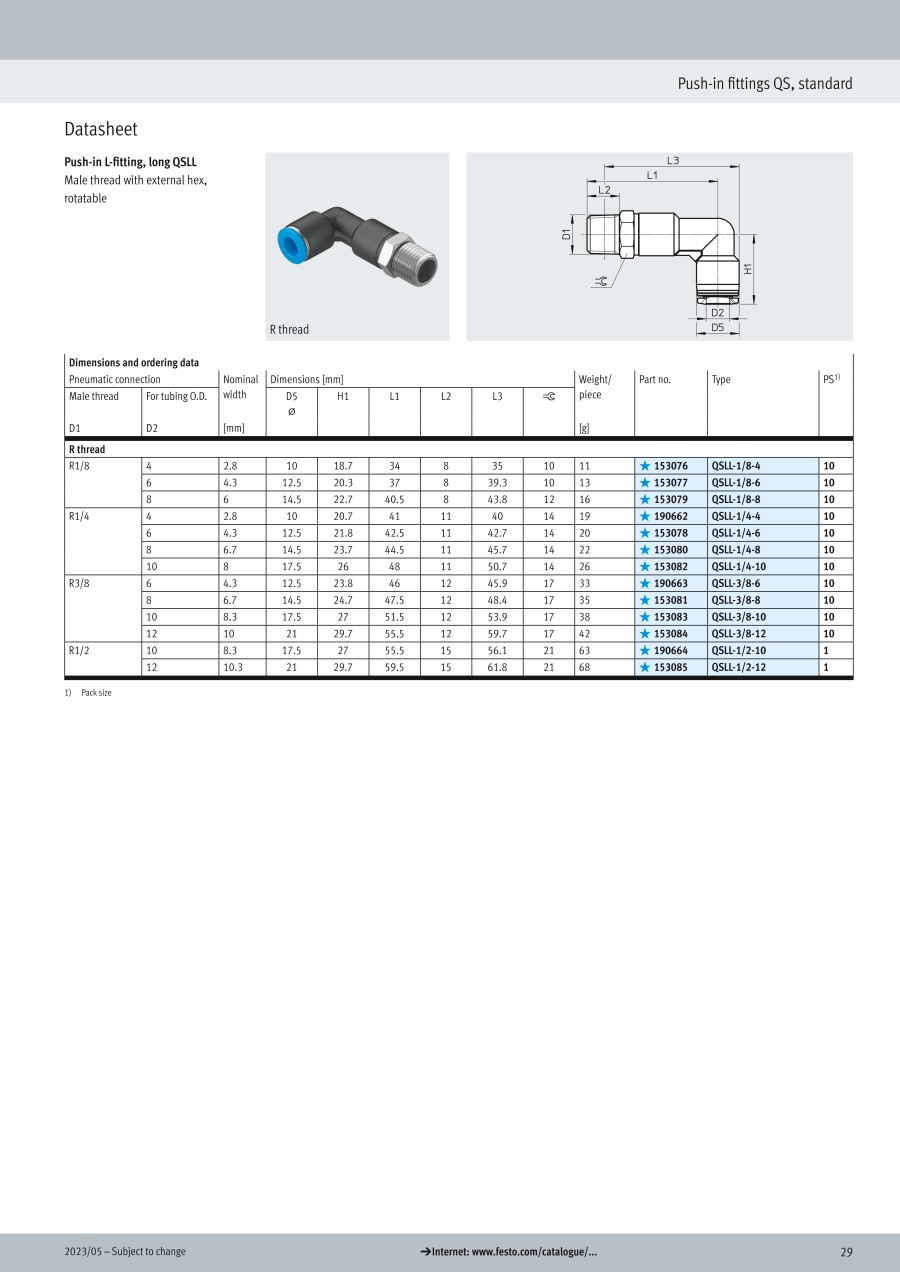

Push-in L-fitting, long, QSLL Series
- Volume Discount
・Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
・Corrosion resistance class (CRC): 1 - Low corrosion stress
[Features]
・Push-in L-fitting, long QSLL
・Male thread with external hex, rotatable
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | Pack size | Nominal width (mm) | Pneumatic connection 1 | Pneumatic connection 2 | Nominal tightening torque (Nm) | Manufacturer part # | Weight (g) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
10.68 € | 1 | 3 Days | 1 | 8.3 | External thread R1/2 | for pneumatic tubing outside diameter 10 mm | - | 190664 | 63 | |||
11.89 € | 1 | 3 Days | 1 | 10.3 | External thread R1/2 | for pneumatic tubing outside diameter 12 mm | - | 153085 | 68 | |||
3.75 € | 10 | 4 Days | 10 | 2.8 | External thread R1/4 | for pneumatic tubing outside diameter 4 mm | - | 190662 | 19 | |||
4.05 € | 10 | 3 Days | 10 | 4.3 | External thread R1/4 | for pneumatic tubing outside diameter 6 mm | - | 153078 | 20 | |||
4.37 € | 10 | 3 Days | 10 | 6.7 | External thread R1/4 | for pneumatic tubing outside diameter 8 mm | - | 153080 | 22 | |||
6.78 € | 10 | 3 Days | 10 | 8 | External thread R1/4 | for pneumatic tubing outside diameter 10 mm | - | 153082 | 26 | |||
3.49 € | 10 | 4 Days | 10 | 2.8 | External thread R1/8 | for pneumatic tubing outside diameter 4 mm | - | 153076 | 11 | |||
3.82 € | 10 | 3 Days | 10 | 4.3 | External thread R1/8 | for pneumatic tubing outside diameter 6 mm | - | 153077 | 13 | |||
4.29 € | 10 | 3 Days | 10 | 6 | External thread R1/8 | for pneumatic tubing outside diameter 8 mm | - | 153079 | 16 | |||
5.74 € | 10 | 4 Days | 10 | 4.3 | External thread R3/8 | for pneumatic tubing outside diameter 6 mm | - | 190663 | 33 | |||
6.23 € | 10 | 3 Days | 10 | 6.7 | External thread R3/8 | for pneumatic tubing outside diameter 8 mm | - | 153081 | 35 | |||
8.12 € | 10 | 3 Days | 10 | 8.3 | External thread R3/8 | for pneumatic tubing outside diameter 10 mm | - | 153083 | 38 | |||
9.15 € | 10 | 3 Days | 10 | 10 | External thread R3/8 | for pneumatic tubing outside diameter 12 mm | - | 153084 | 42 | |||
12.95 € | 1 | 3 Days | 1 | 10.3 | External thread G1/2 | for pneumatic tubing outside diameter 12 mm | 26 | 186136 | 75 | |||
15.75 € | 1 | 3 Days | 1 | 13 | External thread G1/2 | for pneumatic tubing outside diameter 16 mm | 26 | 190665 | 158 | |||
4.57 € | 10 | 3 Days | 10 | 4.3 | External thread G1/4 | for pneumatic tubing outside diameter 6 mm | 9 | 186129 | 25 | |||
4.91 € | 10 | 3 Days | 10 | 6.7 | External thread G1/4 | for pneumatic tubing outside diameter 8 mm | 9 | 186131 | 27 | |||
7.68 € | 10 | 3 Days | 10 | 8 | External thread G1/4 | for pneumatic tubing outside diameter 10 mm | 9 | 186133 | 31 | |||
10.58 € | 1 | 4 Days | 1 | 8 | External thread G1/4 | for pneumatic tubing outside diameter 12 mm | 9 | 132596 | 35 | |||
3.92 € | 10 | 4 Days | 10 | 2.8 | External thread G1/8 | for pneumatic tubing outside diameter 4 mm | 7 | 186127 | 14 | |||
3.84 € | 1 | Available | 11 Days | 100 | 2.8 | External thread G1/8 | for pneumatic tubing outside diameter 4 mm | 7 | 133015 | 14 | ||
4.34 € | 10 | 3 Days | 10 | 4.3 | External thread G1/8 | for pneumatic tubing outside diameter 6 mm | 7 | 186128 | 15 | |||
2.23 € | 1 | 3 Days | 100 | 4.3 | External thread G1/8 | for pneumatic tubing outside diameter 6 mm | 7 | 133016 | 15 | |||
4.80 € | 10 | 4 Days | 10 | 6 | External thread G1/8 | for pneumatic tubing outside diameter 8 mm | 7 | 186130 | 17 | |||
4.77 € | 1 | Available | 11 Days | 100 | 6 | External thread G1/8 | for pneumatic tubing outside diameter 8 mm | 7 | 133017 | 17 | ||
6.89 € | 10 | 3 Days | 10 | 6.7 | External thread G3/8 | for pneumatic tubing outside diameter 8 mm | 15.5 | 186132 | 34 | |||
8.95 € | 10 | 4 Days | 10 | 8.3 | External thread G3/8 | for pneumatic tubing outside diameter 10 mm | 15.5 | 186134 | 37 | |||
10.14 € | 10 | 3 Days | 10 | 10 | External thread G3/8 | for pneumatic tubing outside diameter 12 mm | 15.5 | 186135 | 41 |
Loading...
Basic information
| Housing material | PBT | Size | Standard | Min. Operating pressure(bar) | -0.95 |
|---|---|---|---|---|---|
| Max. Operating pressure(bar) | 6 | Min. Ambient temperature(°C) | -10 | Max. Ambient temperature(°C) | 80 |
| Min. Storage temperature(°C) | -10 | Max. Storage temperature(°C) | 60 | Releasing ring color | Blue |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:-:-] Water as per manufacturer's declaration at www.festo.com |
Corrosion resistance class (CRC) | 1 - Low corrosion stress |
Configure
Basic Attributes
-
Pack size
- 1
- 10
- 100
-
Nominal width(mm)
-
Pneumatic connection 1
-
Pneumatic connection 2
- for pneumatic tubing outside diameter 4 mm
- for pneumatic tubing outside diameter 6 mm
- for pneumatic tubing outside diameter 8 mm
- for pneumatic tubing outside diameter 10 mm
- for pneumatic tubing outside diameter 12 mm
- for pneumatic tubing outside diameter 16 mm
-
Nominal tightening torque(Nm)
Filter by standard shipping days
-
- All
- 3 Days or Less
- 4 Days or Less
- 11 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
