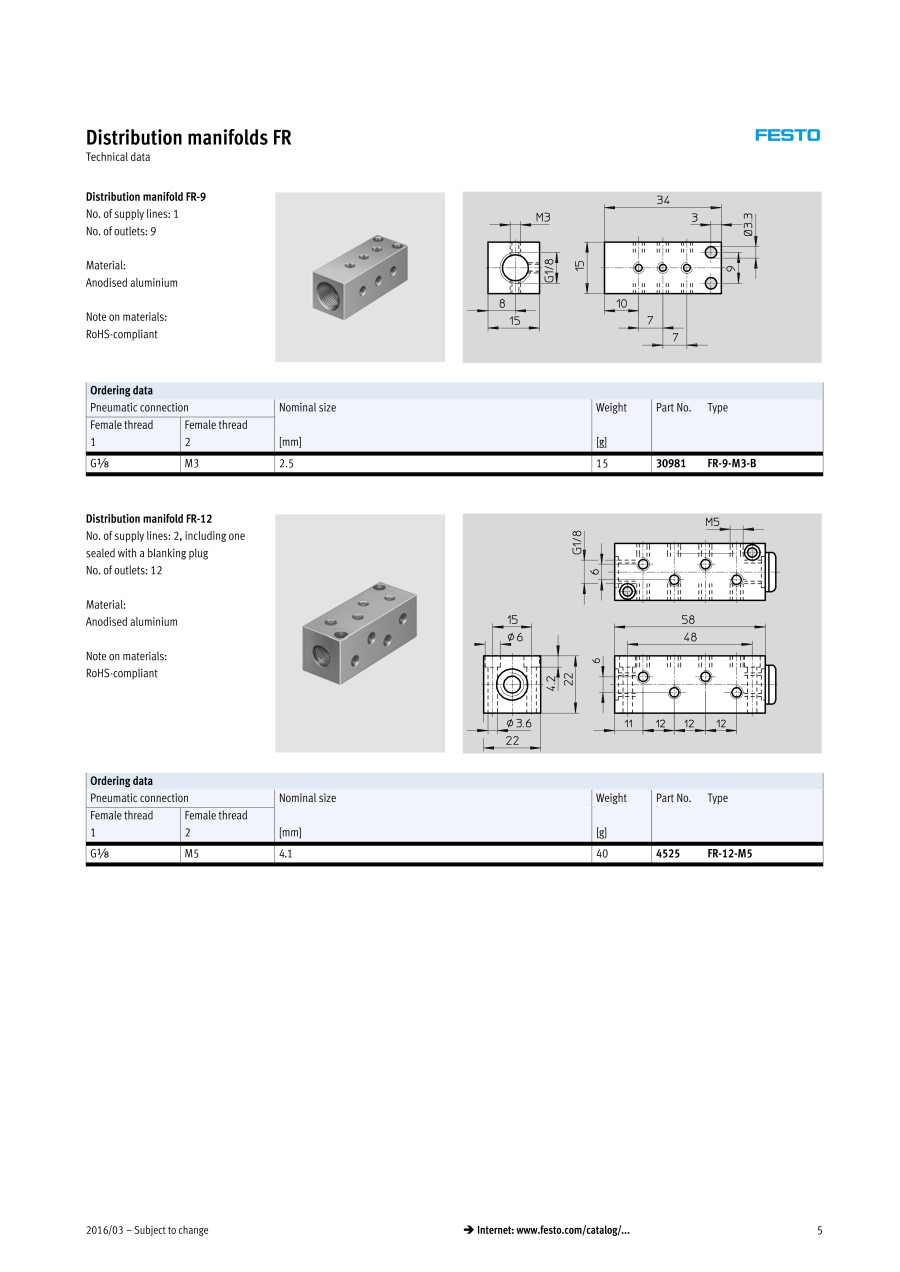

Distributor block, FR Series

Distributor block, FR Series

Click image to view enlarged image

Part number:

Still undefined. 12 possible part numbers found.
Quantity:

Part number list

Number of items
Related

Housing material

Nominal width

(mm)

Min. Operating pressure

(bar)

Max. Operating pressure

(bar)

Min. Ambient temperature

(°C)

Max. Ambient temperature

(°C)

No. of outlets

Pneumatic connection 1

Pneumatic connection 2

Nominal tightening torque

(Nm)

Operating medium

Corrosion resistance class (CRC)

Manufacturer part #

Weight

(g)

Minimum order quantity
Die-cast aluminum
18.6
0
16
-10
80
3
Internal thread G1/2
internal thread G1/2
-
Compressed air as per ISO 8573-1:2010 [7:-:-]
0 - No corrosion stress
6704
120
1 pieces
-
-
-
-
-
-
-
-
-
-
-
-
2960
-
1 pieces
Die-cast aluminum
11.5
0
16
-10
80
3
Internal thread G1/4
Internal thread G1/4
-
Compressed air as per ISO 8573-1:2010 [7:-:-]
0 - No corrosion stress
7849
60
1 pieces
Die-cast aluminum
8.6
0
16
-10
80
3
Internal thread G1/8
Internal thread G1/8
-
Compressed air as per ISO 8573-1:2010 [7:-:-]
0 - No corrosion stress
6701
25
1 pieces
Die-cast aluminum
15
0
16
-10
80
3
Internal thread G3/8
Internal thread G3/8
-
Compressed air as per ISO 8573-1:2010 [7:-:-]
0 - No corrosion stress
6703
75
1 pieces
Die-cast aluminum
18.6
0
16
-10
60
8
Internal thread G3/4
internal thread G1/2
35
Compressed air as per ISO 8573-1:2010 [7:-:-]
0 - No corrosion stress
6411
1000
1 pieces
Die-cast aluminum
11.5
0
16
-10
60
8
Internal thread G1/2
Internal thread G1/4
14
Compressed air as per ISO 8573-1:2010 [7:-:-]
0 - No corrosion stress
2078
230
1 pieces
Die-cast aluminum
8.6
0
16
-10
60
8
Internal thread G3/8
Internal thread G1/8
12.5
Compressed air as per ISO 8573-1:2010 [7:-:-]
0 - No corrosion stress
2077
135
1 pieces
Aluminum, Anodized
2.5
0
16
-10
80
9
Internal thread G1/8
Internal thread M3
-
Compressed air as per ISO 8573-1:2010 [7:-:-]
2 - Moderate corrosion stress
30981
15
1 pieces
Aluminum, Anodized
4.1
0
16
-10
60
12
Internal thread G1/8
Internal thread M5
3.5
Compressed air as per ISO 8573-1:2010 [7:-:-]
2 - Moderate corrosion stress
4525
40
1 pieces
Die-cast aluminum
2.5
0
8
-
-
12
Internal thread G1/4
for pneumatic tubing outside diameter 4 mm
-
Compressed air as per ISO 8573-1:2010 [7:-:-]
-
8761
-
1 pieces
Die-cast aluminum
3.4
0
8
-
-
12
Internal thread G1/4
for pneumatic tubing outside diameter 6 mm
-
Compressed air as per ISO 8573-1:2010 [7:-:-]
-
8762
-
1 pieces
Unit price (excluding VAT)(Unit price including VAT)
Standard shipping days
24.02 €
( 28.58 € )
3 working days
12.06 €
( 14.35 € )
27 working days
11.88 €
( 14.14 € )
3 working days
7.52 €
( 8.95 € )
3 working days
22.08 €
( 26.28 € )
3 working days
105.17 €
( 125.15 € )
3 working days
47.72 €
( 56.79 € )
3 working days
36.05 €
( 42.90 € )
3 working days
22.89 €
( 27.24 € )
4 working days
28.18 €
( 33.53 € )
3 working days
21.42 €
( 25.49 € )
4 working days
21.97 €
( 26.14 € )
4 working days

More Information

Basic information

[Specifications]
・Housing material: Aluminum, Anodized,Die-cast aluminum
