Configure

Design
Housing material
Degree of protection
DC operating voltage range(V)
- 0-200
- 0-30
- 3-230
- 5-30
- 12-30
- 12-27
Operating voltage range AC(V)
- 0-250
- 0-30
- 3-230
- 5-30
- 12-30
- 12-27
Max. output current(mA)
- 80
- 100
- 120
- 300
- 500
- 1000
Type of mounting
Mounting position
- Any
Cable length(m)
- 0.3
- 2.5
- 5
- 7.5
Material of cable sheath
Max. switching frequency(Hz)
- 50
- 500
- 800
Max. switching capacity DC(W)
- 1
- 2.16
- 2.4
- 3
- 9
- 10
- 27
- 40
Tightening torque(Nm)
- 0.1
- 0.2
- 2.9
Max. tightening torque(Nm)
- 0.4
Switching output
- Contact-based, bipolar
- Contact-based, bipolar, Without LED function
Min. Ambient temperature(°C)
- -50
- -40
- -30
- -20
Max. Ambient temperature(°C)
- 60
- 70
- 120
Electrical connection
Repetition accuracy(mm)
- 0.2
Est. shipping days
- All
- Within 4 working days
- Within 7 working days

Proximity sensor, SME Series

Click image to view enlarged image

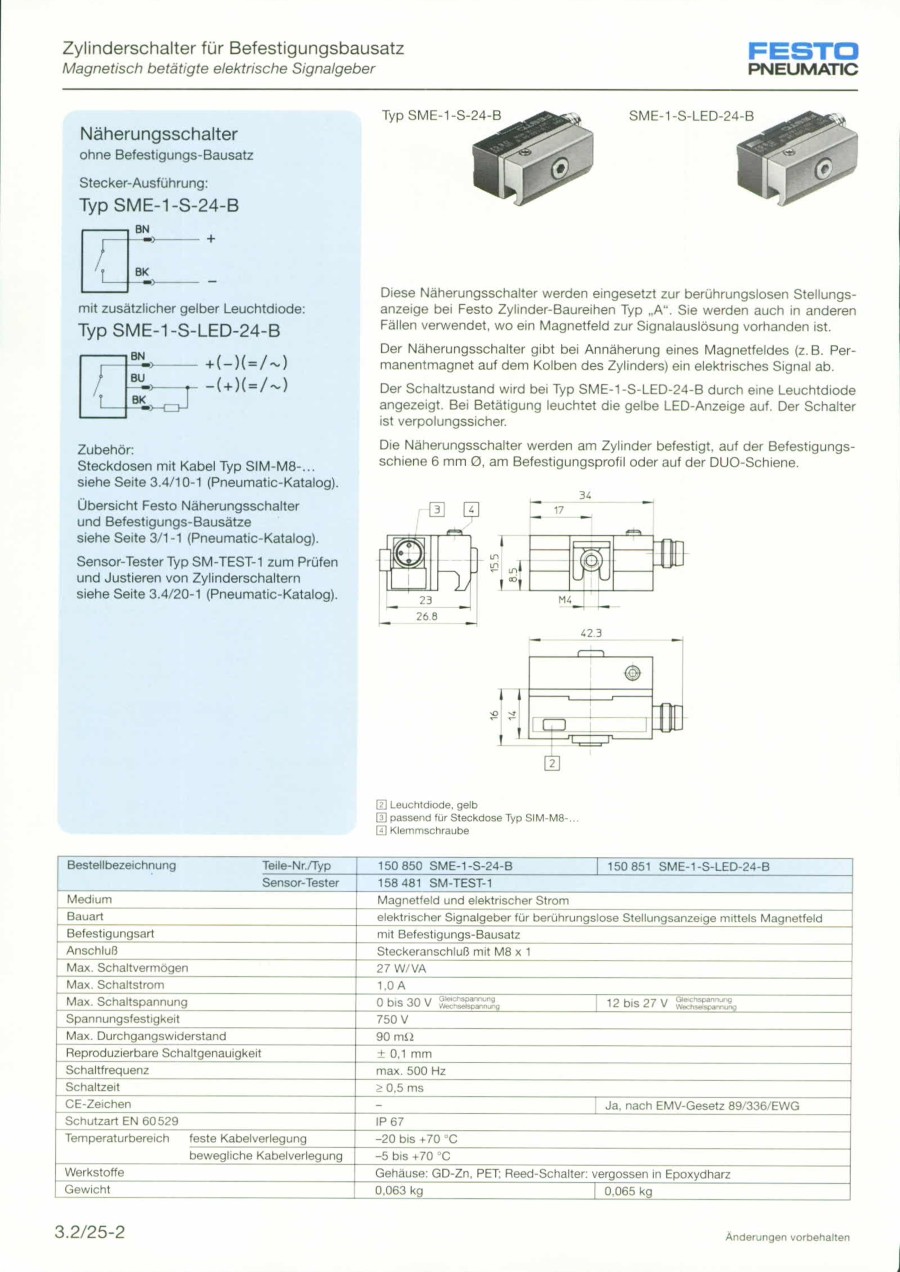

Catalog

Part number:

Still undefined. 22 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Design

Housing material

Degree of protection

DC operating voltage range

(V)

Operating voltage range AC

(V)

Max. output current

(mA)

Type of mounting

Mounting position

Cable length

(m)

Material of cable sheath

Max. switching frequency

(Hz)

Max. switching capacity DC

(W)

Tightening torque

(Nm)

Max. tightening torque

(Nm)

Switching output

Min. Ambient temperature

(°C)

Max. Ambient temperature

(°C)

Electrical connection

Repetition accuracy

(mm)

Weight

(g)

Manufacturer part #

Minimum order quantity

Data sheet	Block design	Epoxy resin, PC, PET, Steel, TPE-O, Die-cast zinc	IP67	0-200	0-250	1000	With accessories	-	2.5	PVC	500	40	2.9	-	Contact-based, bipolar	-20	70	2-wire, Cable	-	130	151668	1 pieces
Data sheet	Block design	PET-reinforced	IP67	12-27	12-27	1000	With accessories	Any	2.5	TPE-U(PUR)	-	27	-	-	Contact-based, bipolar	-20	70	3-wire, Cable	-	110	151669	1 pieces
Data sheet	Block design	Epoxy resin, PC, PET, Steel, TPE-O, Die-cast zinc	IP67	0-200	0-250	1000	With accessories	-	2.5	TPE-S	500	40	2.9	-	Contact-based, bipolar	-50	120	2-wire, Cable	-	130	151670	1 pieces
Data sheet	Block design	PET	IP67	0-30	-	1000	With accessories	Any	-	-	-	27	-	-	Contact-based, bipolar	-20	70	3-pin, M8x1, Plug	-	45	150850	1 pieces
Data sheet	Block design	PET	IP67	12-27	12-27	1000	With accessories	Any	-	-	-	27	-	-	Contact-based, bipolar	-20	70	3-pin, M8x1, Plug	-	45	150851	1 pieces
Data sheet	for T-slot	Epoxy resin, PC, PET, High-alloy stainless steel	IP65, IP67	12-30	12-30	500	Clamped in T slot, Can be inserted in slot lengthwise	-	5	TPE-U(PUR)	800	10	0.2	-	Contact-based, bipolar	-40	70	3-wire, Cable	-	60	175404	1 pieces
Data sheet	for T-slot	Epoxy resin, PET, High-alloy stainless steel	IP67	0-30	0-30	500	Clamped in T slot, Can be inserted in slot lengthwise	-	2.5	TPE-S	800	10	0.2	-	Contact-based, bipolar	-40	120	-	-	50	161756	1 pieces
Data sheet	for T-slot	Epoxy resin, PC, PET, High-alloy stainless steel	IP65, IP67	12-30	12-30	500	Clamped in T slot, Can be inserted in slot lengthwise	-	2.5	TPE-U(PUR)	800	10	0.2	-	Contact-based, bipolar	-40	60	3-wire, Cable	-	30	150855	1 pieces
Data sheet	for T-slot	Epoxy resin, PET, High-alloy stainless steel	IP68	3-230	3-230	120	Clamped in T slot, Can be inserted in slot lengthwise	-	2.5	TPE-U(PUR)	500	10	0.2	-	Contact-based, bipolar	-30	60	-	-	39	152820	1 pieces
Data sheet	for T-slot	Epoxy resin, PC, PET, High-alloy stainless steel	IP67	12-30	12-30	500	Clamped in T slot, Can be inserted in slot lengthwise	-	0.3	TPE-U(PUR)	-	10	0.2	-	Contact-based, bipolar	-40	70	3-pin, Cable with plug, M8x1	-	8	150857	1 pieces
Data sheet	for T-slot	Epoxy resin, PC, PET, High-alloy stainless steel	IP67	12-27	-	80	Clamped in T slot, Can be inserted in slot lengthwise	-	2.5	TPE-U(PUR)	800	2.16	0.2	-	Contact-based, bipolar, Without LED function	-40	60	2-wire, Cable	-	27.9	171169	1 pieces
Data sheet	-	PA, High-alloy stainless steel	IP65, IP68	5-30	5-30	80	Screwed tightly, Can be inserted in slot from above	-	7.5	TPE-U(PUR)	-	2.4	-	-	Contact-based, bipolar	-40	70	-	-	87.1	546799	1 pieces
Data sheet	-	Brass, nickel-plated, PA, TPE-U(PUR), High-alloy stainless steel	IP65, IP68	5-30	5-30	500	Screwed tightly, Can be inserted in slot from above	-	0.3	TPE-U(PUR)	-	10	-	-	Contact-based, bipolar	-40	70	-	-	8.9	543861	1 pieces
Data sheet	-	PA, High-alloy stainless steel	IP65, IP68	5-30	5-30	500	Screwed tightly, Can be inserted in slot from above	-	2.5	TPE-U(PUR)	-	10	-	-	Contact-based, bipolar	-40	70	-	-	29.8	543862	1 pieces
Data sheet	-	PA, High-alloy stainless steel	IP65, IP68	5-30	5-30	500	Screwed tightly, Can be inserted in slot from above	-	5	TPE-U(PUR)	-	10	-	-	Contact-based, bipolar	-40	70	-	-	58.3	543863	1 pieces
Data sheet	-	PA, High-alloy stainless steel	IP65, IP68	5-30	5-30	500	Screwed tightly, Can be inserted in slot from above	-	7.5	TPE-U(PUR)	-	10	-	-	Contact-based, bipolar	-40	70	-	-	86.8	543876	1 pieces
Data sheet	-	PA, High-alloy stainless steel	IP65, IP68	5-30	5-30	80	Screwed tightly, Can be inserted in slot from above	-	2.5	TPE-U(PUR)	-	2.4	-	-	Contact-based, bipolar	-40	70	-	-	26.3	543872	1 pieces
Data sheet	for round slot	PPS, High-alloy stainless steel	IP65, IP67	12-27	12-27	100	Clamped in round slot, Can be inserted in slot lengthwise	-	2.5	TPE-U(PUR)	500	1	0.1	-	Contact-based, bipolar	-20	70	3-wire, Cable	-	20	173210	1 pieces
Data sheet	for round slot	Brass, PPS, TPE-U(PU), High-alloy stainless steel, Nickel-plated	IP65, IP67	12-27	12-27	100	Clamped in round slot, Can be inserted in slot lengthwise	-	0.3	TPE-U(PUR)	500	1	0.1	-	Contact-based, bipolar	-20	70	3-pin, Cable with plug, M8x1	-	5	173212	1 pieces
Data sheet	for round slot	PA-reinforced, High-alloy stainless steel	IP65, IP68	5-30	5-30	300	Screwed tightly, Can be inserted in slot from above	Any	0.3	TPE-U(PUR)	50	9	-	0.4	Contact-based, bipolar	-40	70	-	0.2	6.7	551367	1 pieces
Data sheet	for round slot	PA-reinforced, High-alloy stainless steel	IP65, IP68	5-30	5-30	300	Screwed tightly, Can be inserted in slot from above	Any	2.5	TPE-U(PUR)	50	9	-	0.4	Contact-based, bipolar	-40	70	-	0.2	16.8	551365	1 pieces
Data sheet	for round slot	PA-reinforced, High-alloy stainless steel	IP65, IP68	5-30	5-30	100	Screwed tightly, Can be inserted in slot from above	Any	2.5	TPE-U(PUR)	50	3	-	0.4	Contact-based, bipolar	-40	70	-	0.2	14.6	551369	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

116.94 € ( 139.16 € )	4 working days
116.94 € ( 139.16 € )	4 working days
130.25 € ( 155.00 € )	4 working days
110.29 € ( 131.25 € )	4 working days
110.29 € ( 131.25 € )	4 working days
44.14 € ( 52.53 € )	4 working days
43.28 € ( 51.50 € )	7 working days
39.49 € ( 46.99 € )	7 working days
43.28 € ( 51.50 € )	7 working days
43.28 € ( 51.50 € )	7 working days
39.26 € ( 46.72 € )	4 working days
36.43 € ( 43.35 € )	4 working days
27.68 € ( 32.94 € )	7 working days
26.22 € ( 31.20 € )	7 working days
29.85 € ( 35.52 € )	7 working days
33.49 € ( 39.85 € )	4 working days
26.22 € ( 31.20 € )	4 working days
46.75 € ( 55.63 € )	4 working days
51.29 € ( 61.04 € )	4 working days
34.82 € ( 41.44 € )	7 working days
33.25 € ( 39.57 € )	7 working days
33.25 € ( 39.57 € )	4 working days

More Information

Basic information

Basic information

[Specifications]
・Measuring principle: Magnetic reed
・Design: Block design, for T-slot, for round slot
・Degree of protection: IP65, IP67 / IP65, IP68 / IP67 / IP68

[Features]
・Measuring principle: magneto-resistive
・To EU Explosion Protection Directive (ATEX)
・Insertable in the slot from above, screw-clamped
・SME Series
