Configure

Stroke: L(mm)
- 10
- 25
- 40
- 50
- 80
- 100
Piston rod material
- Case-hardened steel
- High-alloy stainless steel
Piston diameter(mm)
- 10
- 16
- 20
- 25
- 32
Theoretical force at 6 bar, retracting(N)
- 60
- 180
- 282
- 452
- 724
Theoretical force at 6 bar, advancing(N)
- 60
- 180
- 282
- 452
- 724
Pneumatic connection
- G1/8
- M5
Impact energy in the end positions(J)
- 0.08
- 0.15
- 0.2
- 0.3
- 0.5
Guide
- Recirculating ball bearing guide
- Sliding guide
Corrosion resistance class (CRC)
- 0 - No corrosion stress
- 2 - Moderate corrosion stress
Est. shipping days
- All
- Within 3 working days
- Within 4 working days
- Within 5 working days
- Within 6 working days
- Within 12 working days
- Within 17 working days
- Within 18 working days
- Within 22 working days
- Within 23 working days
- Within 28 working days

Dual piston rod cylinder, DPZJ Series

Click image to view enlarged image

Catalog

Part number:

Still undefined. 56 possible part numbers found.

Part number list
Catalog

Part number list

Number of items

Part number

DPZJ-16-100-P-A-KF-S2

DPZJ-20-100-P-A-KF-S2

DPZJ-25-100-P-A-KF-S2

DPZJ-32-100-P-A-KF-S2

DPZJ-32-100-P-A-S2

Stroke: L

(mm)

Operating Pressure

(MPa)

Piston rod material

Piston diameter

(mm)

Theoretical force at 6 bar, retracting

(N)

Theoretical force at 6 bar, advancing

(N)

Pneumatic connection

Impact energy in the end positions

(J)

Guide

Corrosion resistance class (CRC)

Manufacturer part #

Minimum order quantity

Data sheet	10	0.25～1	Case-hardened steel	10	60	60	M5	0.08	Recirculating ball bearing guide	0 - No corrosion stress	162016	1 pieces
Data sheet	10	0.25～1	High-alloy stainless steel	10	60	60	M5	0.08	Sliding guide	2 - Moderate corrosion stress	159940	1 pieces
Data sheet	25	0.25～1	Case-hardened steel	10	60	60	M5	0.08	Recirculating ball bearing guide	0 - No corrosion stress	162017	1 pieces
Data sheet	25	0.25～1	High-alloy stainless steel	10	60	60	M5	0.08	Sliding guide	2 - Moderate corrosion stress	159941	1 pieces
Data sheet	40	0.25～1	Case-hardened steel	10	60	60	M5	0.08	Recirculating ball bearing guide	0 - No corrosion stress	162018	1 pieces
Data sheet	40	0.25～1	High-alloy stainless steel	10	60	60	M5	0.08	Sliding guide	2 - Moderate corrosion stress	159942	1 pieces
Data sheet	50	0.25～1	Case-hardened steel	10	60	60	M5	0.08	Recirculating ball bearing guide	0 - No corrosion stress	162019	1 pieces
Data sheet	50	0.25～1	High-alloy stainless steel	10	60	60	M5	0.08	Sliding guide	2 - Moderate corrosion stress	159943	1 pieces
Data sheet	10	0.1～1	Case-hardened steel	16	180	180	M5	0.15	Recirculating ball bearing guide	0 - No corrosion stress	162047	1 pieces
Data sheet	10	0.1～1	High-alloy stainless steel	16	180	180	M5	0.15	Sliding guide	2 - Moderate corrosion stress	159945	1 pieces
Data sheet	25	0.1～1	Case-hardened steel	16	180	180	M5	0.15	Recirculating ball bearing guide	0 - No corrosion stress	162048	1 pieces
Data sheet	25	0.1～1	High-alloy stainless steel	16	180	180	M5	0.15	Sliding guide	2 - Moderate corrosion stress	159946	1 pieces
Data sheet	40	0.1～1	Case-hardened steel	16	180	180	M5	0.15	Recirculating ball bearing guide	0 - No corrosion stress	162049	1 pieces
Data sheet	40	0.1～1	High-alloy stainless steel	16	180	180	M5	0.15	Sliding guide	2 - Moderate corrosion stress	159947	1 pieces
Data sheet	50	0.1～1	Case-hardened steel	16	180	180	M5	0.15	Recirculating ball bearing guide	0 - No corrosion stress	162050	1 pieces
Data sheet	50	0.1～1	High-alloy stainless steel	16	180	180	M5	0.15	Sliding guide	2 - Moderate corrosion stress	159948	1 pieces
Data sheet	80	0.1～1	Case-hardened steel	16	180	180	M5	0.15	Recirculating ball bearing guide	0 - No corrosion stress	162051	1 pieces
Data sheet	80	0.1～1	High-alloy stainless steel	16	180	180	M5	0.15	Sliding guide	2 - Moderate corrosion stress	159949	1 pieces
Data sheet	100	0.1～1	Case-hardened steel	16	180	180	M5	0.15	Recirculating ball bearing guide	0 - No corrosion stress	162052	1 pieces
Data sheet	100	0.1～1	High-alloy stainless steel	16	180	180	M5	0.15	Sliding guide	2 - Moderate corrosion stress	159950	1 pieces
Data sheet	10	0.1～1	Case-hardened steel	20	282	282	M5	0.2	Recirculating ball bearing guide	0 - No corrosion stress	162082	1 pieces
Data sheet	10	0.1～1	High-alloy stainless steel	20	282	282	M5	0.2	Sliding guide	2 - Moderate corrosion stress	159952	1 pieces
Data sheet	25	0.1～1	Case-hardened steel	20	282	282	M5	0.2	Recirculating ball bearing guide	0 - No corrosion stress	162083	1 pieces
Data sheet	25	0.1～1	High-alloy stainless steel	20	282	282	M5	0.2	Sliding guide	2 - Moderate corrosion stress	159953	1 pieces
Data sheet	40	0.1～1	Case-hardened steel	20	282	282	M5	0.2	Recirculating ball bearing guide	0 - No corrosion stress	162084	1 pieces
Data sheet	40	0.1～1	High-alloy stainless steel	20	282	282	M5	0.2	Sliding guide	2 - Moderate corrosion stress	159954	1 pieces
Data sheet	50	0.1～1	Case-hardened steel	20	282	282	M5	0.2	Recirculating ball bearing guide	0 - No corrosion stress	162085	1 pieces
Data sheet	50	0.1～1	High-alloy stainless steel	20	282	282	M5	0.2	Sliding guide	2 - Moderate corrosion stress	159955	1 pieces
Data sheet	80	0.1～1	Case-hardened steel	20	282	282	M5	0.2	Recirculating ball bearing guide	0 - No corrosion stress	162086	1 pieces
Data sheet	80	0.1～1	High-alloy stainless steel	20	282	282	M5	0.2	Sliding guide	2 - Moderate corrosion stress	159956	1 pieces
Data sheet	100	0.1～1	Case-hardened steel	20	282	282	M5	0.2	Recirculating ball bearing guide	0 - No corrosion stress	162087	1 pieces
Data sheet	100	0.1～1	High-alloy stainless steel	20	282	282	M5	0.2	Sliding guide	2 - Moderate corrosion stress	159957	1 pieces
Data sheet	10	0.1～1	Case-hardened steel	25	452	452	M5	0.3	Recirculating ball bearing guide	0 - No corrosion stress	162117	1 pieces
Data sheet	10	0.1～1	High-alloy stainless steel	25	452	452	M5	0.3	Sliding guide	2 - Moderate corrosion stress	159959	1 pieces
Data sheet	25	0.1～1	Case-hardened steel	25	452	452	M5	0.3	Recirculating ball bearing guide	0 - No corrosion stress	162118	1 pieces
Data sheet	25	0.1～1	High-alloy stainless steel	25	452	452	M5	0.3	Sliding guide	2 - Moderate corrosion stress	159960	1 pieces
Data sheet	40	0.1～1	Case-hardened steel	25	452	452	M5	0.3	Recirculating ball bearing guide	0 - No corrosion stress	162119	1 pieces
Data sheet	40	0.1～1	High-alloy stainless steel	25	452	452	M5	0.3	Sliding guide	2 - Moderate corrosion stress	159961	1 pieces
Data sheet	50	0.1～1	Case-hardened steel	25	452	452	M5	0.3	Recirculating ball bearing guide	0 - No corrosion stress	162120	1 pieces
Data sheet	50	0.1～1	High-alloy stainless steel	25	452	452	M5	0.3	Sliding guide	2 - Moderate corrosion stress	159962	1 pieces
Data sheet	80	0.1～1	Case-hardened steel	25	452	452	M5	0.3	Recirculating ball bearing guide	0 - No corrosion stress	162121	1 pieces
Data sheet	80	0.1～1	High-alloy stainless steel	25	452	452	M5	0.3	Sliding guide	2 - Moderate corrosion stress	159963	1 pieces
Data sheet	100	0.1～1	Case-hardened steel	25	452	452	M5	0.3	Recirculating ball bearing guide	0 - No corrosion stress	162122	1 pieces
Data sheet	100	0.1～1	High-alloy stainless steel	25	452	452	M5	0.3	Sliding guide	2 - Moderate corrosion stress	159964	1 pieces
Data sheet	10	0.1～1	Case-hardened steel	32	724	724	G1/8	0.5	Recirculating ball bearing guide	0 - No corrosion stress	162152	1 pieces
Data sheet	10	0.1～1	High-alloy stainless steel	32	724	724	G1/8	0.5	Sliding guide	2 - Moderate corrosion stress	159969	1 pieces
Data sheet	25	0.1～1	Case-hardened steel	32	724	724	G1/8	0.5	Recirculating ball bearing guide	0 - No corrosion stress	162153	1 pieces
Data sheet	25	0.1～1	High-alloy stainless steel	32	724	724	G1/8	0.5	Sliding guide	2 - Moderate corrosion stress	159970	1 pieces
Data sheet	40	0.1～1	Case-hardened steel	32	724	724	G1/8	0.5	Recirculating ball bearing guide	0 - No corrosion stress	162154	1 pieces
Data sheet	40	0.1～1	High-alloy stainless steel	32	724	724	G1/8	0.5	Sliding guide	2 - Moderate corrosion stress	159971	1 pieces
Data sheet	50	0.1～1	Case-hardened steel	32	724	724	G1/8	0.5	Recirculating ball bearing guide	0 - No corrosion stress	162155	1 pieces
Data sheet	50	0.1～1	High-alloy stainless steel	32	724	724	G1/8	0.5	Sliding guide	2 - Moderate corrosion stress	159972	1 pieces
Data sheet	80	0.1～1	Case-hardened steel	32	724	724	G1/8	0.5	Recirculating ball bearing guide	0 - No corrosion stress	162156	1 pieces
Data sheet	80	0.1～1	High-alloy stainless steel	32	724	724	G1/8	0.5	Sliding guide	2 - Moderate corrosion stress	159973	1 pieces
Data sheet	100	0.1～1	Case-hardened steel	32	724	724	G1/8	0.5	Recirculating ball bearing guide	0 - No corrosion stress	162157	1 pieces
Data sheet	100	0.1～1	High-alloy stainless steel	32	724	724	G1/8	0.5	Sliding guide	2 - Moderate corrosion stress	159974	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

678.77 € ( 807.74 € )	28 working days
524.52 € ( 624.18 € )	17 working days
701.69 € ( 835.01 € )	28 working days
542.85 € ( 645.99 € )	22 working days
724.63 € ( 862.31 € )	4 working days
561.15 € ( 667.77 € )	22 working days
739.94 € ( 880.53 € )	28 working days
573.37 € ( 682.31 € )	22 working days
735.80 € ( 875.60 € )	3 working days
588.32 € ( 700.10 € )	22 working days
781.58 € ( 930.08 € )	28 working days
612.60 € ( 728.99 € )	22 working days
827.35 € ( 984.55 € )	28 working days
636.91 € ( 757.92 € )	22 working days
857.86 € ( 1,020.85 € )	28 working days
653.11 € ( 777.20 € )	4 working days
949.40 € ( 1,129.79 € )	4 working days
701.69 € ( 835.01 € )	17 working days
1,010.40 € ( 1,202.38 € )	28 working days
734.08 € ( 873.56 € )	22 working days
781.94 € ( 930.51 € )	4 working days
633.63 € ( 754.02 € )	22 working days
827.80 € ( 985.08 € )	28 working days
662.09 € ( 787.89 € )	22 working days
873.66 € ( 1,039.66 € )	28 working days
690.62 € ( 821.84 € )	22 working days
904.25 € ( 1,076.06 € )	6 working days
709.58 € ( 844.40 € )	17 working days
995.98 € ( 1,185.22 € )	3 working days
766.54 € ( 912.18 € )	22 working days
1,057.09 € ( 1,257.94 € )	18 working days
804.51 € ( 957.37 € )	5 working days
853.95 € ( 1,016.20 € )	3 working days
690.12 € ( 821.24 € )	22 working days
901.20 € ( 1,072.43 € )	28 working days
723.92 € ( 861.46 € )	22 working days
948.49 € ( 1,128.70 € )	3 working days
757.71 € ( 901.67 € )	22 working days
980.02 € ( 1,166.22 € )	28 working days
780.25 € ( 928.50 € )	22 working days
1,074.55 € ( 1,278.71 € )	28 working days
847.85 € ( 1,008.94 € )	22 working days
1,137.58 € ( 1,353.72 € )	3 working days
892.91 € ( 1,062.56 € )	22 working days
1,082.52 € ( 1,288.20 € )	3 working days
770.42 € ( 916.80 € )	22 working days
1,135.06 € ( 1,350.72 € )	28 working days
811.80 € ( 966.04 € )	23 working days
1,187.60 € ( 1,413.24 € )	32 working days
853.20 € ( 1,015.31 € )	12 working days
1,222.62 € ( 1,454.92 € )	28 working days
880.78 € ( 1,048.13 € )	4 working days
1,327.62 € ( 1,579.87 € )	3 working days
963.58 € ( 1,146.66 € )	17 working days
1,397.66 € ( 1,663.22 € )	4 working days
1,018.78 € ( 1,212.35 € )	22 working days

Catalog

Products homepage

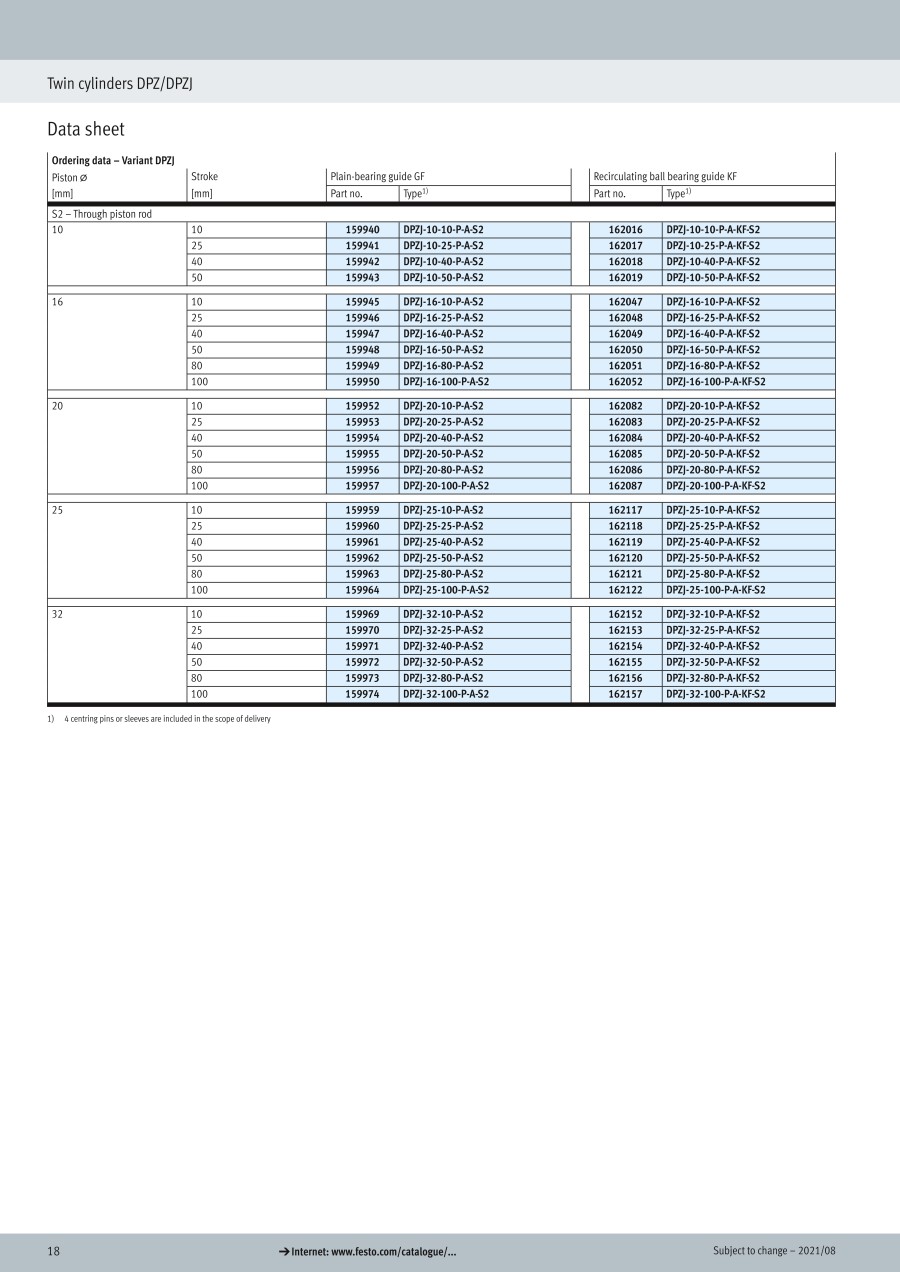

Catalog (2-page spread)
