Short-stroke cylinder, AEVC Series

Click image to view enlarged image

Catalog

Part number:

Still undefined. 40 possible part numbers found.

Part number list
Catalog

Part number list

Number of items

Part number

Stroke: L

(mm)

Operating Pressure

(MPa)

Piston diameter

(mm)

Theoretical force at 6 bar, advancing

(N)

Pneumatic connection

Moving mass

(g)

Spring resetting force with piston rod in retracted position

(N)

Manufacturer part #

Weight

Minimum order quantity

Data sheet	5	0.15～1	12	61	M5	4.4	4	188086	24	1 pieces
Data sheet	5	0.15～1	12	61	M5	4.4	4	188082	24	1 pieces
Data sheet	10	0.15～1	12	59	M5	6.9	4	188087	40	1 pieces
Data sheet	10	0.15～1	12	59	M5	6.9	4	188083	40	1 pieces
Data sheet	5	0.15～1	16	115	M5	8	5	188105	60	1 pieces
Data sheet	5	0.15～1	16	115	M5	8	5	188099	60	1 pieces
Data sheet	10	0.15～1	16	112	M5	11	5	188106	80	1 pieces
Data sheet	10	0.15～1	16	112	M5	11	5	188100	80	1 pieces
Data sheet	25	0.15～1	16	105	M5	19	5	188107	150	1 pieces
Data sheet	25	0.15～1	16	105	M5	19	5	188101	150	1 pieces
Data sheet	5	0.15～1	20	180	M5	14	5	188137	85	1 pieces
Data sheet	5	0.15～1	20	180	M5	14	5	188131	85	1 pieces
Data sheet	10	0.15～1	20	170	M5	21	10	188138	130	1 pieces
Data sheet	10	0.15～1	20	170	M5	21	10	188132	130	1 pieces
Data sheet	25	0.15～1	20	170	M5	32	10	188139	200	1 pieces
Data sheet	25	0.15～1	20	170	M5	32	10	188133	200	1 pieces
Data sheet	5	0.15～1	25	272	M5	22	15	188169	130	1 pieces
Data sheet	5	0.15～1	25	272	M5	22	15	188163	130	1 pieces
Data sheet	10	0.15～1	25	272	M5	25	15	188170	160	1 pieces
Data sheet	10	0.15～1	25	272	M5	25	15	188164	160	1 pieces
Data sheet	25	0.15～1	25	268	M5	37	15	188171	250	1 pieces
Data sheet	25	0.15～1	25	268	M5	37	15	188165	250	1 pieces
Data sheet	5	0.1～1	32	455	G1/8	40	22	188201	220	1 pieces
Data sheet	5	0.1～1	32	455	G1/8	40	22	188195	220	1 pieces
Data sheet	10	0.1～1	32	450	G1/8	48	22	188202	290	1 pieces
Data sheet	10	0.1～1	32	450	G1/8	48	22	188196	290	1 pieces
Data sheet	25	0.1～1	32	450	G1/8	62	22	188203	400	1 pieces
Data sheet	25	0.1～1	32	450	G1/8	62	22	188197	400	1 pieces
Data sheet	10	0.1～1	40	708	G1/8	65	28	188230	370	1 pieces
Data sheet	10	0.1～1	40	708	G1/8	65	28	188226	370	1 pieces
Data sheet	25	0.1～1	40	707	G1/8	83	28	188231	560	1 pieces
Data sheet	25	0.1～1	40	707	G1/8	83	28	188227	560	1 pieces
Data sheet	10	0.1～1	50	1118	G1/8	105	40	188258	410	1 pieces
Data sheet	10	0.1～1	50	1118	G1/8	105	40	188254	410	1 pieces
Data sheet	25	0.1～1	50	1121	G1/8	140	40	188259	680	1 pieces
Data sheet	25	0.1～1	50	1121	G1/8	140	40	188255	680	1 pieces
Data sheet	10	0.1～1	63	1799	G1/8	157	50	188282	490	1 pieces
Data sheet	10	0.1～1	63	1799	G1/8	157	50	188278	490	1 pieces
Data sheet	25	0.1～1	63	1799	G1/8	191	50	188283	770	1 pieces
Data sheet	25	0.1～1	63	1799	G1/8	191	50	188279	770	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

42.91 € ( 51.06 € )	10 working days
42.91 € ( 51.06 € )	4 working days
43.38 € ( 51.62 € )	4 working days
43.38 € ( 51.62 € )	4 working days
48.15 € ( 57.30 € )	4 working days
48.15 € ( 57.30 € )	4 working days
48.78 € ( 58.05 € )	4 working days
48.78 € ( 58.05 € )	3 working days
50.68 € ( 60.31 € )	4 working days
50.68 € ( 60.31 € )	4 working days
51.78 € ( 61.62 € )	4 working days
51.78 € ( 61.62 € )	4 working days
52.62 € ( 62.62 € )	3 working days
52.62 € ( 62.62 € )	4 working days
55.14 € ( 65.62 € )	4 working days
55.14 € ( 65.62 € )	4 working days
58.31 € ( 69.39 € )	4 working days
58.31 € ( 69.39 € )	4 working days
59.71 € ( 71.05 € )	4 working days
59.71 € ( 71.05 € )	4 working days
63.97 € ( 76.12 € )	4 working days
63.97 € ( 76.12 € )	4 working days
66.46 € ( 79.09 € )	4 working days
66.46 € ( 79.09 € )	4 working days
68.85 € ( 81.93 € )	4 working days
68.85 € ( 81.93 € )	4 working days
76.05 € ( 90.50 € )	4 working days
76.05 € ( 90.50 € )	4 working days
91.65 € ( 109.06 € )	4 working days
91.65 € ( 109.06 € )	4 working days
99.85 € ( 118.82 € )	4 working days
99.85 € ( 118.82 € )	4 working days
112.82 € ( 134.26 € )	4 working days
112.82 € ( 134.26 € )	3 working days
122.15 € ( 145.36 € )	4 working days
122.15 € ( 145.36 € )	4 working days
142.15 € ( 169.16 € )	4 working days
142.15 € ( 169.16 € )	4 working days
152.55 € ( 181.53 € )	4 working days
152.55 € ( 181.53 € )	4 working days

Catalog

Products homepage

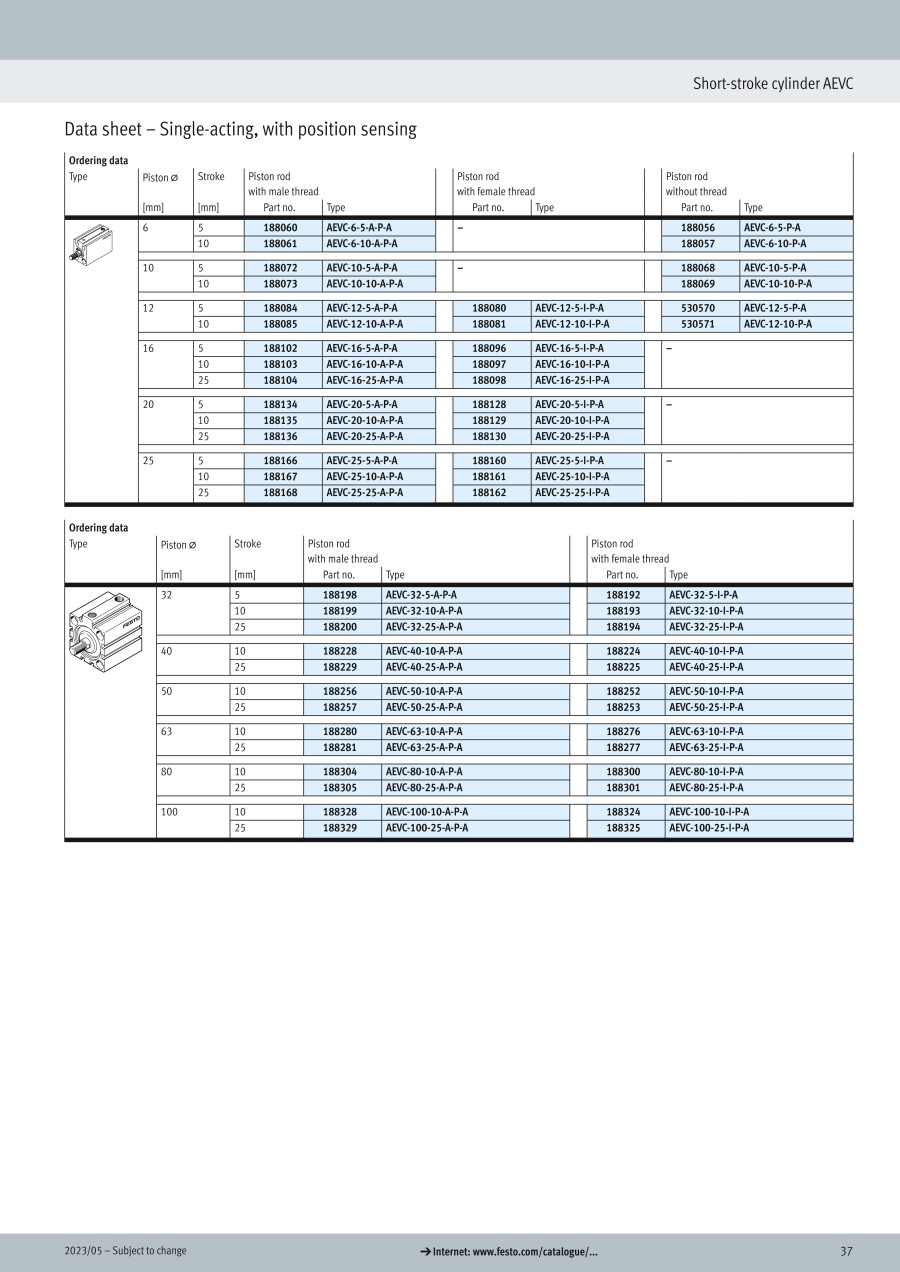

Catalog (2-page spread)
