Configure

Stroke: L(mm)
- 5
- 10
- 15
- 20
- 25
- 30
- 40
- 50
- 60
- 80
Piston rod material
- High-alloy stainless steel
- High-alloy steel
Flange screws material
- High-alloy stainless steel
- Steel, galvanized
Piston diameter(mm)
- 12
- 16
- 20
- 25
- 32
- 40
- 50
- 63
- 80
- 100
- 125
Theoretical force at 6 bar, retracting(N)
- 51
- 90
- 91
- 141
- 247
- 415
- 686
- 1057
- 1750
- 2827
- 4418
- 6881
Theoretical force at 6 bar, advancing(N)
- 68
- 121
- 188
- 295
- 483
- 754
- 1178
- 1870
- 3016
- 4712
- 7363
Pneumatic connection
- G1/4
- G1/8
- M5
Piston rod end
- External thread
- Internal thread
Impact energy in the end positions(J)
- 0.07
- 0.1
- 0.14
- 0.4
- 0.52
- 0.64
- 0.7
- 0.75
- 1
- 3.3
Moving mass at 0 mm stroke(g)
- 8
- 12
- 20
- 26
- 49
- 63
- 112
- 134
- 307
- 614
- 1317
Additional weight per 10 mm stroke(g)
- 15
- 23
- 28
- 40
- 59
- 72
- 107
- 168
- 177
Basic weight with 0 mm stroke(g)
- 87
- 89
- 149
- 180
- 300
- 433
- 560
- 1059
- 1772
- 2797
- 3426
Additional moving mass per 10 mm stroke(g)
- 2
- 4
- 6
- 9
- 16
- 25
- 38
- 63
Est. shipping days
- All
- Within 3 working days
- Within 4 working days
- Within 6 working days
- Within 7 working days
- Within 8 working days
- Within 9 working days
- Within 10 working days
- Within 11 working days
- Within 12 working days
- Within 13 working days

Compact air cylinder, ADVU Series

Catalog

Part number:

Still undefined. 190 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Order suspended

Stroke: L

(mm)

Operating Pressure

(MPa)

Piston rod material

Flange screws material

Piston diameter

(mm)

Theoretical force at 6 bar, retracting

(N)

Theoretical force at 6 bar, advancing

(N)

Pneumatic connection

Piston rod end

Impact energy in the end positions

(J)

Moving mass at 0 mm stroke

(g)

Additional weight per 10 mm stroke

(g)

Basic weight with 0 mm stroke

(g)

Additional moving mass per 10 mm stroke

(g)

Manufacturer part #

Weight

Minimum order quantity

Data sheet	5	0.12～1	High-alloy stainless steel	High-alloy stainless steel	12	51	68	M5	External thread	0.07	8	15	87	2	156586	87	1 pieces
Data sheet	5	0.12～1	High-alloy stainless steel	High-alloy stainless steel	12	51	68	M5	Internal thread	0.07	8	15	87	2	156500	87	1 pieces
Data sheet	10	0.12～1	High-alloy stainless steel	High-alloy stainless steel	12	51	68	M5	External thread	0.07	8	15	87	2	156587	87	1 pieces
Data sheet	10	0.12～1	High-alloy stainless steel	High-alloy stainless steel	12	51	68	M5	Internal thread	0.07	8	15	87	2	156501	87	1 pieces
Data sheet	15	0.12～1	High-alloy stainless steel	High-alloy stainless steel	12	51	68	M5	External thread	0.07	8	15	87	2	156588	87	1 pieces
Data sheet	15	0.12～1	High-alloy stainless steel	High-alloy stainless steel	12	51	68	M5	Internal thread	0.07	8	15	87	2	156502	87	1 pieces
Data sheet	20	0.12～1	High-alloy stainless steel	High-alloy stainless steel	12	51	68	M5	External thread	0.07	8	15	87	2	156589	87	1 pieces
Data sheet	20	0.12～1	High-alloy stainless steel	High-alloy stainless steel	12	51	68	M5	Internal thread	0.07	8	15	87	2	156503	87	1 pieces
Data sheet	25	0.12～1	High-alloy stainless steel	High-alloy stainless steel	12	51	68	M5	External thread	0.07	8	15	87	2	156590	87	1 pieces
Data sheet	25	0.12～1	High-alloy stainless steel	High-alloy stainless steel	12	51	68	M5	Internal thread	0.07	8	15	87	2	156504	87	1 pieces
Data sheet	30	0.12～1	High-alloy stainless steel	High-alloy stainless steel	12	51	68	M5	External thread	0.07	8	15	87	2	156591	87	1 pieces
Data sheet	30	0.12～1	High-alloy stainless steel	High-alloy stainless steel	12	51	68	M5	Internal thread	0.07	8	15	87	2	156505	87	1 pieces
Data sheet	40	0.12～1	High-alloy stainless steel	High-alloy stainless steel	12	51	68	M5	External thread	0.07	8	15	87	2	156592	87	1 pieces
Data sheet	40	0.12～1	High-alloy stainless steel	High-alloy stainless steel	12	51	68	M5	Internal thread	0.07	8	15	87	2	156506	87	1 pieces
Data sheet	5	0.12～1	High-alloy stainless steel	High-alloy stainless steel	16	90	121	M5	External thread	0.1	12	15	89	4	156593	89	1 pieces
Data sheet	5	0.12～1	High-alloy stainless steel	High-alloy stainless steel	16	90	121	M5	Internal thread	0.1	12	15	89	4	156507	89	1 pieces
Data sheet	10	0.12～1	High-alloy stainless steel	High-alloy stainless steel	16	90	121	M5	External thread	0.1	12	15	89	4	156594	89	1 pieces
Data sheet	10	0.12～1	High-alloy stainless steel	High-alloy stainless steel	16	90	121	M5	Internal thread	0.1	12	15	89	4	156508	89	1 pieces
Data sheet	15	0.12～1	High-alloy stainless steel	High-alloy stainless steel	16	90	121	M5	External thread	0.1	12	15	89	4	156595	89	1 pieces
Data sheet	15	0.12～1	High-alloy stainless steel	High-alloy stainless steel	16	90	121	M5	Internal thread	0.1	12	15	89	4	156509	89	1 pieces
Data sheet	20	0.12～1	High-alloy stainless steel	High-alloy stainless steel	16	90	121	M5	External thread	0.1	12	15	89	4	156596	89	1 pieces
Data sheet	20	0.12～1	High-alloy stainless steel	High-alloy stainless steel	16	90	121	M5	Internal thread	0.1	12	15	89	4	156510	89	1 pieces
Data sheet	25	0.12～1	High-alloy stainless steel	High-alloy stainless steel	16	90	121	M5	External thread	0.1	12	15	89	4	156597	89	1 pieces
Data sheet	25	0.12～1	High-alloy stainless steel	High-alloy stainless steel	16	90	121	M5	Internal thread	0.1	12	15	89	4	156511	89	1 pieces
Data sheet	30	0.12～1	High-alloy stainless steel	High-alloy stainless steel	16	90	121	M5	External thread	0.1	12	15	89	4	156598	89	1 pieces
Data sheet	30	0.12～1	High-alloy stainless steel	High-alloy stainless steel	16	90	121	M5	Internal thread	0.1	12	15	89	4	156512	89	1 pieces
Data sheet	40	0.12～1	High-alloy stainless steel	High-alloy stainless steel	16	91	121	M5	External thread	0.1	12	15	89	4	156599	89	1 pieces
Data sheet	40	0.12～1	High-alloy stainless steel	High-alloy stainless steel	16	90	121	M5	Internal thread	0.1	12	15	89	4	156513	89	1 pieces
Data sheet	5	0.1～1	High-alloy stainless steel	Steel, galvanized	20	141	188	M5	External thread	0.14	20	23	149	6	156600	149	1 pieces
Data sheet	5	0.1～1	High-alloy stainless steel	Steel, galvanized	20	141	188	M5	Internal thread	0.14	20	23	149	6	156514	149	1 pieces
Data sheet	10	0.1～1	High-alloy stainless steel	Steel, galvanized	20	141	188	M5	External thread	0.14	20	23	149	6	156601	149	1 pieces
Data sheet	10	0.1～1	High-alloy stainless steel	Steel, galvanized	20	141	188	M5	Internal thread	0.14	20	23	149	6	156515	149	1 pieces
Data sheet	15	0.1～1	High-alloy stainless steel	Steel, galvanized	20	141	188	M5	External thread	0.14	20	23	149	6	156602	149	1 pieces
Data sheet	15	0.1～1	High-alloy stainless steel	Steel, galvanized	20	141	188	M5	Internal thread	0.14	20	23	149	6	156516	149	1 pieces
Data sheet	20	0.1～1	High-alloy stainless steel	Steel, galvanized	20	141	188	M5	External thread	0.14	20	23	149	6	156603	149	1 pieces
Data sheet	20	0.1～1	High-alloy stainless steel	Steel, galvanized	20	141	188	M5	Internal thread	0.14	20	23	149	6	156517	149	1 pieces
Data sheet	25	0.1～1	High-alloy stainless steel	Steel, galvanized	20	141	188	M5	External thread	0.14	20	23	149	6	156604	149	1 pieces
Data sheet	25	0.1～1	High-alloy stainless steel	Steel, galvanized	20	141	188	M5	Internal thread	0.14	20	23	149	6	156518	149	1 pieces
Data sheet	30	0.1～1	High-alloy stainless steel	Steel, galvanized	20	141	188	M5	External thread	0.14	20	23	149	6	156605	149	1 pieces
Data sheet	30	0.1～1	High-alloy stainless steel	Steel, galvanized	20	141	188	M5	Internal thread	0.14	20	23	149	6	156519	149	1 pieces
Data sheet	40	0.1～1	High-alloy stainless steel	Steel, galvanized	20	141	188	M5	External thread	0.14	20	23	149	6	156606	149	1 pieces
Data sheet	40	0.1～1	High-alloy stainless steel	Steel, galvanized	20	141	188	M5	Internal thread	0.14	20	23	149	6	156520	149	1 pieces
Data sheet	50	0.1～1	High-alloy stainless steel	Steel, galvanized	20	141	188	M5	External thread	0.14	20	23	149	6	156607	149	1 pieces
Data sheet	50	0.1～1	High-alloy stainless steel	Steel, galvanized	20	141	188	M5	Internal thread	0.14	20	23	149	6	156521	149	1 pieces
Data sheet	5	0.1～1	High-alloy stainless steel	Steel, galvanized	25	247	295	M5	External thread	0.1	26	28	180	6	156608	180	1 pieces
Data sheet	5	0.1～1	High-alloy stainless steel	Steel, galvanized	25	247	295	M5	Internal thread	0.1	26	28	180	6	156522	180	1 pieces
Data sheet	10	0.1～1	High-alloy stainless steel	Steel, galvanized	25	247	295	M5	External thread	0.1	26	28	180	6	156609	180	1 pieces
Data sheet	10	0.1～1	High-alloy stainless steel	Steel, galvanized	25	247	295	M5	Internal thread	0.1	26	28	180	6	156523	180	1 pieces
Data sheet	15	0.1～1	High-alloy stainless steel	Steel, galvanized	25	247	295	M5	External thread	0.1	26	28	180	6	156610	180	1 pieces
Data sheet	15	0.1～1	High-alloy stainless steel	Steel, galvanized	25	247	295	M5	Internal thread	0.1	26	28	180	6	156524	180	1 pieces
Data sheet	20	0.1～1	High-alloy stainless steel	Steel, galvanized	25	247	295	M5	External thread	0.1	26	28	180	6	156611	180	1 pieces
Data sheet	20	0.1～1	High-alloy stainless steel	Steel, galvanized	25	247	295	M5	Internal thread	0.1	26	28	180	6	156525	180	1 pieces
Data sheet	25	0.1～1	High-alloy stainless steel	Steel, galvanized	25	247	295	M5	External thread	0.1	26	28	180	6	156612	180	1 pieces
Data sheet	25	0.1～1	High-alloy stainless steel	Steel, galvanized	25	247	295	M5	Internal thread	0.1	26	28	180	6	156526	180	1 pieces
Data sheet	30	0.1～1	High-alloy stainless steel	Steel, galvanized	25	247	295	M5	External thread	0.1	26	28	180	6	156613	180	1 pieces
Data sheet	30	0.1～1	High-alloy stainless steel	Steel, galvanized	25	247	295	M5	Internal thread	0.1	26	28	180	6	156527	180	1 pieces
Data sheet	40	0.1～1	High-alloy stainless steel	Steel, galvanized	25	247	295	M5	External thread	0.1	26	28	180	6	156614	180	1 pieces
Data sheet	40	0.1～1	High-alloy stainless steel	Steel, galvanized	25	247	295	M5	Internal thread	0.1	26	28	180	6	156528	180	1 pieces
Data sheet	50	0.1～1	High-alloy stainless steel	Steel, galvanized	25	247	295	M5	External thread	0.1	26	28	180	6	156615	180	1 pieces
Data sheet	50	0.1～1	High-alloy stainless steel	Steel, galvanized	25	247	295	M5	Internal thread	0.1	26	28	180	6	156529	180	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

113.08 € ( 134.57 € )	4 working days
113.08 € ( 134.57 € )	7 working days
113.94 € ( 135.59 € )	7 working days
113.94 € ( 135.59 € )	4 working days
114.82 € ( 136.64 € )	4 working days
114.82 € ( 136.64 € )	4 working days
115.74 € ( 137.73 € )	4 working days
115.74 € ( 137.73 € )	4 working days
116.58 € ( 138.73 € )	3 working days
116.58 € ( 138.73 € )	4 working days
117.45 € ( 139.77 € )	10 working days
117.45 € ( 139.77 € )	4 working days
119.17 € ( 141.81 € )	3 working days
119.17 € ( 141.81 € )	4 working days
117.68 € ( 140.04 € )	10 working days
117.68 € ( 140.04 € )	4 working days
118.78 € ( 141.35 € )	4 working days
118.78 € ( 141.35 € )	3 working days
119.88 € ( 142.66 € )	4 working days
119.88 € ( 142.66 € )	4 working days
120.94 € ( 143.92 € )	3 working days
120.94 € ( 143.92 € )	6 working days
122.08 € ( 145.28 € )	4 working days
122.08 € ( 145.28 € )	3 working days
123.14 € ( 146.54 € )	4 working days
123.14 € ( 146.54 € )	3 working days
125.32 € ( 149.13 € )	4 working days
125.32 € ( 149.13 € )	4 working days
121.43 € ( 144.50 € )	4 working days
121.43 € ( 144.50 € )	9 working days
122.97 € ( 146.33 € )	4 working days
122.97 € ( 146.33 € )	3 working days
124.48 € ( 148.13 € )	4 working days
124.48 € ( 148.13 € )	3 working days
126.00 € ( 149.94 € )	3 working days
126.00 € ( 149.94 € )	3 working days
127.52 € ( 151.75 € )	4 working days
127.52 € ( 151.75 € )	7 working days
129.06 € ( 153.58 € )	4 working days
129.06 € ( 153.58 € )	3 working days
132.08 € ( 157.18 € )	3 working days
132.08 € ( 157.18 € )	3 working days
135.14 € ( 160.82 € )	7 working days
135.14 € ( 160.82 € )	3 working days
136.03 € ( 161.88 € )	3 working days
136.03 € ( 161.88 € )	7 working days
138.60 € ( 164.93 € )	9 working days
138.60 € ( 164.93 € )	7 working days
141.15 € ( 167.97 € )	3 working days
141.15 € ( 167.97 € )	8 working days
143.75 € ( 171.06 € )	3 working days
143.75 € ( 171.06 € )	10 working days
146.32 € ( 174.12 € )	3 working days
146.32 € ( 174.12 € )	7 working days
148.89 € ( 177.18 € )	3 working days
148.89 € ( 177.18 € )	3 working days
154.00 € ( 183.26 € )	9 working days
154.00 € ( 183.26 € )	4 working days
159.14 € ( 189.38 € )	3 working days
159.14 € ( 189.38 € )	4 working days

Basic information

Basic information

[Specifications]
・Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
・Corrosion resistance class (CRC): 2 - Moderate corrosion stress
・Cylinder Operation Method: Double Acting

[Features]
・50% less installation space than comparable standards-based cylinders to ISO 15552
・Wide range of variants for customised applications
・Piston rod with female or male thread
・For position sensing

Catalog

Products homepage

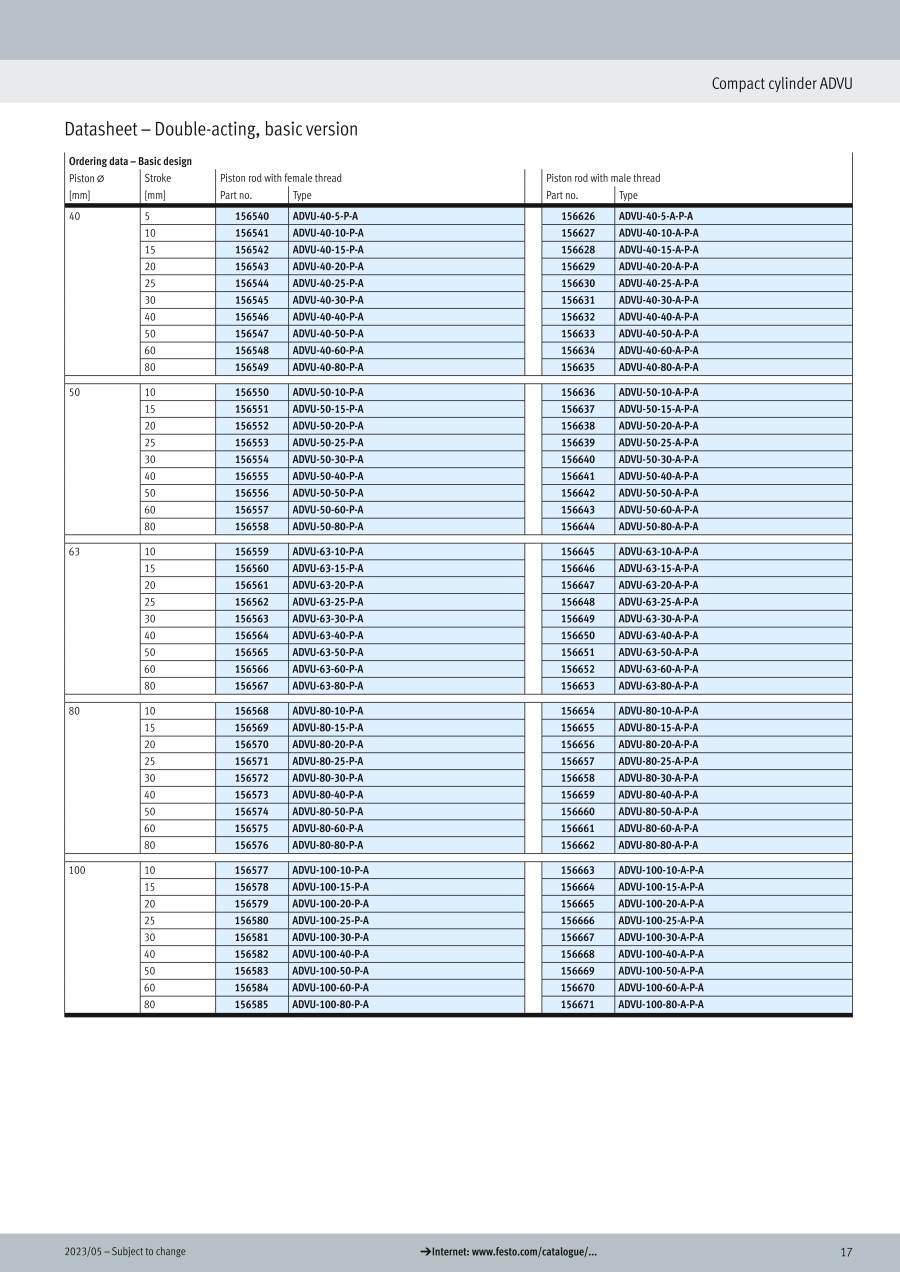

Catalog (2-page spread)
