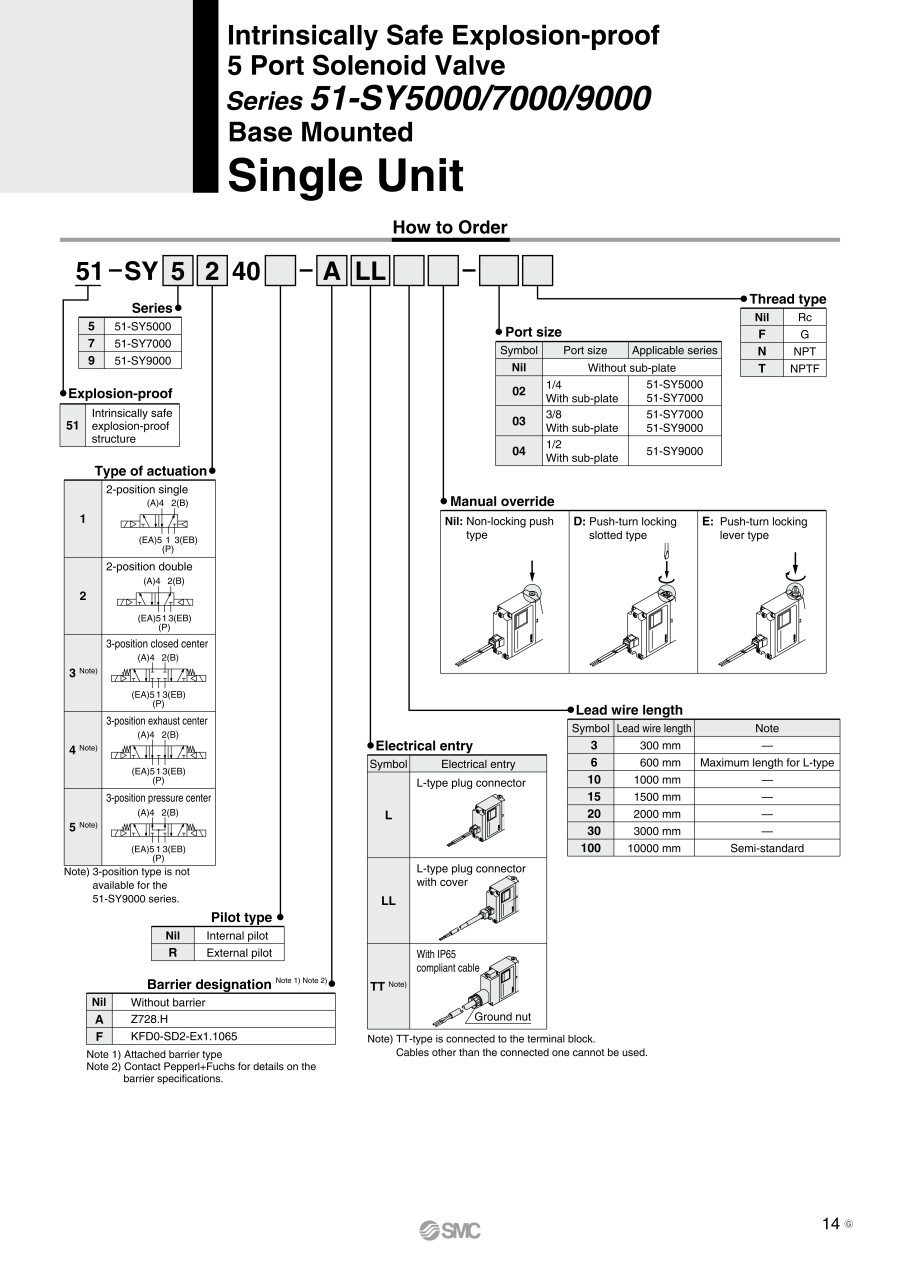

Intrinsically Safe Explosion-Proof Structure Certified (Japan) 5-Port Solenoid Valve, Base Mounted, 51-SY5000/7000/9000
·Exia II BT4 (TIIS certified product)
This product has been certified as an intrinsically safe explosion-proof system that combines an electromagnet for solenoid valves and a safety cage in the explosion-proof structure electromechanical equipment type certification of the industrial safety technology association (TIIS).
* Due to the system display and the selection of the attached barrier, the B (Zener type) barrier has been discontinued (December 2017). Please select A (Zener type) or F (insulated type).
(i)Remark
- ■ SMC Air Cylinder Product Selection and Technical Information
Please check the special page from here.
■About SMC product handling
products without a web page will be released one by one.
If you have a fixed model number, please request a quote / order from here. - Refer to the manufacturer's catalog for specification and material details.
- The product images are representative only. See the catalog for detailed shape.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 51-SY5140-FLL10D |
| 51-SY5140-FTT30-02 |
| 51-SY5540-FTT30 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Application | Installation method | Number of Solenoids | Switching Type | Status at Power Off | Pipe Port Type | Nominal Pipe Thread Size | CV Value | Pressure Rating (MPa) | Lead wire electrical entry | Manual | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
617.35 € | 1 | 26 Days | Unit for Manifold Mounting | Manifold Base | [Single] Single | 2-Position Exhaust | Self-Recovery (Pressure Differential Return) | - | - | - | 0.15 to 0.7 | L-shaped plug connector with cover (Lead wire length 1000 mm) | Push-turn locking screwdriver-operated type | ||
659.32 € | 1 | 26 Days | Single Use | Direct | [Single] Single | 2-Position Exhaust | Self-Recovery (Pressure Differential Return) | [Rc (R)] Rc | 1/4 | 0.64 | 0.15 to 0.7 | Cable type (Lead wire length 3000 mm) | Non-locking, push type | ||
1,255.35 € | 1 | 26 Days | Unit for Manifold Mounting | Manifold Base | Double | 3-Position Pressure Center | Self-Reset (Spring Return) | - | - | - | 0.2 to 0.7 | Cable type (Lead wire length 3000 mm) | Non-locking, push type |
Loading...
Basic information
| Type | Solenoid Valves | Number of Ports | 5-Port Valve | Features | Lubrication Free |
|---|---|---|---|---|---|
| Voltage | 12 V DC | Plumbing | Sub-Base Plumbing | Driving Type | Pilot Type Spool |
| Seal Type | Soft Seal | Pilot Air Supply | Internal | Valve specifications | 51-SY5000 |
| System display | KFD0-SD2-Ex1.1065 |
Configure
Basic Attributes
-
Application
- Single Use
- Unit for Manifold Mounting
-
Installation method
- Direct
- Manifold Base
-
Number of Solenoids
- Single
- Double
- Single
-
Switching Type
- 2-Position Exhaust
- 3-Position Pressure Center
-
Status at Power Off
- Self-Reset (Spring Return)
- Self-Recovery (Pressure Differential Return)
-
Pipe Port Type
- Rc (R)
- Rc (R)
-
Nominal Pipe Thread Size
-
CV Value
-
Pressure Rating(MPa)
- 0.15 to 0.7
- 0.2 to 0.7
-
Lead wire electrical entry
- L-shaped plug connector with cover (Lead wire length 1000 mm)
- Cable type (Lead wire length 3000 mm)
-
Manual
- Non-locking, push type
- Push-turn locking screwdriver-operated type
-
Type
- 51-SY5□40
Filter by standard shipping days
-
- All
- 26 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
