Washers / Internal diameter 24~170mm
・Internal diameter(mm): 24~170
・Outer diameter(mm): 35~220
・eClass code: 23-05-10-01

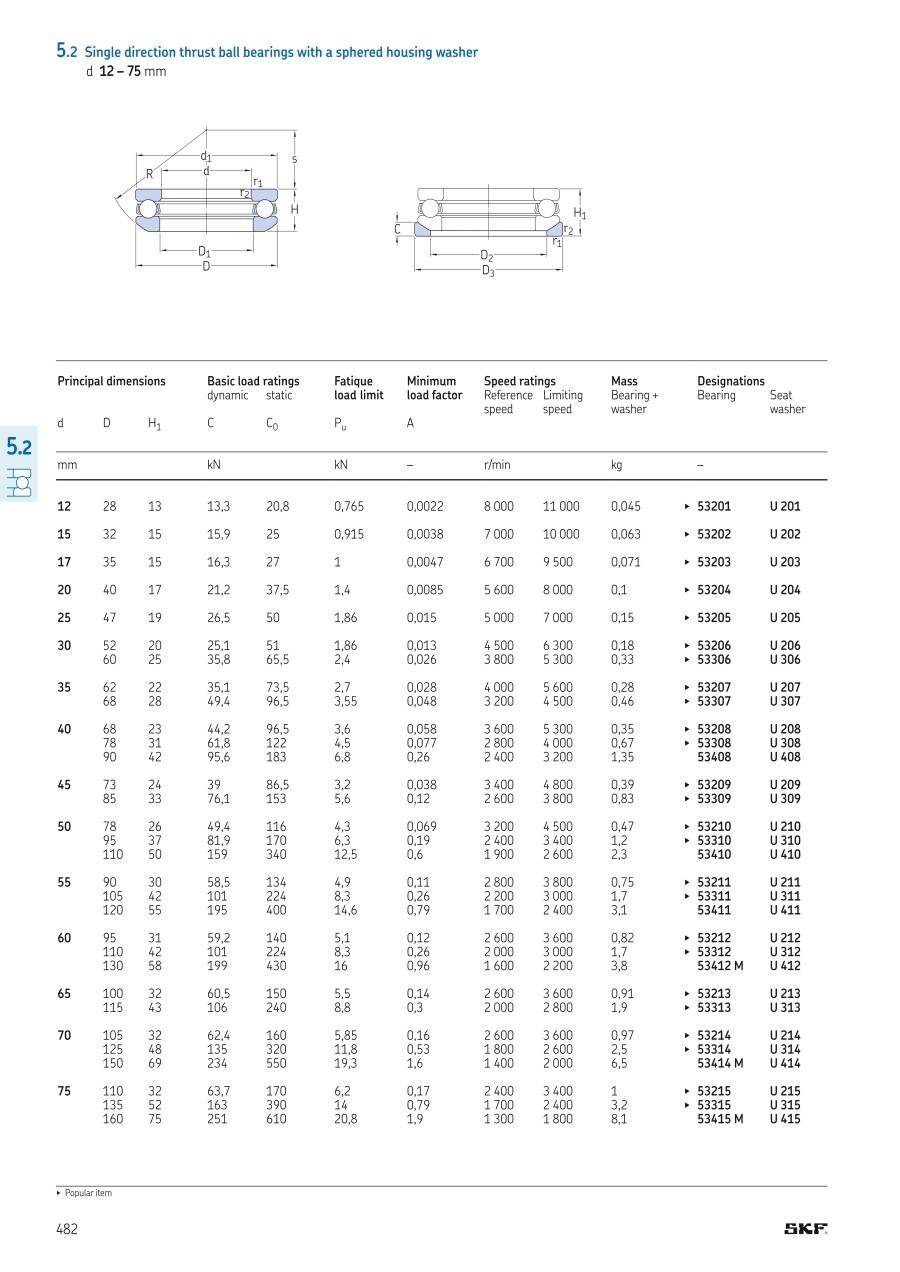

Sphered seat washers are used together with thrust ball bearings with sphered housing washers when the bearing is fitted into a machine component manufactured with a flat surface. The seat washers are supplied as separate components. Depending on bearing series, they have the basic designation U 2, U 3 or U 4 followed by a two-digit number, which identifies the size, e.g. sphered seat washer U 320 for bearing 53320.
[Features]
・Enable the bearings to accommodate initial misalignment
・Can be used with single or double direction bearings
・Enable full interchangeability of seat washers
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| U202 |
| U203 |
| U204 |
| U205 |
| U206 |
| U207 |
| U208 |
| U209 |
| U211 |
| U212 |
| U213 |
| U214 |
| U215 |
| U216 |
| U218 |
| U222 |
| U226 |
| U228 |
| U306 |
| U307 |
| U309 |
| U311 |
| U313 |
| U315 |
| U317 |
| U318 |
| U320 |
| U322 |
| U420 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Internal diameter (mm) | Outer diameter (mm) | Width (mm) | Weight (g) | GTIN/EAN | |
|---|---|---|---|---|---|---|---|---|---|
18.08 € | 1 | 17 Days | 24 | 35 | 4 | 14 | 7316577009289 | ||
18.17 € | 1 | 4 Days | 26 | 38 | 4 | 15 | 7316577107800 | ||
21.98 € | 1 | 17 Days | 30 | 42 | 5 | 20.0 | 7316577009296 | ||
23.85 € | 1 | 17 Days | 36 | 50 | 5.5 | 32 | 7316577009302 | ||
23.73 € | 1 | 4 Days | 42 | 55 | 5.5 | 33.0 | 7316577009319 | ||
31.65 € | 1 | 17 Days | 48 | 65 | 7 | 57.0 | 7316577009326 | ||
34.27 € | 1 | 17 Days | 55 | 72 | 7 | 76.0 | 7316577300737 | ||
36.08 € | 1 | 17 Days | 60 | 78 | 7.5 | 98.0 | 7316577079961 | ||
55.62 € | 1 | 17 Days | 72 | 95 | 9 | 152.0 | 7316577009333 | ||
64.35 € | 1 | 17 Days | 78 | 100 | 9 | 160.0 | 7316577009340 | ||
55.02 € | 1 | 4 Days | 82 | 105 | 9 | 180.0 | 7316577662620 | ||
66.68 € | 1 | 17 Days | 88 | 110 | 9 | 185.0 | 7316577108258 | ||
66.97 € | 1 | 17 Days | 92 | 115 | 9.5 | 210.0 | 7316577662637 | ||
70.22 € | 1 | 17 Days | 98 | 120 | 10 | 220.0 | 7316577108326 | ||
104.72 € | 1 | 17 Days | 110 | 140 | 13.5 | 420.0 | 7316570784015 | ||
152.23 € | 1 | 17 Days | 135 | 165 | 14 | 560.0 | 7316570868579 | ||
200.84 € | 1 | 4 Days | 160 | 195 | 17 | 900.0 | 7316570434675 | ||
232.90 € | 1 | 4 Days | 170 | 210 | 17 | 1210.0 | 7316577108722 | ||
31.67 € | 1 | 17 Days | 45 | 62 | 7 | 56.0 | 7316577009364 | ||
38.28 € | 1 | 17 Days | 52 | 72 | 7.5 | 84.0 | 7316577009371 | ||
54.90 € | 1 | 17 Days | 65 | 90 | 10 | 170.0 | 7316577009388 | ||
74.32 € | 1 | 17 Days | 80 | 110 | 11.5 | 280.0 | 7316570395570 | ||
90.05 € | 1 | 17 Days | 90 | 120 | 12.5 | 340.0 | 7316570633115 | ||
114.20 € | 1 | 17 Days | 105 | 140 | 15 | 550.0 | 7316577109460 | ||
135.75 € | 1 | 17 Days | 115 | 155 | 17.5 | 810.0 | 7316577009425 | ||
136.16 € | 1 | 17 Days | 120 | 160 | 18 | 840.0 | 7316570324471 | ||
174.43 € | 1 | 17 Days | 135 | 175 | 18 | 950.0 | 7316570611700 | ||
219.05 € | 1 | 17 Days | 150 | 195 | 20.5 | 1280.0 | 7316570120462 | ||
3,074.99 € | 1 | 17 Days | 155 | 220 | 27 | 2880.0 | 7316577110411 |
Loading...
Configure
Basic Attributes
-
Internal diameter(mm)
-
Outer diameter(mm)
-
Width(mm)
-
Weight(g)
-
GTIN/EAN
- 7316570120462
- 7316570324471
- 7316570395570
- 7316570434675
- 7316570611700
- 7316570633115
- 7316570784015
- 7316570868579
- 7316577009289
- 7316577009296
- 7316577009302
- 7316577009319
- 7316577009326
- 7316577009333
- 7316577009340
- 7316577009364
- 7316577009371
- 7316577009388
- 7316577009425
- 7316577079961
- 7316577107800
- 7316577108258
- 7316577108326
- 7316577108722
- 7316577109460
- 7316577110411
- 7316577300737
- 7316577662620
- 7316577662637
-
Type
Filter by standard shipping days
-
- All
- 4 Days or Less
- 17 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
