Expansion
- Volume Discount
[Specifications]
・Product type: Expansion
・Product size (width)(mm): 30
・Product size (height)(mm): 215
・Product size (depth)(mm): 75
・Nominal voltage(V): 500

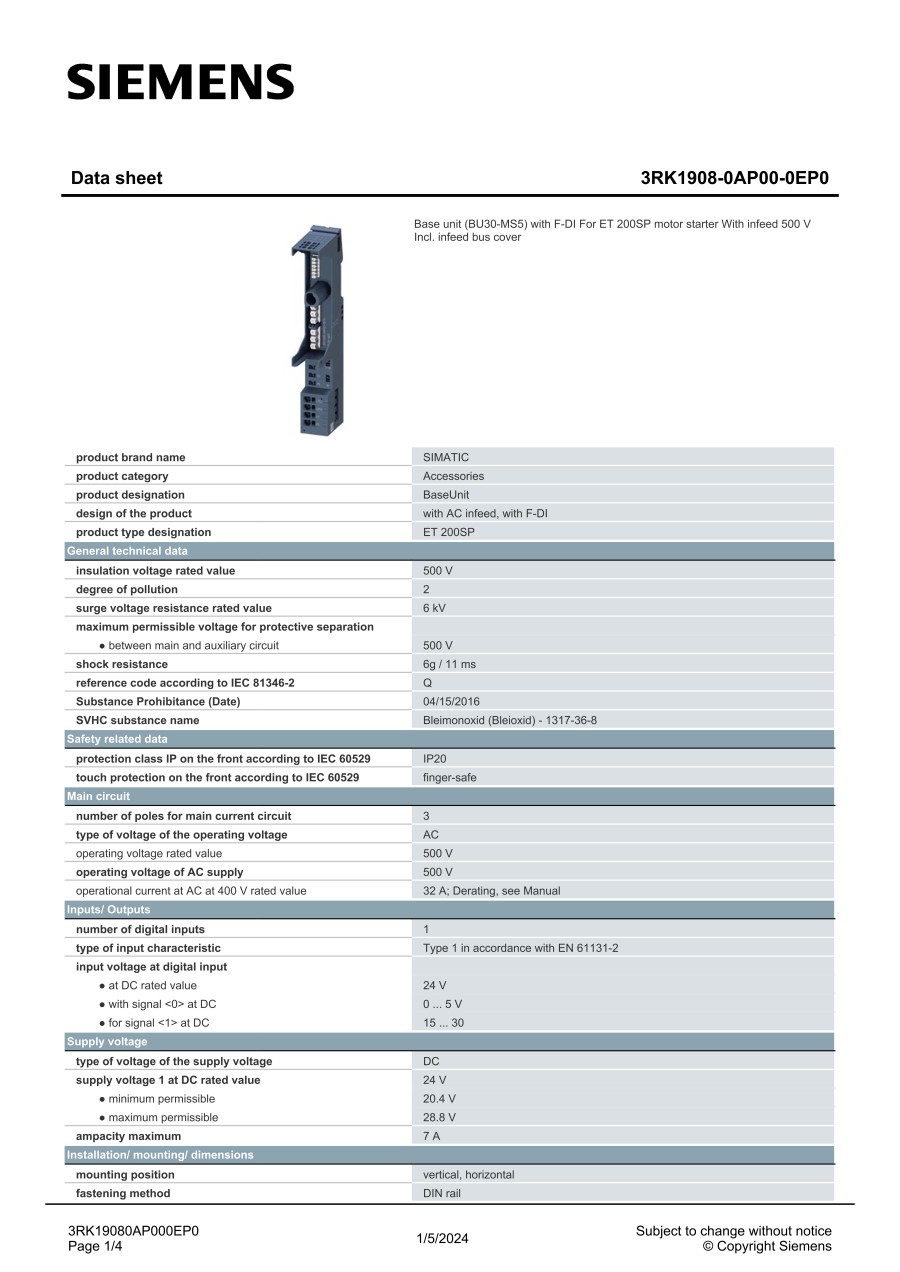

Base unit (BU30-MS5) with F-DI For ET 200SP motor starter With infeed 500 V Incl. infeed bus cover
・Product type: Expansion
・Product size (width)(mm): 30
・Product size (height)(mm): 215
・Product size (depth)(mm): 75
・Nominal voltage(V): 500
Base unit (BU30-MS5) with F-DI For ET 200SP motor starter With infeed 500 V Incl. infeed bus cover
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
3RK19080AP000EP0
- Product data
- CAD data not available
Basic information
| Manufacturer part # | 3RK19080AP000EP0 | Max. temperature(°C) | +60 | Min. temperature(°C) | -25 |
|---|---|---|---|---|---|
| Nominal current(A) | 32 | Nominal voltage(V) | 500 | Product size (height)(mm) | 215 |
| Product size (depth)(mm) | 75 | Product size (width)(mm) | 30 | Product type | Expansion |
| Type (manufacturer type) | 3RK 1908-0 AP00-0EP 0 | Type (misc.) | Spring-loaded connection |
This page is Expansion, part number 3RK19080AP000EP0.
You can find the detail information about specifications and dimensions on part number 3RK19080AP000EP0.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
