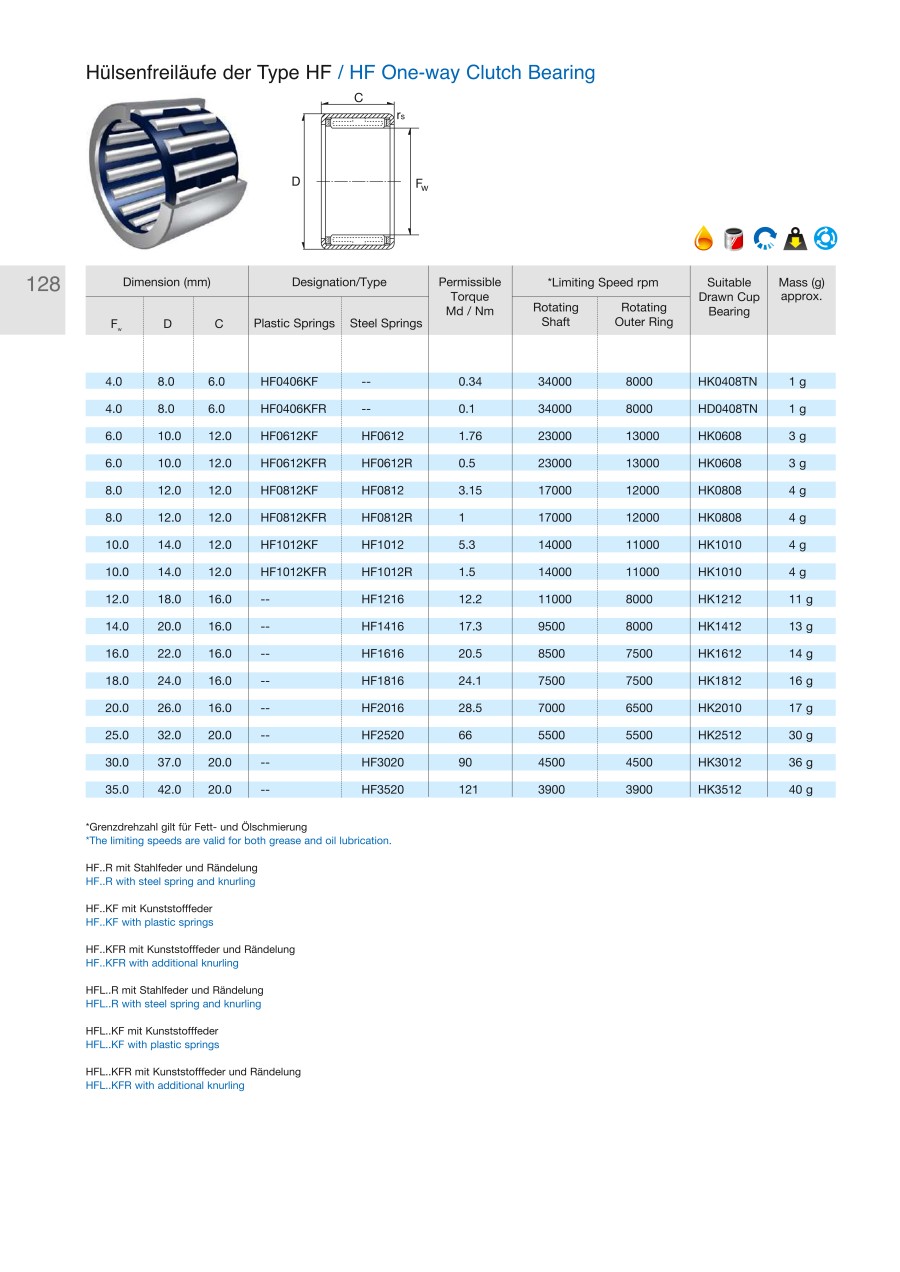

Drawn Cup Roller Clutches / Without knurling on outer ring / Steel springs / HF Series
・Outer ring: Without knurling on outer ring
・Press-on springs: Steel springs
・Seal: None open bearing
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| HF0612 |
| HF1012 |
| HF1216 |
| HF1416 |
| HF2016 |
| HF2520 |
| HF3020 |
| HF3520 |
| HFL0408 |
| HFL1022 |
| HFL1226 |
| HFL1426 |
| HFL2026 |
| HFL2530 |
| HFL3030 |
| HFL3530 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | I.D. d (mm) | O.D. D (mm) | Width B (mm) | Design | Weight (g) | |
|---|---|---|---|---|---|---|---|---|---|
1.97 € | 1 | 4 Days | 6 | 10 | 12 | Drawn cup roller clutch without bearing | 3.0 | ||
1.98 € | 1 | 4 Days | 10 | 14 | 12 | Drawn cup roller clutch without bearing | 4.0 | ||
2.57 € | 1 | 4 Days | 12 | 18 | 16 | Drawn cup roller clutch without bearing | 11.0 | ||
2.30 € | 1 | 4 Days | 14 | 20 | 16 | Drawn cup roller clutch without bearing | 13.0 | ||
2.80 € | 1 | 4 Days | 20 | 26 | 16 | Drawn cup roller clutch without bearing | 16.0 | ||
4.12 € | 1 | 4 Days | 25 | 32 | 20 | Drawn cup roller clutch without bearing | 30.0 | ||
7.63 € | 1 | 4 Days | 30 | 37 | 20 | Drawn cup roller clutch without bearing | 36.0 | ||
4.24 € | 1 | 4 Days | 35 | 42 | 20 | Drawn cup roller clutch without bearing | 45.0 | ||
3.67 € | 1 | 4 Days | 4 | 8 | 8 | Drawn cup roller clutch with bearing | 1.0 | ||
5.17 € | 1 | 4 Days | 10 | 14 | 22 | Drawn cup roller clutch with bearing | 8.0 | ||
4.08 € | 1 | 4 Days | 12 | 18 | 26 | Drawn cup roller clutch with bearing | 18.0 | ||
4.12 € | 1 | 4 Days | 14 | 20 | 26 | Drawn cup roller clutch with bearing | 20.0 | ||
6.43 € | 1 | 4 Days | 20 | 26 | 26 | Drawn cup roller clutch with bearing | 27.0 | ||
7.23 € | 1 | 4 Days | 25 | 32 | 30 | Drawn cup roller clutch with bearing | 42.0 | ||
10.13 € | 1 | 4 Days | 30 | 37 | 30 | Drawn cup roller clutch with bearing | 48.0 | ||
10.63 € | 1 | 4 Days | 35 | 42 | 30 | Drawn cup roller clutch with bearing | 57.0 |
Loading...
Basic information
| Outer ring | Without knurling on outer ring | Press-on springs | Steel springs | Seal | None open bearing |
|---|---|---|---|---|---|
| Temperature range | -10 to +70 degrees |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
