Configure
- Shaft diameter d1(mm)
- 20
- 37
- 40
- 45
- 50
- 55
- 60
- 65
- 75
- Web width b ca.(mm)
- 2.6
- 4
- 4.2
- 4.6
- 5
- 5.4
- 5.8
- 6.2
- 7
- Customs tariff weight(kg)
- 1.4
- 5.4
- 6.75
- 8.156
- 10.856
- 12.8
- 15.37
- 24
- 29.72
- Groove width m min.(mm)
- 1.3
- 1.6
- 1.85
- 2.15
- 2.65
- Groove diameter d2(mm)
- 19
- 35
- 37.5
- 42.5
- 47
- 52
- 57
- 62
- 72
- Diameter of mounting holes(mm)
- 2
- 2.5
- 3
- Collar length n(mm)
- 1.5
- 3
- 3.8
- 4.5
- Internal diameter d3 Tolerance
- Thickness s(mm)
- 1.2
- 1.5
- 1.75
- 2
- 2.5
- Lug height a max.(mm)
- 3.8
- 5.4
- 7.2
- 8.2
- 10.2
- Internal diameter d3(mm)
- 18.5
- 34.2
- 36.5
- 41.5
- 45.8
- 50.8
- 55.8
- 60.8
- 70.5
- Est. shipping days
- All
- Within 4 working days
- Within 5 working days

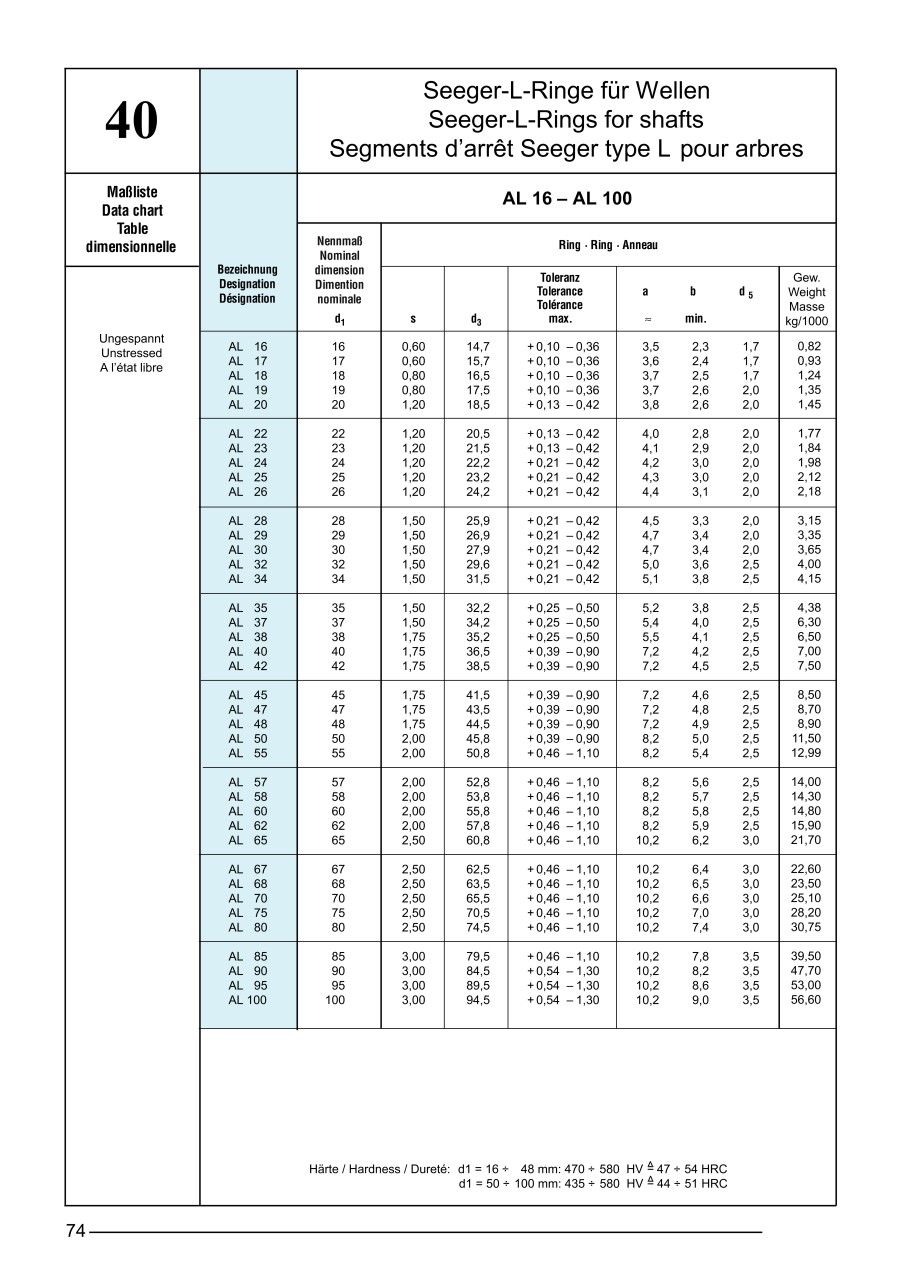

SEEGER L-Rings, Type AL for Shafts
Part number:
possible part numbers found.Part number list
Number of items
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
1.20 € ( 1.43 € ) | 5 working days |
4.06 € ( 4.83 € ) | 5 working days |
5.02 € ( 5.97 € ) | 5 working days |
5.52 € ( 6.57 € ) | 5 working days |
6.54 € ( 7.78 € ) | 4 working days |
7.52 € ( 8.95 € ) | 5 working days |
8.55 € ( 10.17 € ) | 5 working days |
12.92 € ( 15.37 € ) | 5 working days |
16.22 € ( 19.30 € ) | 5 working days |
More Information
Basic information
[Specifications]
・Type: AL
・Engineering material: Spring steel
SEEGER-L-Rings form a shoulder, which applies spring pressure in the axial direction. Thus, compensating for axial play resulting from manufacturing tolerances by spring action.
[Features]
・Compensating for axial play of bores
・Absorbing axial forces
[Applications]
・Pressing Nilos rings onto roller bearings
・Securing the end plates of multiple disc clutches
