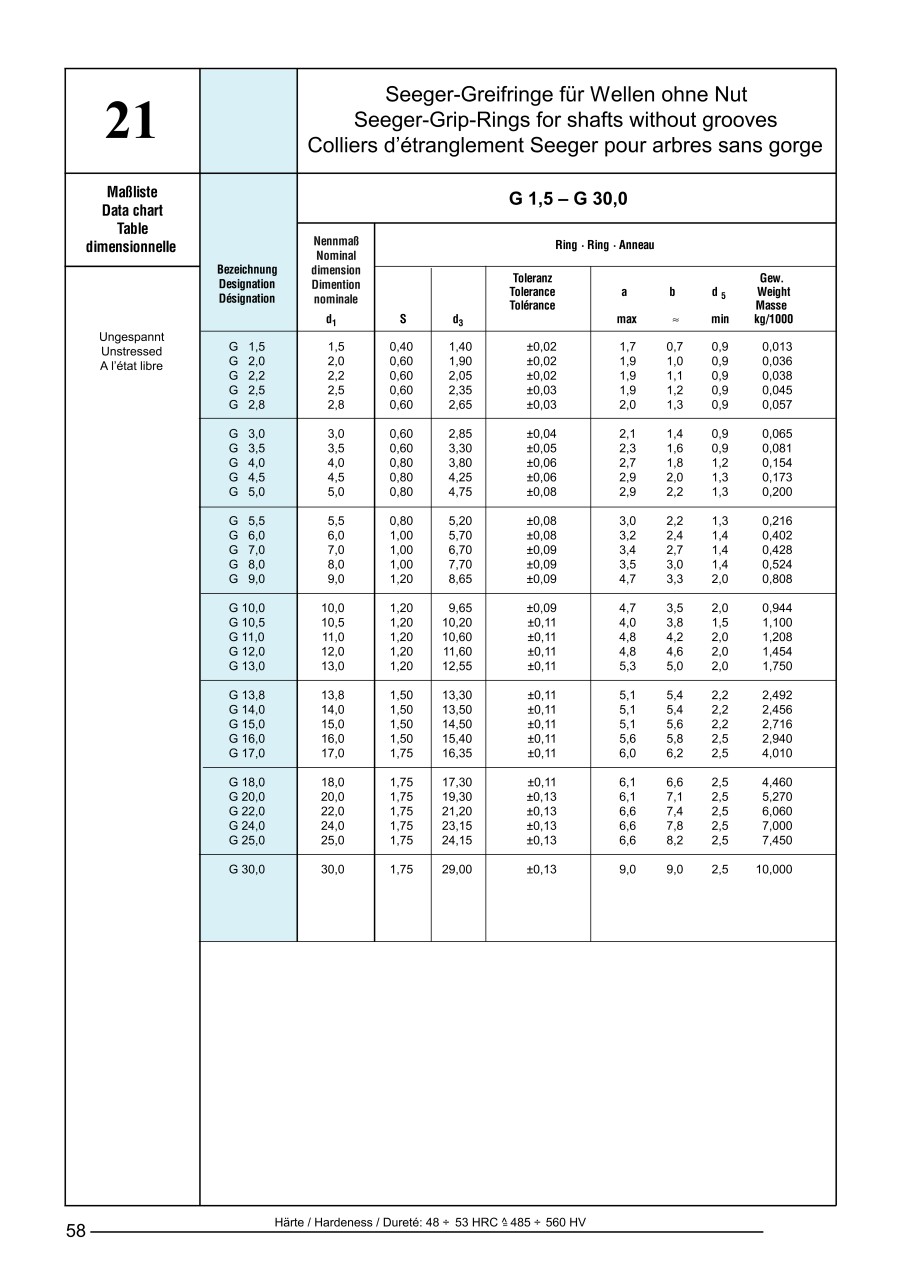

SEEGER Gripper Rings, Type G for Shafts without Groove
・Type: G
・Engineering material: Spring steel
SEEGER grip rings have a comparatively large radial width and thickness. They can therefore also be mounted on a smooth, non-grooved shaft and are thus suitable for absorbing high axial forces.
[Features]
・For securing smooth shafts axially
[Applications]
・For securing shafts without groove
・For lever bearings
・For locating pins
・Automatic Brake Adjustment (works like a sliding ring)
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 320G18 |
| 320G 3 |
| 320G 9 |
| G4-BLS |
| G5-BLC |
| G6-BLC |
| G10-BLC |
| G12-BLC |
| G14-BLK |
| G15-BLS |
| G16-BLK |
| G25-BLS |
| Part Number | Minimum order quantity | Volume Discount | Shaft diameter d1 (mm) | Web width b ca. (mm) | Customs tariff weight (kg) | Diameter of mounting holes (mm) | Holding force N (N) | Thickness s (mm) | Eye level a max. (mm) | Outer diameter d4 (mm) | Internal diameter d3 (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100 | 5 Days | 18 | 6.6 | 4.71 | 2.5 | 700 | 1.75 | 6.1 | 31.4 | 17.3 | ||
| 200 | 5 Days | 3 | 1.4 | 0.07 | 0.9 | 75 | 0.6 | 2.1 | 7.4 | 2.85 | ||
| 200 | 5 Days | 9 | 3.3 | 0.85 | 2 | 230 | 1.2 | 4.7 | 18.6 | 8.65 | ||
| 200 | 5 Days | 4 | 1.8 | 0.201 | 1.2 | 100 | 0.8 | 2.7 | 9.6 | 3.8 | ||
| 200 | 5 Days | 5 | 2.2 | 0.21 | 1.3 | 130 | 0.8 | 2.9 | 11 | 4.75 | ||
| 200 | 5 Days | 6 | 2.4 | 0.333 | 1.4 | 170 | 1 | 3.2 | 12.6 | 5.7 | ||
| 200 | 5 Days | 10 | 3.5 | 0.98 | 2 | 250 | 1.2 | 4.7 | 19.6 | 9.65 | ||
| 100 | 5 Days | 12 | 4.6 | 1.48 | 2 | 300 | 1.2 | 4.8 | 21.8 | 11.6 | ||
| 100 | 5 Days | 14 | 5.4 | 2.5 | 2.2 | 350 | 1.5 | 5.1 | 25 | 13.5 | ||
| 100 | 5 Days | 15 | 5.6 | 2.78 | 2.2 | 400 | 1.5 | 5.1 | 26.4 | 14.5 | ||
| 100 | 5 Days | 16 | 5.8 | 3.1 | 2.5 | 500 | 1.5 | 5.6 | 27.8 | 15.4 | ||
| 50 | 5 Days | 25 | 8.2 | 7.78 | 2.5 | 750 | 1.75 | 6.6 | 41.6 | 24.15 |
Loading...
Basic information
| Customs tariff weight unit | kg | Type | G | Customs tariff weight Pro | 1000 |
|---|---|---|---|---|---|
| Engineering material | Spring steel | Customs tariff article number | 73182100 | Customs tariff country of origin | DE |
Configure
Basic Attributes
-
Shaft diameter d1(mm)
-
Web width b ca.(mm)
-
Customs tariff weight(kg)
-
Diameter of mounting holes(mm)
-
Holding force N(N)
-
Thickness s(mm)
-
Eye level a max.(mm)
-
Outer diameter d4(mm)
-
Internal diameter d3(mm)
Filter by standard shipping days
-
- All
- 5 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
