Four point contact bearing / single row / with retaining grooves / internal clearance selectable / SKF

Configure

I.D. D(φ)
- 25
- 70
- 75
- 90
- 95
- 100
- 110
- 120
- 130
- 140
- 150
- 160
Outer Diameter D(φ)
- 52
- 125
- 160
- 170
- 180
- 190
- 200
- 215
- 230
- 240
- 250
- 260
- 270
- 290
Width B(mm)
- 15
- 24
- 30
- 32
- 34
- 37
- 38
- 40
- 42
- 43
- 45
- 48
- 50
- 55
Customs tariff — weight(kg)
- 0.158
- 1.332
- 2.739
- 3.304
- 3.796
- 3.944
- 5.547
- 6.119
- 6.579
- 7.438
- 9.362
- 11.68
- 11.793
- 14.732
- 15.21
Shoulder dimension d1(mm)
- 31.5
- 83.5
- 104
- 114
- 120
- 124
- 127
- 141
- 152
- 154
- 165
- 169
- 179
- 194
- 204
r (min.)(mm)
- 1
- 1.5
- 2
- 2.1
- 3
Fatigue limit load Pu(kN)
- 0.9
- 5.2
- 7.65
- 7.8
- 8.5
- 9.5
- 11
- 11.2
- 12
- 12.7
- 14.3
- 15.3
- 16.3
- 16.6
- 19
Bore code
- 05
- 14
- 15
- 18
- 19
- 20
- 22
- 24
- 26
- 28
- 30
- 32
Shoulder dimension D1(mm)
- 43
- 106
- 131
- 136
- 145
- 153
- 156
- 169
- 183
- 195
- 196
- 211
- 226
- 243
Reference speed rpm
- 2,800
- 3,000
- 3,200
- 3,400
- 3,600
- 4,000
- 4,500
- 4,800
- 5,000
- 5,300
- 6,300
- 16,000
Pressure point a(mm)
- 27
- 68
- 82
- 88
- 93
- 98
- 109
- 117
- 123
- 126
- 133
- 137
- 147
- 158
Bearing clearance identifier
- C2L
- CN
Type
Est. shipping days
- All
- Within 5 working days

SKF

Four point contact bearing / single row / with retaining grooves / internal clearance selectable / SKF

Catalog

Part number:

Still undefined. 15 possible part numbers found.

Part number list
Catalog

Part number list

Number of items

Part number

I.D. D

(φ)

Outer Diameter D

(φ)

Width B

(mm)

Maximum Allowable Rotational Speed

(1/min)

Basic Load Rating Static Rating

(N)

Basic Load Rating Dynamic Rating (Ca)

(N)

Customs tariff — weight

(kg)

Shoulder dimension d1

(mm)

r (min.)

(mm)

Fatigue limit load Pu

(kN)

Bore code

Shoulder dimension D1

(mm)

Reference speed rpm

Pressure point a

(mm)

Bearing clearance identifier

Minimum order quantity

25	52	15	22000	21200	27000	0.158	31.5	1	0.9	05	43	16,000	27	C2L	1 pieces
70	125	24	9000	122000	120000	1.332	83.5	1.5	5.2	14	106	6,300	68	CN	1 pieces
90	160	30	7000	200000	186000	2.739	114	2	7.65	18	136	5,000	88	CN	1 pieces
95	170	32	6700	232000	212000	3.304	120	2.1	8.5	19	145	4,800	93	CN	1 pieces
100	180	34	6300	265000	236000	3.944	127	2.1	9.5	20	153	4,500	98	CN	1 pieces
110	200	38	5600	325000	280000	5.547	141	2.1	11.2	22	169	4,000	109	CN	1 pieces
120	215	40	5000	365000	300000	6.579	152	2.1	12	24	183	3,600	117	CN	1 pieces
130	230	40	4800	400000	310000	7.438	165	3	12.7	26	195	3,400	126	CN	1 pieces
140	250	42	4300	475000	345000	9.362	179	3	14.3	28	211	3,200	137	CN	1 pieces
150	270	45	4000	570000	400000	11.793	194	3	16.6	30	226	3,000	147	CN	1 pieces
160	290	48	3800	670000	450000	14.732	204	3	19	32	243	2,800	158	CN	1 pieces
75	160	37	7500	200000	216000	3.796	104	2.1	7.8	15	131	5,300	82	CN	1 pieces
90	190	43	6300	305000	285000	6.119	124	3	11	18	156	4,500	98	CN	1 pieces
110	240	50	4800	480000	390000	11.68	154	3	15.3	22	196	3,600	123	CN	1 pieces
120	260	55	4500	530000	415000	15.21	169	3	16.3	24	211	3,200	133	CN	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

157.25 € ( 187.13 € )	5 working days
237.48 € ( 282.60 € )	5 working days
425.31 € ( 506.12 € )	5 working days
509.11 € ( 605.84 € )	5 working days
610.82 € ( 726.88 € )	5 working days
717.00 € ( 853.23 € )	5 working days
918.15 € ( 1,092.60 € )	5 working days
1,026.58 € ( 1,221.63 € )	5 working days
1,276.55 € ( 1,519.09 € )	5 working days
1,595.45 € ( 1,898.59 € )	5 working days
1,883.32 € ( 2,241.15 € )	5 working days
434.54 € ( 517.10 € )	5 working days
626.48 € ( 745.51 € )	5 working days
1,328.35 € ( 1,580.74 € )	5 working days
2,037.80 € ( 2,424.98 € )	5 working days

Catalog

Products homepage

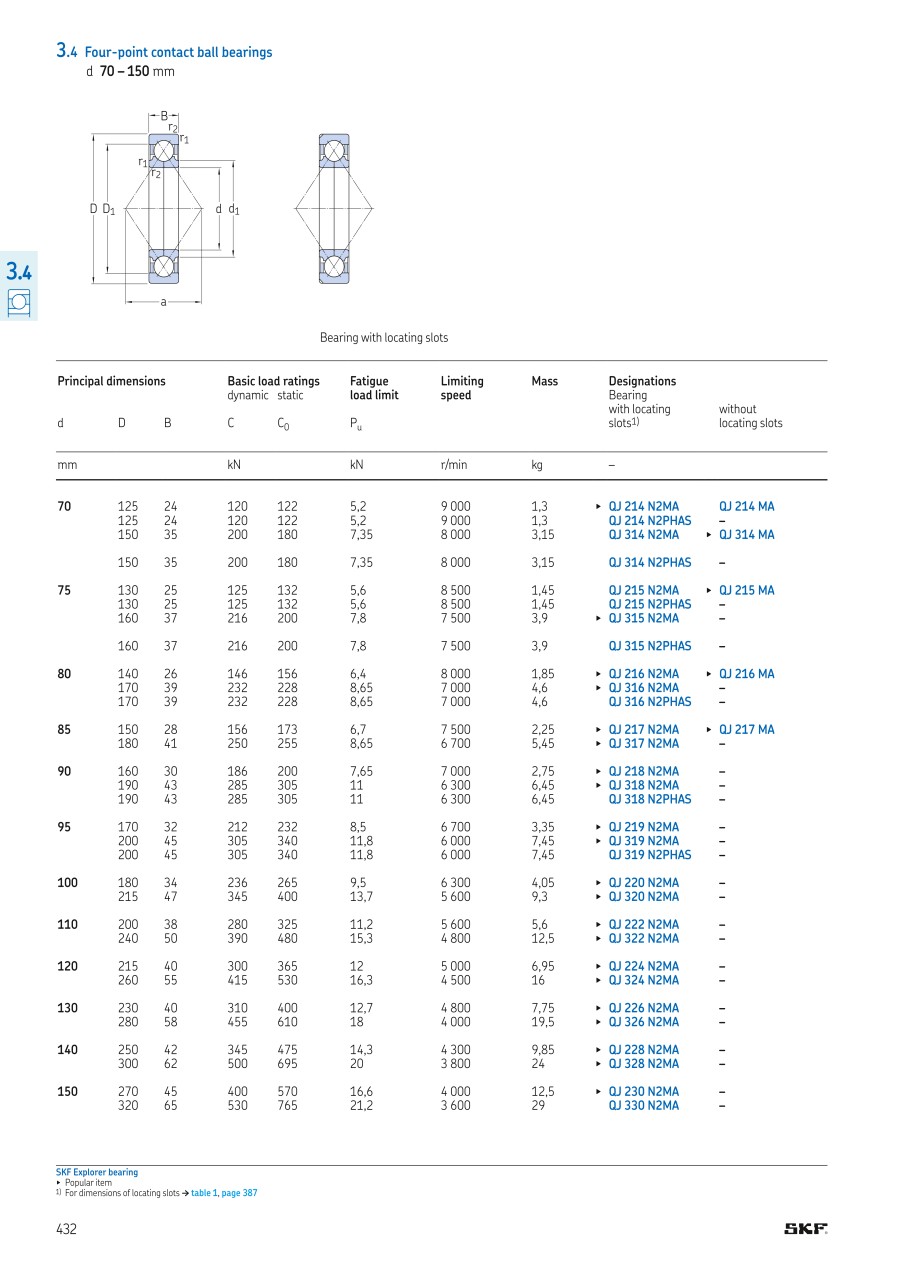

Catalog (2-page spread)
