Four point contact bearing / single row / internal clearance selectable / SKF

Configure

I.D. D(φ)
- 20
- 30
- 35
- 40
- 45
- 50
- 55
- 60
- 70
- 75
- 80
- 85
Outer Diameter D(φ)
- 52
- 62
- 72
- 80
- 85
- 90
- 100
- 110
- 130
- 140
- 150
Width B(mm)
- 15
- 16
- 19
- 20
- 21
- 22
- 23
- 25
- 26
- 27
- 28
- 31
- 35
Customs tariff — weight(kg)
- 0.177
- 0.25
- 0.418
- 0.509
- 0.555
- 0.561
- 0.758
- 0.771
- 0.965
- 1.313
- 1.452
- 1.776
- 2.093
- 2.221
- 3.16
Shoulder dimension d1(mm)
- 27.5
- 37.5
- 40.5
- 46.2
- 52
- 54.5
- 59.5
- 65
- 66
- 72
- 77
- 88.5
- 89
- 95.3
- 100
r (min.)(mm)
- 1
- 1.1
- 1.5
- 2
- 2.1
Fatigue limit load Pu(kN)
- 0.93
- 1.29
- 1.76
- 2.16
- 2.36
- 2.6
- 2.7
- 3.55
- 4
- 4.25
- 5.6
- 5.85
- 6.4
- 6.7
- 7.35
Bore code
- 04
- 06
- 07
- 08
- 09
- 10
- 11
- 12
- 14
- 15
- 16
- 17
Shoulder dimension D1(mm)
- 40.8
- 50.8
- 58.2
- 64.3
- 72
- 72.5
- 76.5
- 84.7
- 90
- 93
- 106
- 112
- 120
- 123
- 128
Reference speed rpm
Pressure point a(mm)
- 25
- 32
- 36
- 40
- 46
- 49
- 54
- 56
- 60
- 67
- 72
- 77
- 83
Bearing clearance identifier
- C2L
- C3
- CN
Type
Est. shipping days
- All
- Within 5 working days

SKF

Four point contact bearing / single row / internal clearance selectable / SKF

Catalog

Part number:

Still undefined. 17 possible part numbers found.

Part number list
Catalog

Part number list

Number of items

Part number

I.D. D

(φ)

Outer Diameter D

(φ)

Width B

(mm)

Maximum Allowable Rotational Speed

(1/min)

Basic Load Rating Static Rating

(N)

Basic Load Rating Dynamic Rating (Ca)

(N)

Customs tariff — weight

(kg)

Shoulder dimension d1

(mm)

r (min.)

(mm)

Fatigue limit load Pu

(kN)

Bore code

Shoulder dimension D1

(mm)

Reference speed rpm

Pressure point a

(mm)

Bearing clearance identifier

Minimum order quantity

30	62	16	19000	30500	37500	0.25	37.5	1	1.29	06	50.8	14,000	32	CN	1 pieces
45	85	19	14000	56000	63000	0.509	54.5	1.1	2.36	09	72	10,000	46	CN	1 pieces
50	90	20	13000	61000	65500	0.561	59.5	1.1	2.6	10	76.5	9,000	49	CN	1 pieces
55	100	21	11000	83000	85000	0.758	66	1.5	3.55	11	84.7	8,000	54	CN	1 pieces
55	100	21	11000	83000	85000	0.758	66	1.5	3.55	11	84.7	8,000	54	C3	1 pieces
60	110	22	10000	93000	96500	0.965	72	1.5	4	12	93	7,500	60	CN	1 pieces
75	130	25	8500	132000	125000	1.452	88.5	1.5	5.6	15	112	6,300	72	CN	1 pieces
80	140	26	8000	156000	146000	1.776	95.3	2	6.4	16	120	5,600	77	CN	1 pieces
80	140	26	8000	156000	146000	1.776	95.3	2	6.4	16	120	5,600	77	C2L	1 pieces
85	150	28	7500	173000	156000	2.221	100	2	6.7	17	128	5,300	83	CN	1 pieces
20	52	15	24000	21600	32000	0.177	27.5	1.1	0.93	04	40.8	18,000	25	CN	1 pieces
30	72	19	17000	41500	53000	0.418	40.5	1.1	1.76	06	58.2	12,000	36	CN	1 pieces
35	80	21	15000	51000	64000	0.555	46.2	1.5	2.16	07	64.3	11,000	40	CN	1 pieces
40	90	23	14000	64000	78000	0.771	52	1.5	2.7	08	72.5	10,000	46	CN	1 pieces
50	110	27	11000	100000	118000	1.313	65	2	4.25	10	90	8,000	56	CN	1 pieces
60	130	31	9000	137000	156000	2.093	77	2.1	5.85	12	106	6,700	67	CN	1 pieces
70	150	35	8000	180000	200000	3.16	89	2.1	7.35	14	123	5,600	77	CN	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

72.17 € ( 85.88 € )	5 working days
91.00 € ( 108.29 € )	5 working days
113.22 € ( 134.73 € )	5 working days
133.86 € ( 159.29 € )	5 working days
229.48 € ( 273.08 € )	5 working days
163.72 € ( 194.83 € )	5 working days
252.85 € ( 300.89 € )	5 working days
314.25 € ( 373.96 € )	5 working days
303.03 € ( 360.61 € )	5 working days
370.26 € ( 440.61 € )	5 working days
95.72 € ( 113.91 € )	5 working days
188.20 € ( 223.96 € )	5 working days
99.09 € ( 117.92 € )	5 working days
119.06 € ( 141.68 € )	5 working days
196.18 € ( 233.45 € )	5 working days
274.54 € ( 326.70 € )	5 working days
379.25 € ( 451.31 € )	5 working days

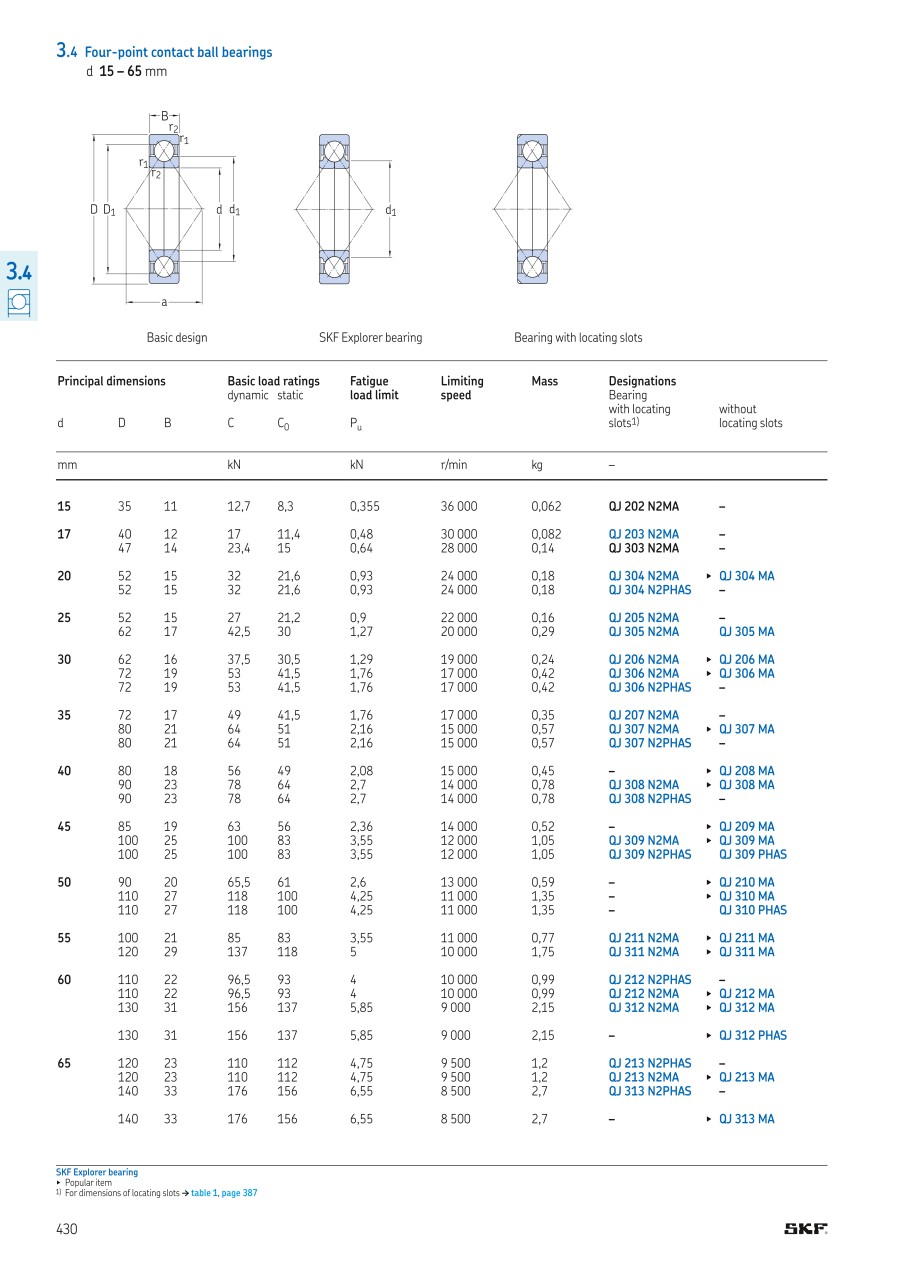

Catalog
