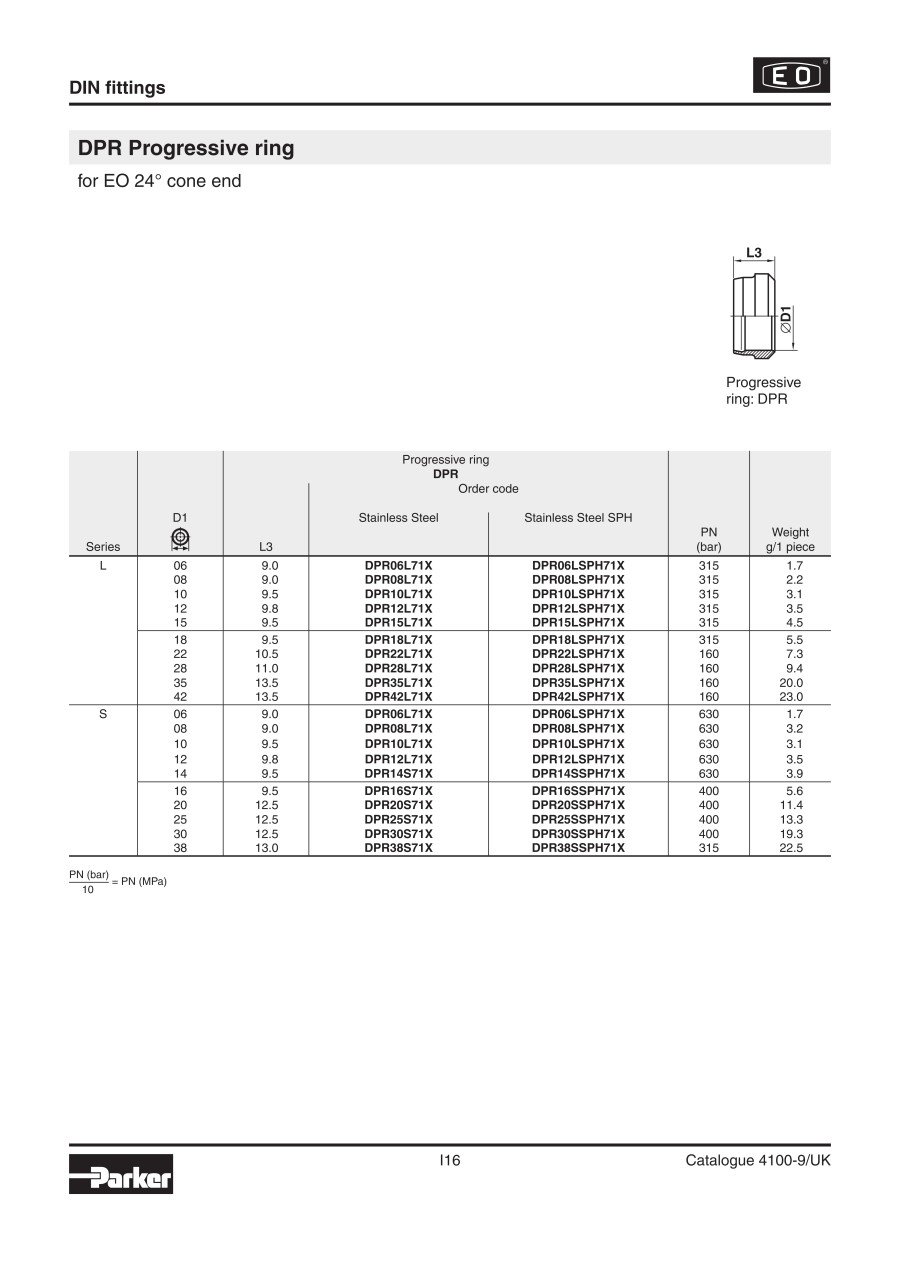

PARKER Progressive Ring DPR
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| DPR06L71X |
| DPR08L71X |
| DPR10L71X |
| DPR12L71X |
| DPR14S71X |
| DPR15L71X |
| DPR16S71X |
| DPR18L71X |
| DPR20S71X |
| DPR22L71X |
| DPR25S71X |
| DPR28L71X |
| DPR30S71X |
| DPR35L71X |
| DPR38S71X |
| DPR42L71X |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Pipe outside diameter D1 | PN bar | Customs tariff weight (kg) | L3 | Model series | Customs tariff item number | |
|---|---|---|---|---|---|---|---|---|---|---|
3.18 € | 1 | 5 Days | 6 | 315 | 0.002 | 9 | L | 73079980 | ||
3.46 € | 1 | 5 Days | 8 | 315 | 0.002 | 9 | L | 73072980 | ||
4.78 € | 1 | 5 Days | 10 | 315 | 0.003 | 9.5 | L | 73072980 | ||
5.05 € | 1 | 5 Days | 12 | 315 | 0.003 | 9.8 | L | 73072980 | ||
9.03 € | 1 | 5 Days | 14 | 630 | 0.004 | 9.5 | S | 73072980 | ||
6.25 € | 1 | 5 Days | 15 | 315 | 0.004 | 9.5 | L | 73072980 | ||
6.29 € | 1 | 5 Days | 16 | 400 | 0.006 | 9.5 | S | 73072980 | ||
6.94 € | 1 | 5 Days | 18 | 315 | 0.005 | 9.5 | L | 73079980 | ||
7.34 € | 1 | 5 Days | 20 | 400 | 0.011 | 12.5 | S | 73072290 | ||
8.11 € | 1 | 5 Days | 22 | 160 | 0.008 | 10.5 | L | 73072980 | ||
13.68 € | 1 | 5 Days | 25 | 400 | 0.014 | 12.5 | S | 73072980 | ||
15.14 € | 1 | 5 Days | 28 | 160 | 0.011 | 11 | L | 73072980 | ||
16.66 € | 1 | 5 Days | 30 | 400 | 0.018 | 12.5 | S | 73072980 | ||
19.17 € | 1 | 5 Days | 35 | 160 | 0.023 | 13.5 | L | 73072980 | ||
20.65 € | 1 | 5 Days | 38 | 315 | 0.024 | 13 | S | 73072980 | ||
26.75 € | 1 | 5 Days | 42 | 160 | 0.027 | 13.5 | L | 73072980 |
Loading...
Basic information
| Customs tariff weight unit | kg | Scope of delivery | Body only without nut, ring, seals or other parts | Order code | DPR |
|---|---|---|---|---|---|
| Surface | Stainless steel | Engineering material | Stainless steel | Customs tariff weight per | 1 |
| Customs tariff country of origin | DE |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
