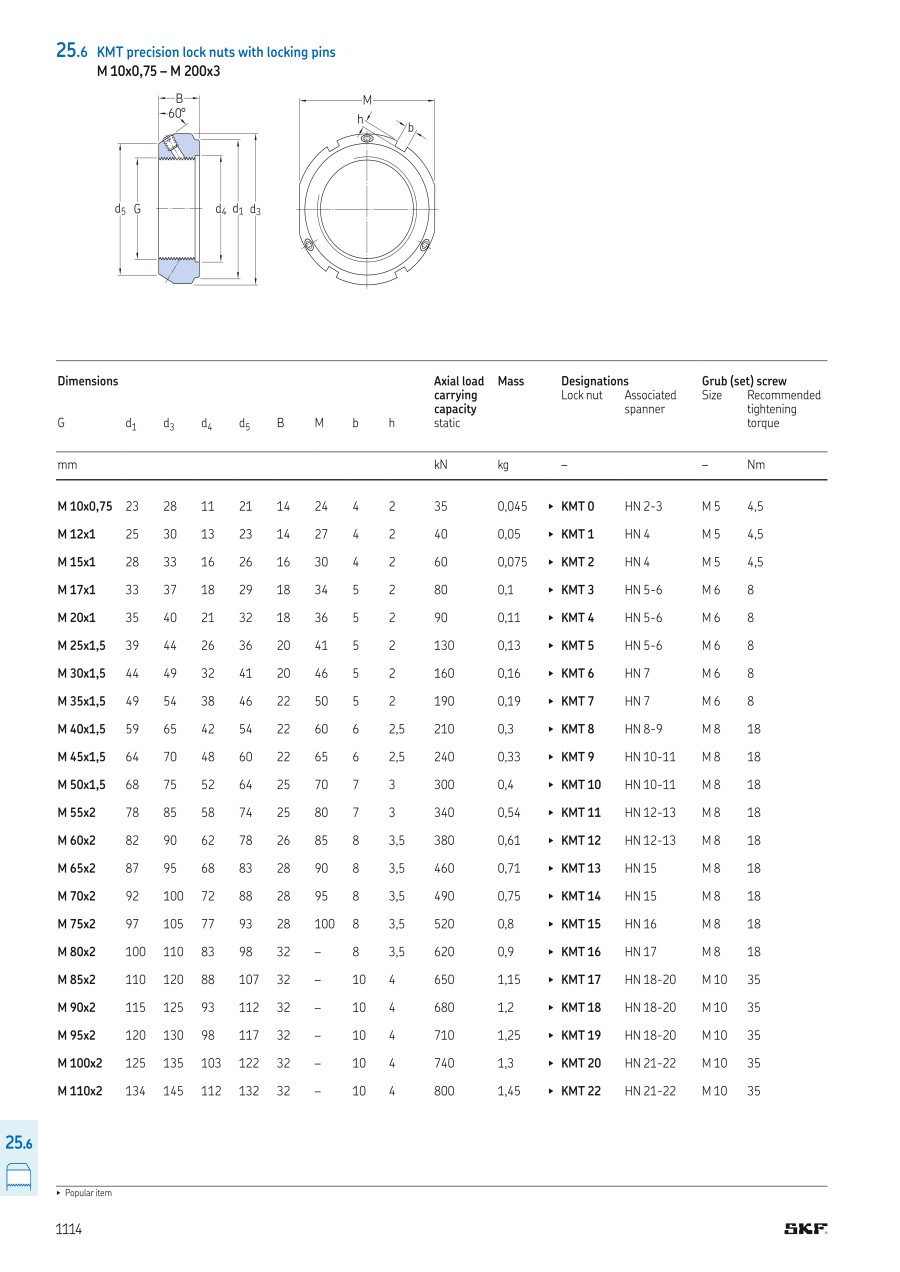

SKF Precision Shaft Nuts with Retaining Pins KMT
・External diameter D(mm): 24-100
・Width B(mm): 14-32
Precision lock nuts with locking pins.
[Features]
・Can be adjusted to compensate for slight angular deviations
・Reusable
・Simple to install and remove
・For shaft threads without keyways
・Designed for frequent installation and removal
・High axial load capacity
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| KMT 0 |
| KMT 1 |
| KMT 2 |
| KMT 3 |
| KMT 4 |
| KMT 5 |
| KMT 6 |
| KMT 7 |
| KMT 8 |
| KMT 9 |
| KMT 10 |
| KMT 11 |
| KMT 12 |
| KMT 13 |
| KMT 14 |
| KMT 15 |
| KMT 16 |
| KMT 17 |
| KMT 18 |
| KMT 19 |
| KMT 20 |
| KMT 22 |
| KMT 24 |
| KMT 26 |
| KMT 28 |
| KMT 30 |
| KMT 32 |
| KMT 34 |
| KMT 36 |
| KMT 38 |
| KMT 40 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Thread Nominal M | Shoulder dimension d3 (mm) | Customs tariff — weight (kg) | Groove depth t (mm) | Shoulder dimension d1 (mm) | Threaded pin width across flats | Static axial load (kN) | Groove width a (mm) | Shoulder dimension d4 (mm) | Tightening torque (Nm) | External diameter M (mm) | Width B (mm) | Suitable wrench | External diameter D (mm) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
67.48 € | 1 | 5 Days | M10x0.75 | 23 | 0.044 | 2 | 21 | M5 | 35 | 4 | 11 | 4.5 | 24 | 14 | HN2/3 | 28 | ||
67.65 € | 1 | 5 Days | M12x1 | 25 | 0.05 | 2 | 23 | M5 | 40 | 4 | 13 | 4.5 | 27 | 14 | HN3 | 30 | ||
75.25 € | 1 | 5 Days | M15x1 | 28 | 0.065 | 2 | 26 | M5 | 60 | 4 | 16 | 4.5 | 30 | 16 | HN4 | 33 | ||
50.74 € | 1 | 5 Days | M17x1 | 33 | 0.094 | 2 | 29 | M6 | 80 | 5 | 18 | 8 | 34 | 18 | HN4 | 37 | ||
51.91 € | 1 | 5 Days | M20x1 | 35 | 0.107 | 2 | 32 | M6 | 90 | 5 | 21 | 8 | 36 | 18 | HN5 | 40 | ||
53.11 € | 1 | 5 Days | M25x1.5 | 39 | 0.131 | 2 | 36 | M6 | 130 | 5 | 26 | 8 | 41 | 20 | HN5 | 44 | ||
54.42 € | 1 | 6 Days | M30x1.5 | 44 | 0.153 | 2 | 41 | M6 | 160 | 5 | 32 | 8 | 46 | 20 | HN6 | 49 | ||
57.05 € | 1 | 5 Days | M35x1,5 | 49 | 0.185 | 2 | 46 | M6 | 190 | 5 | 38 | 8 | 50 | 22 | HN7 | 54 | ||
60.34 € | 1 | 5 Days | M40x1.5 | 59 | 0.279 | 2.5 | 54 | M8 | 210 | 6 | 42 | 18 | 60 | 22 | HN8/9 | 65 | ||
63.62 € | 1 | 5 Days | M45x1,5 | 64 | 0.346 | 2.5 | 60 | M8 | 240 | 6 | 48 | 18 | 65 | 22 | HN9/10 | 70 | ||
77.32 € | 1 | 5 Days | M50x1,5 | 68 | 0.383 | 3 | 64 | M8 | 300 | 7 | 52 | 18 | 70 | 25 | HN10/11 | 75 | ||
89.05 € | 1 | 5 Days | M55x2 | 78 | 0.523 | 3 | 74 | M8 | 340 | 7 | 58 | 18 | 80 | 25 | HN12/13 | 85 | ||
93.66 € | 1 | 5 Days | M60x2 | 82 | 0.585 | 3.5 | 78 | M8 | 380 | 8 | 62 | 18 | 85 | 26 | HN13 | 90 | ||
102.85 € | 1 | 5 Days | M65x2 | 87 | 0.686 | 3.5 | 83 | M8 | 460 | 8 | 68 | 18 | 90 | 28 | HN14 | 95 | ||
113.89 € | 1 | 5 Days | M70x2 | 92 | 0.72 | 3.5 | 88 | M8 | 490 | 8 | 72 | 18 | 95 | 28 | HN15 | 100 | ||
116.66 € | 1 | 5 Days | M75x2 | 97 | 0.756 | 3.5 | 93 | M8 | 520 | 8 | 77 | 18 | 100 | 28 | HN15/16 | 105 | ||
129.08 € | 1 | 5 Days | M80x2 | 100 | 0.91 | 3.5 | 98 | M8 | 620 | 8 | 83 | 18 | - | 32 | HN16/17 | 110 | ||
155.71 € | 1 | 5 Days | M85x2 | 110 | 1.17 | 4 | 107 | M10 | 650 | 10 | 88 | 35 | - | 32 | HN17/18 | 120 | ||
169.09 € | 1 | 5 Days | M90x2 | 115 | 1.216 | 4 | 112 | M10 | 680 | 10 | 93 | 35 | - | 32 | HN18/19 | 125 | ||
192.88 € | 1 | 5 Days | M95x2 | 120 | 1.239 | 4 | 117 | M10 | 710 | 10 | 98 | 35 | - | 32 | HN19/20 | 130 | ||
185.42 € | 1 | 5 Days | M100x2 | 125 | 1.373 | 4 | 122 | M10 | 740 | 10 | 103 | 35 | - | 32 | HN20 | 135 | ||
209.03 € | 1 | 5 Days | M110x2 | 134 | 1.478 | 4 | 132 | M10 | 800 | 10 | 112 | 35 | - | 32 | HN22 | 145 | ||
223.77 € | 1 | 43 Days | M120x2 | 144 | 1.584 | 4 | 142 | M10 | 860 | 10 | 122 | 35 | - | 32 | TMFN23-30 | 155 | ||
283.86 € | 1 | 5 Days | M130x2 | 154 | 1.7 | 5 | 152 | M10 | 920 | 12 | 132 | 35 | - | 32 | TMFN23-30 | 165 | ||
324.14 € | 1 | 94 Days | M140x2 | 164 | 1.78 | 6 | 162 | M10 | 980 | 14 | 142 | 35 | - | 32 | TMFN23-30 | 175 | ||
341.46 € | 1 | 19 Days | M150x2 | 174 | 1.854 | 6 | 172 | M10 | 1.040 | 14 | 152 | 35 | - | 32 | TMFN23-30 | 185 | ||
396.85 € | 1 | 5 Days | M160x3 | 184 | 2.086 | 6 | 182 | M10 | 1.100 | 14 | 162 | 35 | - | 32 | TMFN30-40 | 195 | ||
416.46 € | 1 | 5 Days | M170x3 | 192 | 2.18 | 6 | 192 | M10 | 1.160 | 14 | 172 | 35 | - | 32 | TMFN30-40 | 205 | ||
441.82 € | 1 | 5 Days | M180x3 | 204 | 2.363 | 7 | 202 | M10 | 1.220 | 16 | 182 | 35 | - | 32 | TMFN30-40 | 215 | ||
511.37 € | 1 | 5 Days | M190x3 | 214 | 2.4 | 7 | 212 | M10 | 1.280 | 16 | 192 | 35 | - | 32 | TMFN30-40 | 225 | ||
527.20 € | 1 | 5 Days | M200x3 | 224 | 2.63 | 8 | 222 | M10 | 1.340 | 18 | 202 | 35 | - | 32 | TMFN30-40 | 235 |
Loading...
Basic information
| Design | Shaft nut | Including installation screws yes/no | Yes | Customs tariff — weight per | 1 |
|---|---|---|---|---|---|
| Customs tariff — weight unit | kg | Customs tariff — item number | 73181660 | No. of grooves | 4 |
| Model series | KMT.. | Low design yes/no | No | Customs tariff — country of origin | DE |
| Engineering material | Steel | Threaded bore yes/no | Yes |
Configure
Basic Attributes
-
Thread Nominal M
-
Shoulder dimension d3(mm)
-
Customs tariff — weight(kg)
-
Groove depth t(mm)
-
Shoulder dimension d1(mm)
-
Threaded pin width across flats
-
Static axial load(kN)
-
Groove width a(mm)
-
Shoulder dimension d4(mm)
-
Tightening torque(Nm)
-
External diameter M(mm)
-
Width B(mm)
-
Suitable wrench
-
External diameter D(mm)
-
Type
Filter by standard shipping days
-
- All
- 5 Days or Less
- 6 Days or Less
- 19 Days or Less
- 43 Days or Less
- 94 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
