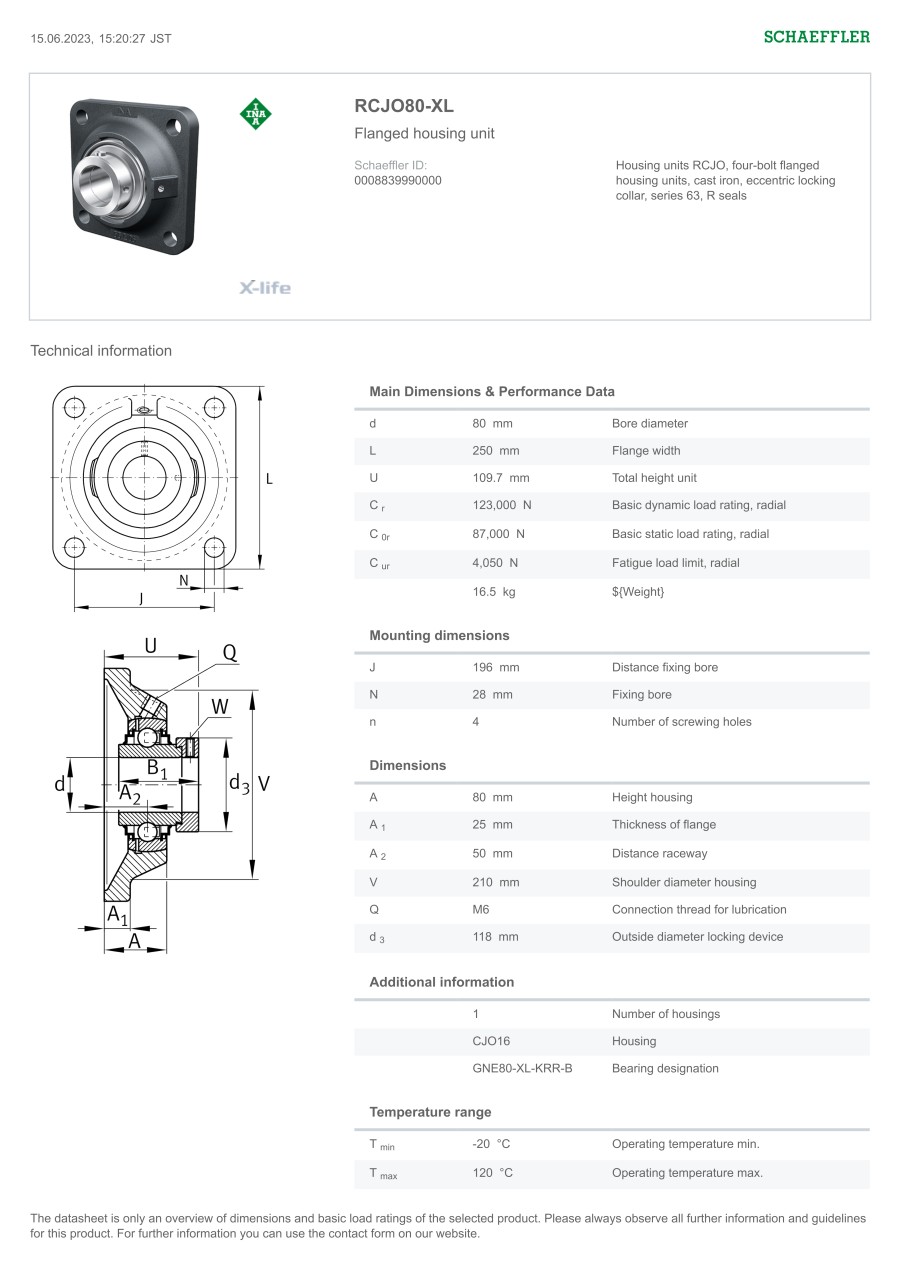

INA Four-Bolt Square Flange Units, Gray Cast Iron, Eccentric Locking Collar, Series 63, R Seal
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 0008839990000 |
| 0008840060000 |
| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | Shaft Bore Dia. d (mm) | Basic Load Rating, Dynamic Rating (N) | Basic Load Rating, Static Rating (N) | B1 (mm) | Housing | d3 max. (mm) | Customs tariff weight (kg) | Center hole distance J (mm) | Unit code | Unit width A (mm) | Unit length L (mm) | A1 (mm) | Bearing code | A2 (mm) | U (mm) | V (mm) | Product code | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
- | 1 | 5 Days | 80 | 123000 | 87000 | 70.7 | CJO16 | 118 | 16.5 | 196 | GG.CJ016 | 55.8 | 250 | 25 | GNE90-KRR-B | 41.3 | 109.7 | 210 | RCJO80-XL | |||
689.66 € | 1 | 5 Days | 90 | 143000 | 107000 | 101 | CJO18 | 132 | 21.76 | 216 | GG.CJ018 | 85 | 280 | 28.5 | GNE80-KRR-B | 48.5 | 114 | 230 | RCJO90-XL |
Loading...
Basic information
| Bearing Unit, Type | Square Flange Type | Unit Body Material | Cast Iron | Customs tariff goods number | 84832000 |
|---|---|---|---|---|---|
| Method of fixing | Eccentric locking collar | Number of fixing holes | 4 | Customs tariff weight unit | kg |
| Hole shape | cylindrical | Unit material | Gray cast iron | Model | square |
| Model series | RCJO.. | Width/diameter of fixing hole N(mm) | 28 | Thread | M6 |
| Relubrication possible yes/no | yes | Customs tariff weight per | 1 | Customs tariff country of origin | DE |
Configure
Basic Attributes
-
Shaft Bore Dia. d(mm)
-
B1(mm)
-
Housing
-
d3 max.(mm)
-
Customs tariff weight(kg)
-
Center hole distance J(mm)
-
Unit code
-
Unit width A(mm)
-
Unit length L(mm)
-
A1(mm)
-
Bearing code
-
A2(mm)
-
U(mm)
-
V(mm)
-
Type
-
Filter by CAD data type
- 3D
Filter by standard shipping days
-
- All
- 5 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
