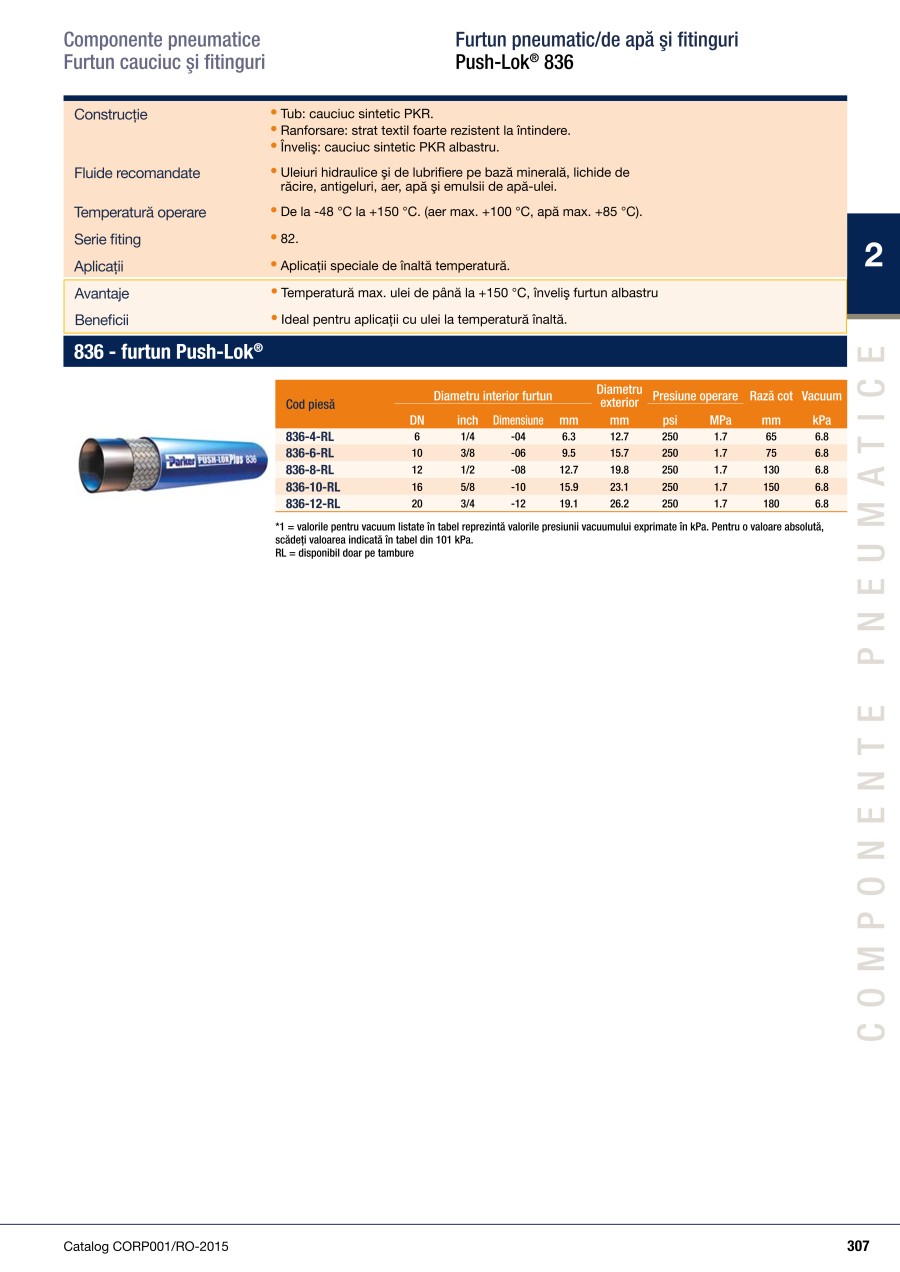

PARKER Push-Lok Hose 836
(i)Remark
- If you want to order "X" meters of hose, please enter "X" as the quantity. For example: For a 10 meter hose, please enter 10 in the quantity field.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 836-4-RL |
| 836-6-RL |
| 836-8-RL |
| 836-12-RL |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | I.D. d (mm) | Minimum Bending Radius (mm) | O.D. D (Ø) | Customs tariff weight (kg) | Size | Nominal width (mm) | Vacuum (kPa) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
61.68 € | 1 | 5 Days | 6.4 | 65 | 12.7 | 0 | -4 | 6 | 95 | ||
70.25 € | 1 | 5 Days | 9.5 | 75 | 15.7 | 0 | -6 | 10 | 95 | ||
82.92 € | 1 | 5 Days | 12.7 | 130 | 19.8 | 0 | -8 | 12 | 95 | ||
122.95 € | 1 | 5 Days | 19.1 | 180 | 26.2 | 0.36 | -12 | 19 | 51 |
Loading...
Basic information
| Max. Operating Pressure(MPa) | 1.7 | Operating Temperature Range(°C) | -48::150 | Inner layer | Synthetic PKR rubber |
|---|---|---|---|---|---|
| Customs tariff weight unit | kg | Outer layer | Blue synthetic PKR rubber in accordance with MSHA specifications | Type | 836 |
| Min. burst pressure (MPa) | 6.8 | Area of application | High temperatures | Fitting series | 82 |
| Customs tariff item number | 40093100 | Min. burst pressure (psi) | 1,000 | Pressure classification | Low pressure |
| Substrate | High-strength textile yarn layer | Customs tariff weight per | 1 | Customs tariff country of origin | US |
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
