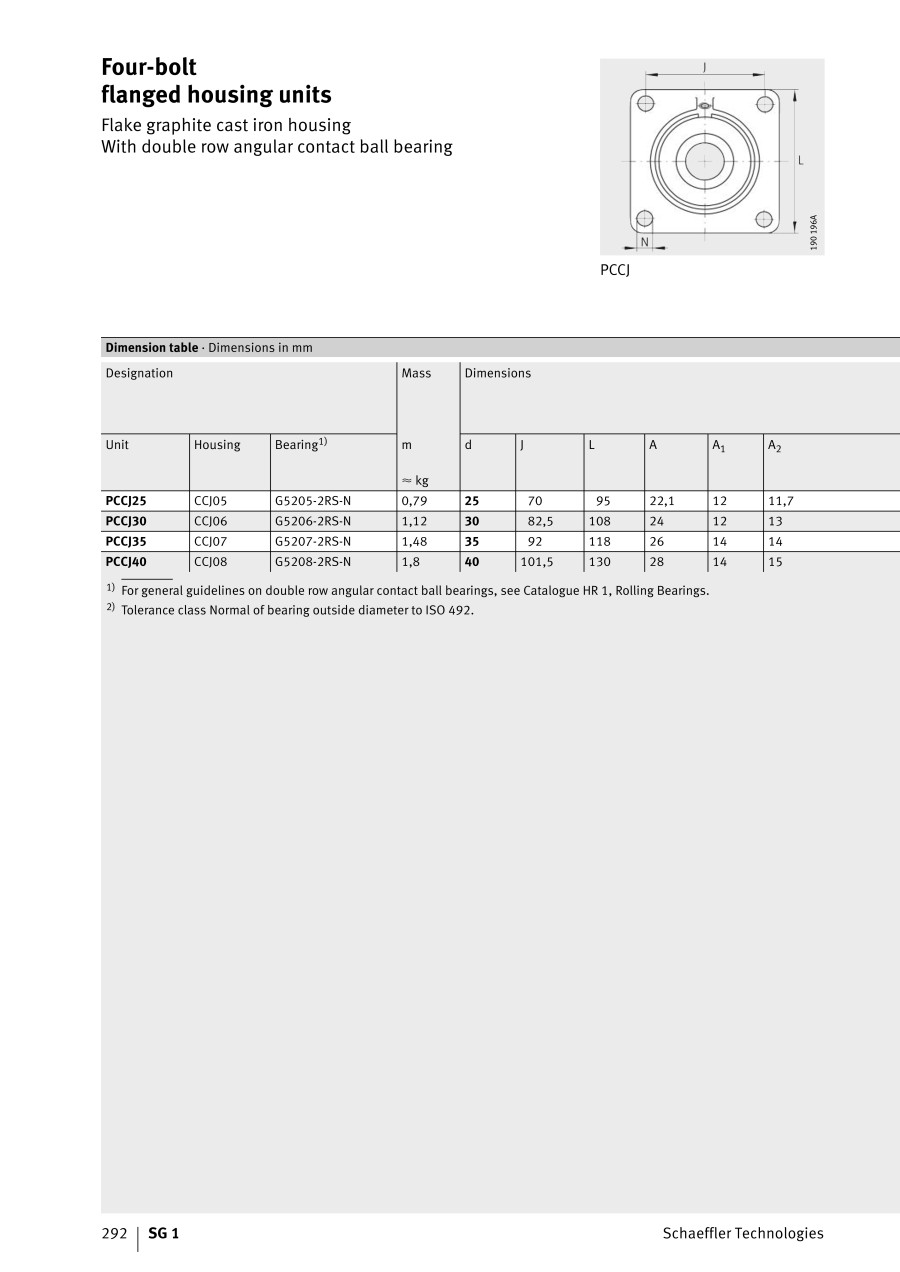

INA Four-Bolt Square Flange Units, Gray Cast Iron, Angular Contact Ball Bearing Two-Row, P Seal
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 0008905100000 |
| 0008905290000 |
| 0008905450000 |
| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | Shaft Bore Dia. d (mm) | Basic Load Rating, Dynamic Rating (N) | Basic Load Rating, Static Rating (N) | Housing | Customs tariff weight (kg) | S (mm) | Center hole distance J (mm) | Unit code | Unit width A (mm) | Unit length L (mm) | A1 (mm) | Bearing code | A2 (mm) | U (mm) | B (mm) | V (mm) | Width/diameter of fixing hole N (mm) | Z (mm) | Customs tariff country of origin | Product code | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
70.65 € | 1 | 5 Days | 25 | 21600 | 14900 | CCJ05 | 0.89 | 2.4 | 70 | GG.CCJ05 | 22.1 | 95 | 12 | G5205-2RS-N | 11.7 | 26.7 | 30 | 64 | 11.5 | 52 | SK | PCCJ25 | |||
82.62 € | 1 | 5 Days | 30 | 30000 | 21400 | CCJ06 | 1.12 | 3.2 | 82.5 | GG.CCJ06 | 24 | 108 | 12 | G5206-2RS-N | 13 | 29.7 | 34 | 76 | 11.5 | 62 | DE | PCCJ30 | |||
116.51 € | 1 | 5 Days | 40 | 50000 | 38000 | CCJ08 | 2.01 | 3.2 | 101.5 | GG.CCJ08 | 28 | 130 | 14 | G5208-2RS-N | 15 | 33.7 | 38 | 98 | 14 | 80 | DE | PCCJ40 |
Loading...
Basic information
| Bearing Unit, Type | Square Flange Type | Unit Body Material | Cast Iron | Customs tariff goods number | 84832000 |
|---|---|---|---|---|---|
| Method of fixing | Precision fit | Number of fixing holes | 4 | Customs tariff weight unit | kg |
| Hole shape | cylindrical | Unit material | Gray cast iron | Model | square |
| Model series | PCCJ.. | Thread | M6 | Relubrication possible yes/no | yes |
| Customs tariff weight per | 1 |
Configure
Basic Attributes
-
Shaft Bore Dia. d(mm)
-
Housing
-
Customs tariff weight(kg)
-
S(mm)
-
Center hole distance J(mm)
-
Unit code
-
Unit width A(mm)
-
Unit length L(mm)
-
A1(mm)
-
Bearing code
-
A2(mm)
-
U(mm)
-
B(mm)
-
V(mm)
-
Width/diameter of fixing hole N(mm)
-
Z(mm)
-
Customs tariff country of origin
-
Type
-
Filter by CAD data type
- 3D
Filter by standard shipping days
-
- All
- 5 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
