PARKER Parkrimp No-Skive Fitting 11C77
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 11C77-16-8 |
| 11C77-20-10 |
| 11C77-20-12 |
| 11C77-25-12 |
| 11C77-25-16 |
| 11C77-30-16 |
| 11C77-30-20 |
| 11C77-38-20 |
| 11C77-38-24 |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Nominal Dia. (mm) | A (mm) | Customs tariff weight (kg) | Thread or tube size | W | B (mm) | Hose fitting size | E (mm) | Thread diameter metric | Tube O.D. | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
44.20 € | 1 | 92 Days | 12 | 77 | 0.212 | -16 | 30 | 42 | -08 | 45 | M24x1.5 | 16 | ||
66.25 € | 1 | 92 Days | 16 | 92 | 0.354 | -20 | 36 | 53 | -10 | 53 | M30x2 | 20 | ||
105.83 € | 1 | 5 Days | 19 | 108 | 0.455 | -20 | 36 | 62 | -12 | 60 | M30x2 | 20 | ||
115.20 € | 1 | 92 Days | 19 | 108 | 0 | -25 | 46 | 62 | -12 | 58.5 | M36x2 | 25 | ||
160.08 € | 1 | 5 Days | 25 | 131 | 0.785 | -25 | 46 | 77 | -16 | 69 | M36x2 | 25 | ||
156.71 € | 1 | 92 Days | 25 | 131 | 0.854 | -30 | 50 | 77 | -16 | 69 | M42x2 | 30 | ||
369.26 € | 1 | 5 Days | 31 | 145 | 1.134 | -30 | 50 | 82 | -20 | 73 | M42x2 | 30 | ||
202.58 € | 1 | 72 Days | 31 | 151 | 1.422 | -38 | 60 | 87 | -20 | 78 | M52x2 | 38 | ||
563.25 € | 1 | 5 Days | 40 | 179 | 0 | -38 | 60 | 112 | -24 | 101 | M52x2 | 38 |
Loading...
Basic information
| Customs tariff weight unit | kg | Steel | Galvanized steel, Cr(VI)-free | Connection group | DIN - metric |
|---|---|---|---|---|---|
| Norm | ISO 12151-2-SWE-S | Common name | DKOS 90° | Description of connection type | Taper with union nut - O-ring - heavy series - 90° elbow |
| Connection type | 1C | Fitting series | 77 | Customs tariff item number | 73269098 |
| Operating pressure Mpa | 42 | Customs tariff weight per | 1 | Fitting | Parkrimp fitting |
| Customs tariff country of origin | DE |

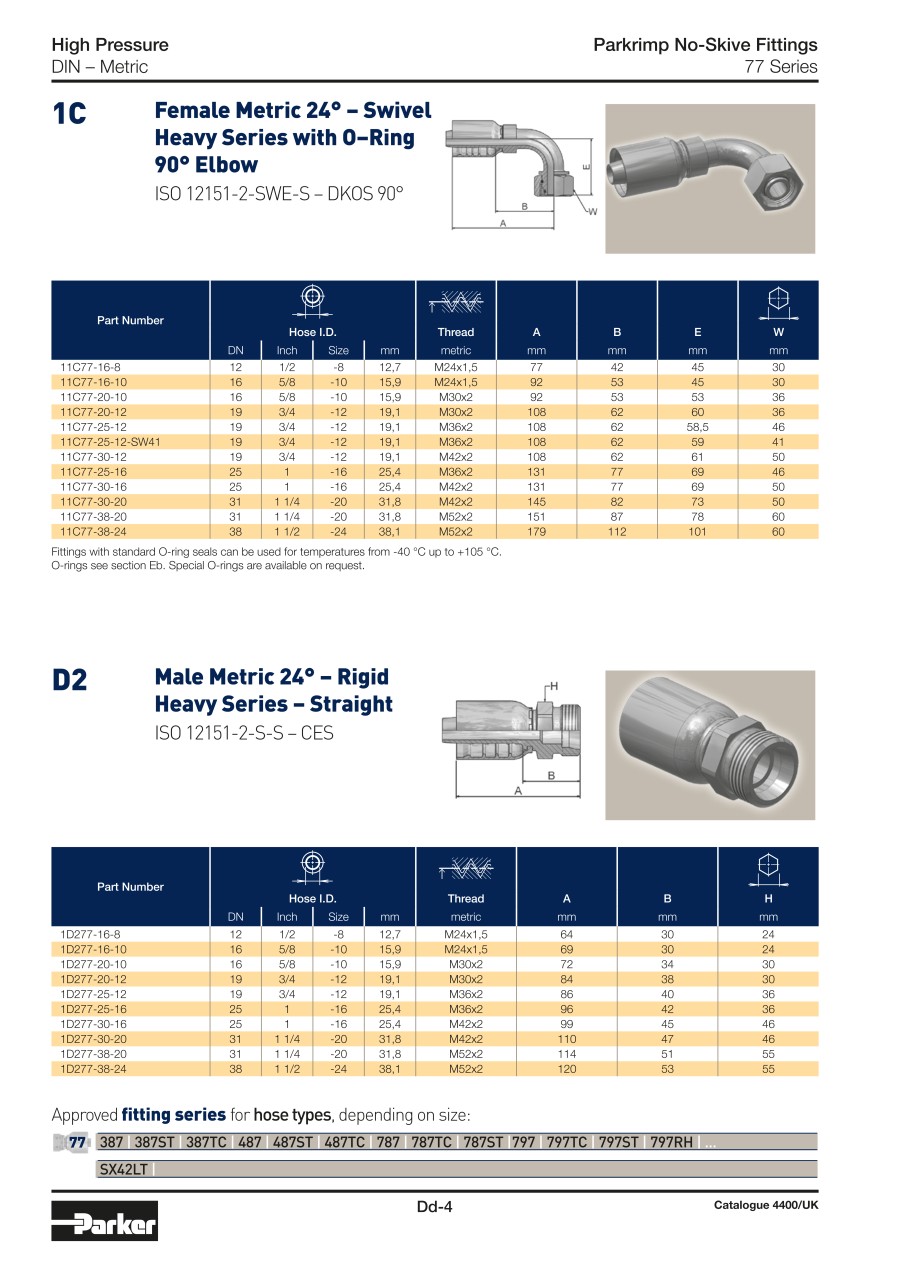

- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
