Configure

Nominal Dia.(mm)
- 6
- 8
- 10
- 12
- 16
- 19
- 25
- 31
- 40
A(mm)
- 44
- 46
- 47
- 48
- 49
- 50
- 53
- 54
- 55
- 59
- 65
- 77
- 85
Customs tariff weight(kg)
- 0.046
- 0.056
- 0.061
- 0.067
- 0.072
- 0.078
- 0.082
- 0.083
- 0.094
- 0.095
- 0.096
- 0.151
- 0.181
- 0.205
- 0.235
- 0.336
- 0.561
- 1.006
Thread or tube size
- -42
- -35
- -28
- -22
- -18
- -15
- -12
- -10
- -08
- -06
H(mm)
- 12
- 14
- 17
- 19
- 22
- 27
- 30
- 36
- 46
- 55
B(mm)
- 20
- 22
- 24
- 26
- 29
- 33
- 35
- 38
- 39
Operating pressure Mpa
- 16
- 21
- 25
- 28
- 31
- 35
- 40
- 42.5
Hose fitting size
- -24
- -20
- -16
- -12
- -10
- -08
- -06
- -05
- -04
Thread diameter metric
Tube O.D.
- 6
- 8
- 10
- 12
- 15
- 18
- 22
- 28
- 35
- 42
Type
Est. shipping days
- All
- Within 5 working days

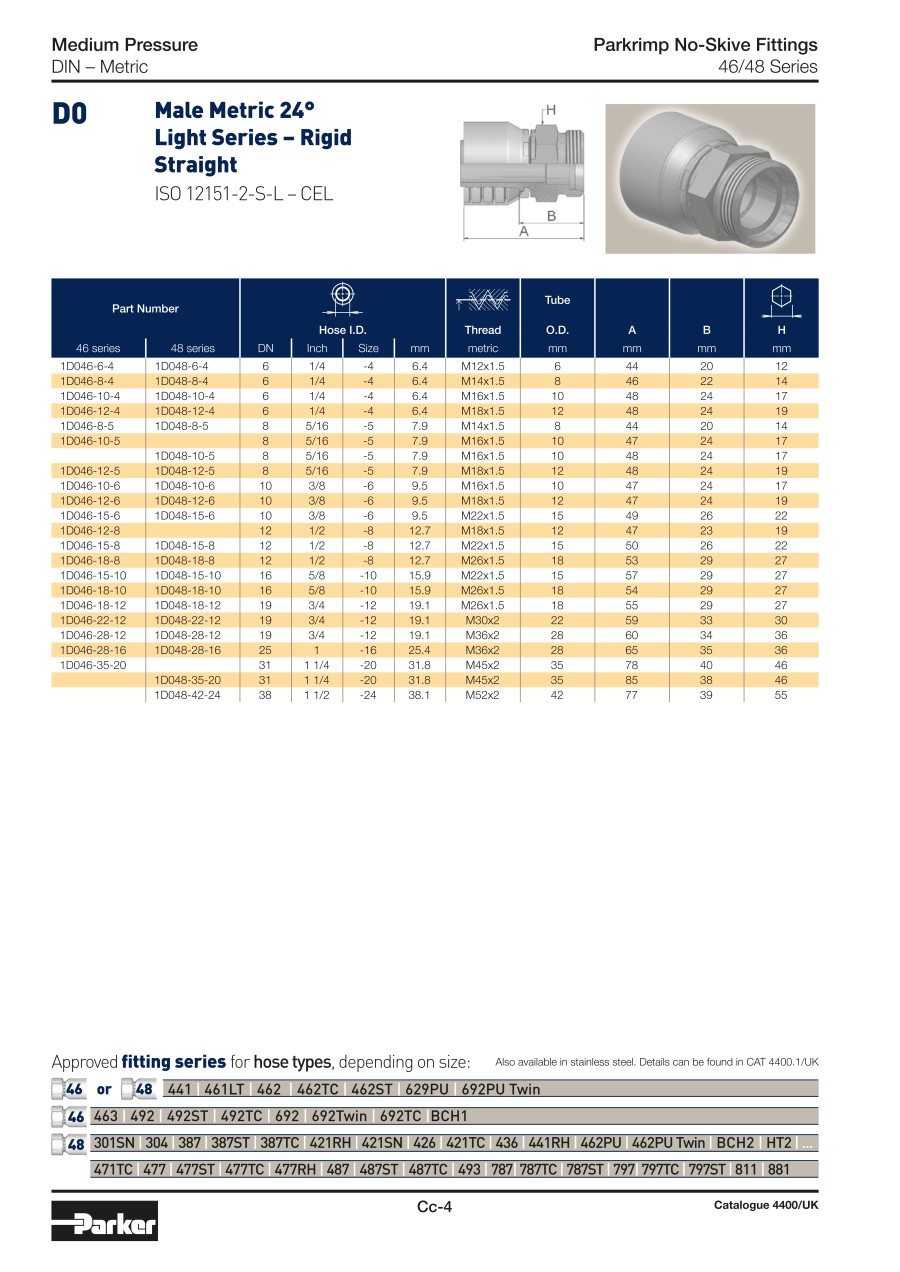

PARKER Parkrimp No-Skive Fitting 1D048

Catalog

Part number:

Still undefined. 18 possible part numbers found.

Part number list
Catalog

Part number list

Number of items

Part number

Nominal Dia.

(mm)

Customs tariff weight

(kg)

Thread or tube size

(mm)

Operating pressure Mpa

Hose fitting size

Thread diameter metric

Tube O.D.

Minimum order quantity

6	44	0.061	-06	12	20	25	-04	M12x1.5	6	1 pieces
6	46	0.067	-08	14	22	42.5	-04	M14x1.5	8	1 pieces
8	44	0.046	-08	14	20	42.5	-05	M14x1.5	8	1 pieces
6	48	0.072	-10	17	24	40	-04	M16x1.5	10	1 pieces
8	48	0.078	-10	17	24	40	-05	M16x1.5	10	1 pieces
10	47	0.096	-10	17	24	40	-06	M16x1.5	10	1 pieces
6	48	0.056	-12	19	24	35	-04	M18x1.5	12	1 pieces
8	48	0.082	-12	19	24	35	-05	M18x1.5	12	1 pieces
10	47	0.094	-12	19	24	35	-06	M18x1.5	12	1 pieces
10	49	0.083	-15	22	26	31	-06	M22x1.5	15	1 pieces
12	50	0.095	-15	22	26	31	-08	M22x1.5	15	1 pieces
12	53	0.151	-18	27	29	28	-08	M26x1.5	18	1 pieces
16	54	0.181	-18	27	29	28	-10	M26x1.5	18	1 pieces
19	55	0.205	-18	27	29	28	-12	M26x1.5	18	1 pieces
19	59	0.235	-22	30	33	28	-12	M30x2	22	1 pieces
25	65	0.336	-28	36	35	21	-16	M36x2	28	1 pieces
31	85	0.561	-35	46	38	16	-20	M45x2	35	1 pieces
40	77	1.006	-42	55	39	16	-24	M52x2	42	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

17.71 € ( 21.07 € )	5 working days
15.78 € ( 18.78 € )	5 working days
85.45 € ( 101.69 € )	5 working days
22.00 € ( 26.18 € )	5 working days
17.18 € ( 20.44 € )	5 working days
17.78 € ( 21.16 € )	5 working days
27.78 € ( 33.06 € )	5 working days
23.03 € ( 27.41 € )	5 working days
16.38 € ( 19.49 € )	5 working days
29.49 € ( 35.09 € )	5 working days
19.92 € ( 23.70 € )	5 working days
47.88 € ( 56.98 € )	5 working days
27.09 € ( 32.24 € )	5 working days
63.03 € ( 75.01 € )	5 working days
38.42 € ( 45.72 € )	5 working days
63.62 € ( 75.71 € )	5 working days
165.85 € ( 197.36 € )	5 working days
256.80 € ( 305.59 € )	5 working days
