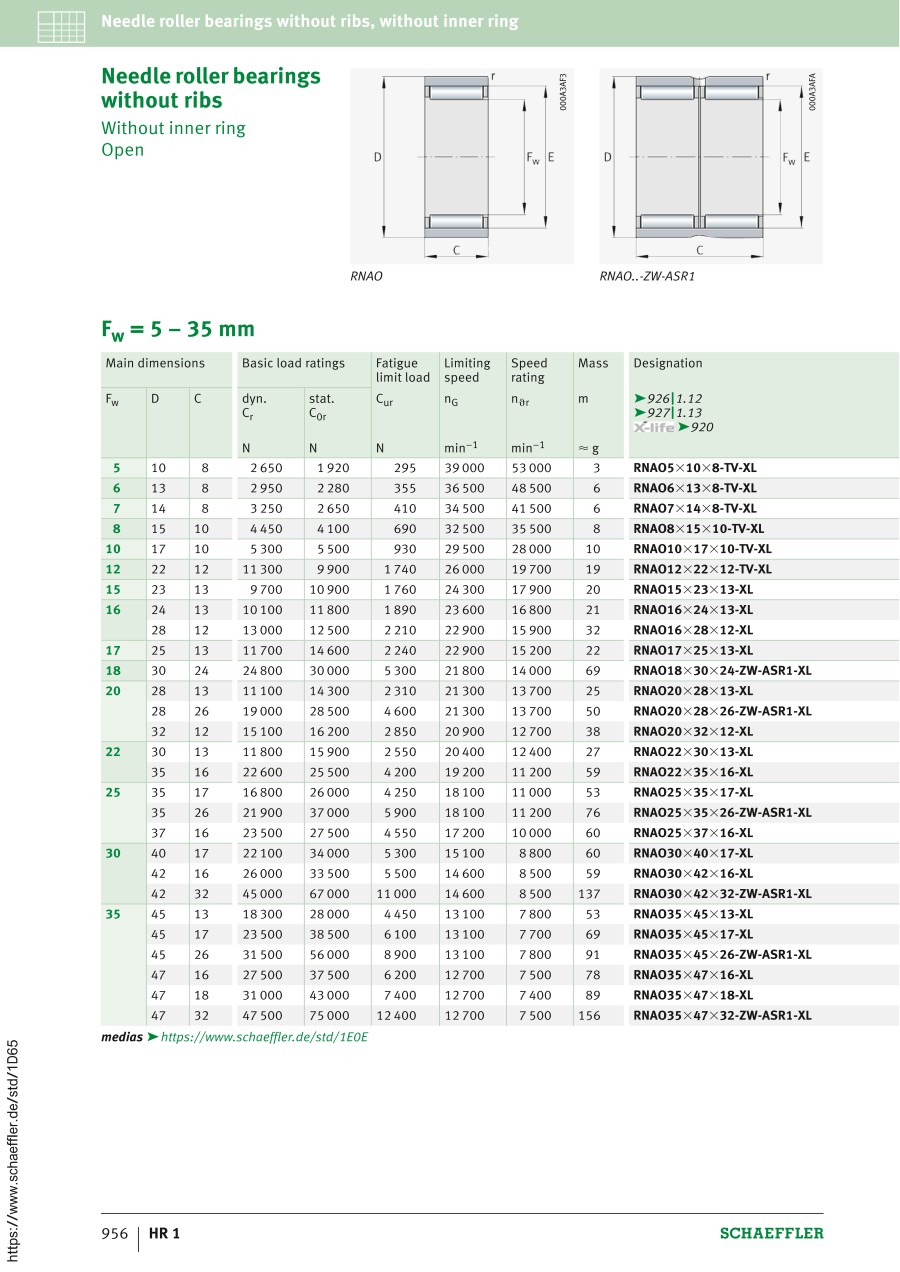

INA Single-Row Needle Roller Bearings without Lips, without Inner Ring and without Lubrication Bore, Open-Type
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| 0000053550000 |
| 0000061730000 |
| 0001615430000 |
| 0507758390000 |
| 0507759100000 |
| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | Internal Diameter (mm) | Outer Diameter (mm) | Width (mm) | Number of Raceway Ring Rows | Allowable Rotational Speed (1/min) | Basic Load Rating, Dynamic Rating (N) | Basic Load Rating, Static Rating (N) | Product type | Inner ring (yes / no) | r (min.) (mm) | Outer ring internal diameter E (mm) | Fatigue limit load Pu (kN) | Cage designation | Marking cover / seal | Can be relubricated (yes / no) | Model series | Lip on outer ring yes/no | Envelope circle diameter F (mm) | Ref. speed rpm | Bearing clearance identifier | Cage material | Customs tariff — weight | Product code | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| - | 14.52 € | 1 | 5 Days | 17 | 25 | 13 | Single Row | 22900 | 11700 | 14600 | Needle roller bearings | No | 0.3 | 21 | 2.24 | - | None | No | RNAO.. | No | 17 | 15,200 | CN | Sheet steel | 0.022 | - | ||
| - | 21.58 € | 1 | 5 Days | 25 | 35 | 17 | Single Row | 18100 | 16800 | 26000 | Needle roller bearings | No | 0.3 | 29 | 4.25 | - | None | No | RNAO.. | No | 17 | 11,000 | CN | Sheet steel | 0.054 | - | ||
| - | 12.08 € | 1 | 5 Days | 8 | 15 | 10 | Single Row | 32500 | 4450 | 4100 | Needle roller bearings | No | 0.3 | 11 | 0.69 | Cage made of glass fiber-reinforced polyamide 66 | None | No | RNAO.. | No | 8 | 35,500 | CN | Resin | 0.008 | - | ||
15.73 € | 1 | 5 Days | 17 | 25 | 13 | - | 22900 | 11700 | 14600 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 0.022 | RNAO17X25X13-XL | |||
23.38 € | 1 | 5 Days | 25 | 35 | 17 | - | 18100 | 16800 | 26000 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 0.053 | RNAO25X35X17-XL |
Loading...
Basic information
| Customs tariff — country of origin | DE | Customs tariff — weight unit | kg | Customs tariff — weight per | 1 |
|---|---|---|---|---|---|
| Customs tariff — item number | 84824000 |
Configure
Basic Attributes
-
Internal Diameter(mm)
-
Outer Diameter(mm)
-
Width(mm)
-
Number of Raceway Ring Rows
-
Product type
-
Inner ring (yes / no)
-
r (min.)(mm)
-
Outer ring internal diameter E(mm)
-
Fatigue limit load Pu(kN)
-
Cage designation
-
Marking cover / seal
-
Can be relubricated (yes / no)
-
Model series
-
Lip on outer ring yes/no
-
Envelope circle diameter F(mm)
-
Ref. speed rpm
-
Bearing clearance identifier
-
Cage material
-
Customs tariff — weight
-
Type
-
Filter by CAD data type
- 3D
Filter by standard shipping days
-
- All
- 5 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
