Radial insert ball bearings / single row / KLL / eccentric locking collar / INA

Configure

Inner Diameter d(φ)
- 20
- 25
- 30
- 40
- 50
Outer Diameter D(φ)
- 47
- 52
- 62
- 80
- 90
Width B (or T)(mm)
- 34.1
- 34.9
- 36.5
- 42.9
- 49.2
Basic Dynamic Load Rating(N)
- 12800
- 14000
- 19500
- 34500
- 37500
Shoulder dimension d3(mm)
- 33
- 37.5
- 44
- 58
- 69
C2(mm)
- 16.6
- 20.2
- 26.4
- 26.6
- 28.1
Shoulder dimension d1(mm)
- 27.6
- 33.8
- 40.2
- 52.3
- 62.8
Threaded pin width across flats
- 3
- 4
- 5
Designator cover / seal
- Two zinc-plated sheet steel washers angled outwards with NBR component between and radially preloaded sealing lip
- Two zinc-plated, outward angled sheet steel washers in outer ring with a zinc-plated sheet steel angle ring pressed onto the inner ring
Width C(mm)
- 14
- 15
- 18
- 21
- 22
Width with mounting components B1(mm)
- 43.7
- 44.5
- 48.5
- 56.5
- 62.8
Marking cover / seal
- KLL
- KRR
Central length S(mm)
- 17.1
- 17.5
- 18.3
- 21.4
- 24.6
Shoulder dimension D1(mm)
- 37.4
- 42.5
- 52
- 68.3
- 77.3
Customs tariff — weight(kg)
- 0.2
- 0.25
- 0.38
- 0.76
- 1
Type
CAD
- 3D
Est. shipping days
- All
- Within 5 working days

INA

Radial insert ball bearings / single row / KLL / eccentric locking collar / INA

Catalog

Part number:

Still undefined. 5 possible part numbers found.

Part number list
Catalog

Part number list

Number of items

Part number

Inner Diameter d

(φ)

Outer Diameter D

(φ)

Width B (or T)

(mm)

Basic Dynamic Load Rating

(N)

Basic Load Rating Static Rating

(N)

Shoulder dimension d3

(mm)

Shoulder dimension d1

(mm)

Threaded pin width across flats

Designator cover / seal

Width C

(mm)

Width with mounting components B1

(mm)

Marking cover / seal

Central length S

(mm)

Shoulder dimension D1

(mm)

Customs tariff — weight

(kg)

Product code

Minimum order quantity

Data sheet	20	47	34.1	12800	6600	33	16.6	27.6	3	Two zinc-plated sheet steel washers angled outwards with NBR component between and radially preloaded sealing lip	14	43.7	KRR	17.1	37.4	0.2	E20-XL-KLL	1 pieces
Data sheet	25	52	34.9	14000	7800	37.5	20.2	33.8	3	Two zinc-plated, outward angled sheet steel washers in outer ring with a zinc-plated sheet steel angle ring pressed onto the inner ring	15	44.5	KLL	17.5	42.5	0.25	E25-XL-KLL	1 pieces
Data sheet	30	62	36.5	19500	11300	44	26.6	40.2	4	Two zinc-plated, outward angled sheet steel washers in outer ring with a zinc-plated sheet steel angle ring pressed onto the inner ring	18	48.5	KLL	18.3	52	0.38	E30-XL-KLL	1 pieces
Data sheet	40	80	42.9	34500	19800	58	28.1	52.3	5	Two zinc-plated, outward angled sheet steel washers in outer ring with a zinc-plated sheet steel angle ring pressed onto the inner ring	21	56.5	KLL	21.4	68.3	0.76	E40-XL-KLL	1 pieces
Data sheet	50	90	49.2	37500	23200	69	26.4	62.8	5	Two zinc-plated, outward angled sheet steel washers in outer ring with a zinc-plated sheet steel angle ring pressed onto the inner ring	22	62.8	KLL	24.6	77.3	1	E50-XL-KLL	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

29.68 € ( 35.32 € )	5 working days
31.20 € ( 37.13 € )	5 working days
38.14 € ( 45.39 € )	5 working days
53.82 € ( 64.05 € )	5 working days
68.88 € ( 81.97 € )	5 working days

Catalog

Products homepage

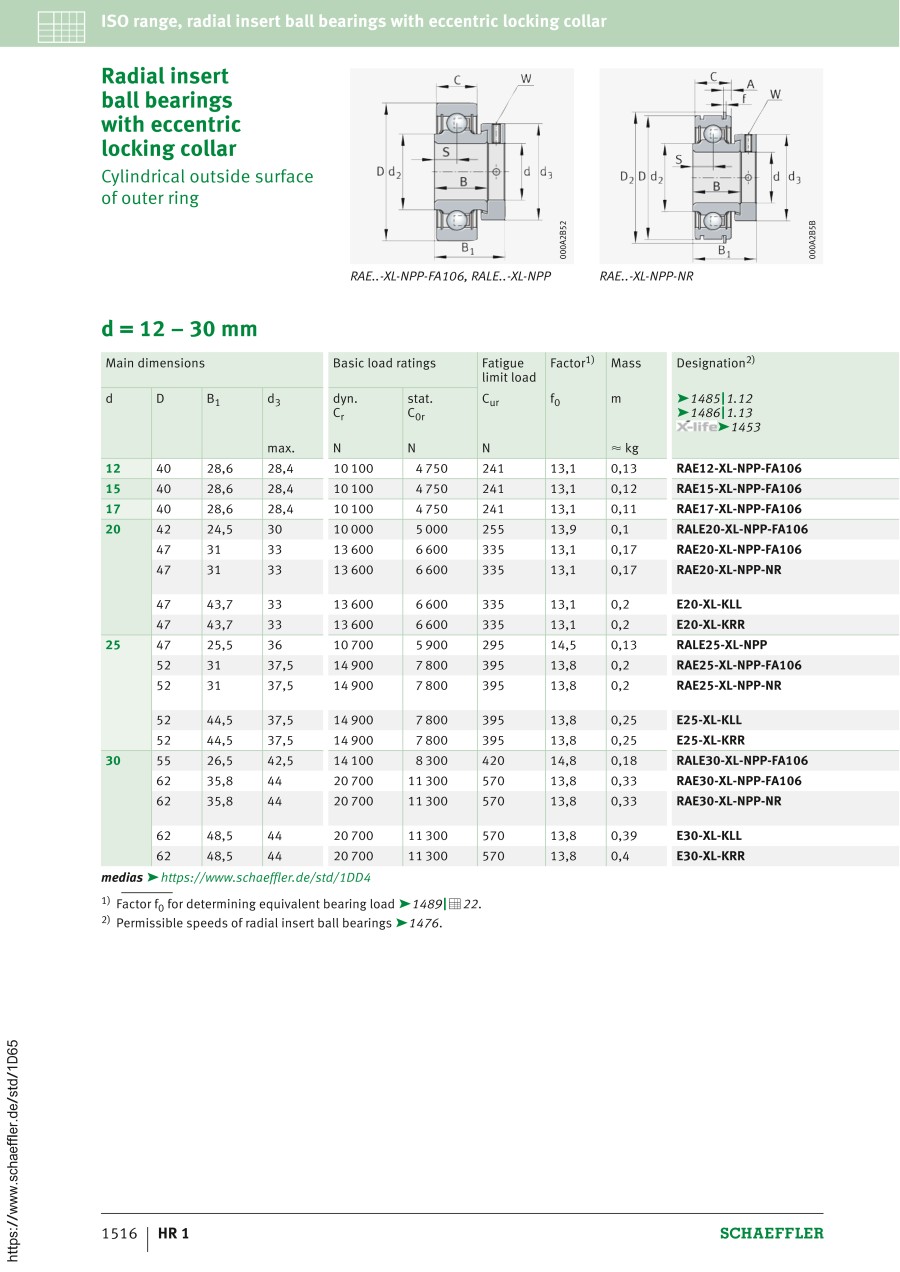

Catalog (2-page spread)
