Configure

Customs tariff weight(kg)
- 0
- 0.5
- 0.6
- 0.7
- 1
- 1.3
- 1.345
- 1.5
- 1.8
- 2
- 2.75
- 3
- 3.3
- 3.5
- 3.75
- 4
- 4.28
- 4.5
- 5
- 6.25
- 6.6
- 6.75
- 7
- 8
- 8.3
- 8.5
- 9.5
- 11
- 12
Nominal volume(l)
- 0.075
- 0.16
- 0.32
- 0.5
- 0.6
- 0.7
- 0.75
- 1
- 1.4
- 2
- 2.8
- 3.5
- 16
Fluid connection type
- Internal thread to ISO 228 (BSP)
- Internal thread to ISO 228 (BSP) and external thread for location
Size of connection for hydraulic fluid
- G 1/2
- G 3/4
Surface of tank interior
Maximum operating pressure (bar)
- 100
- 140
- 160
- 180
- 200
- 210
- 250
- 300
- 330
Surface of connection side
Diaphragm material
- ECO
- NBR
Customs tariff item number
- 40169997
- 84798970
thread
Tank material
Est. shipping days
- All
- Within 5 working days

HYDAC Hydraulic Membrane Accumulator SBO

Catalog

Part number:

Still undefined. 45 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

Customs tariff weight

(kg)

Nominal volume

(l)

Fluid connection type

Size of connection for hydraulic fluid

Surface of tank interior

Maximum operating pressure (bar)

Surface of connection side

Diaphragm material

Customs tariff item number

thread

Tank material

Minimum order quantity

6.6	2	Internal thread to ISO 228 (BSP) and external thread for location	G 3/4	Steel	210	Steel	NBR	84798970	M45x1.5	Steel	1 pieces
4	2	Internal thread to ISO 228 (BSP)	G 3/4	Steel	100	Steel	NBR	84798970	None	Steel	1 pieces
4	0.75	Internal thread to ISO 228 (BSP)	G 1/2	Steel	330	Steel	NBR	84798970	None	Steel	1 pieces
8.5	1.4	Internal thread to ISO 228 (BSP)	G 1/2	Steel	330	Steel	NBR	84798970	None	Steel	1 pieces
0.6	0.075	Internal thread to ISO 228 (BSP)	G 1/2	Steel	250	Steel	NBR	84798970	None	Steel	1 pieces
0.5	0.16	Internal thread to ISO 228 (BSP)	G 1/2	Steel	210	Steel	NBR	84798970	None	Steel	1 pieces
1.3	0.32	Internal thread to ISO 228 (BSP)	G 1/2	Steel	210	Steel	NBR	84798970	None	Steel	1 pieces
1.345	0.32	Internal thread to ISO 228 (BSP)	G 1/2	LT-steel (low-temperature)	210	LT-steel (low-temperature)	ECO	84798970	None	LT-steel (low-temperature)	1 pieces
1.5	0.5	Internal thread to ISO 228 (BSP)	G 1/2	Steel	210	Steel	NBR	84798970	None	Steel	1 pieces
2	0.5	Internal thread to ISO 228 (BSP)	G 1/2	LT-steel (low-temperature)	210	LT-steel (low-temperature)	ECO	84798970	None	LT-steel (low-temperature)	1 pieces
1	0.5	Internal thread to ISO 228 (BSP) and external thread for location	G 1/2	Steel	210	Steel	NBR	84798970	M33x1.5	Steel	1 pieces
3.3	0.6	Internal thread to ISO 228 (BSP)	G 1/2	Steel	330	Steel	NBR	84798970	None	Steel	1 pieces
3.5	0.6	Internal thread to ISO 228 (BSP) and external thread for location	G 1/2	Steel	330	Steel	NBR	84798970	M33x1.5	Steel	1 pieces
1.8	0.7	Internal thread to ISO 228 (BSP)	G 1/2	Steel	100	Steel	NBR	84798970	None	Steel	1 pieces
1.8	0.7	Internal thread to ISO 228 (BSP)	G 1/2	LT-steel (low-temperature)	100	LT-steel (low-temperature)	ECO	84798970	None	LT-steel (low-temperature)	1 pieces
0	0.7	Internal thread to ISO 228 (BSP) and external thread for location	G 1/2	Steel	100	Steel	NBR	40169997	M33x1.5	Steel	1 pieces
2.75	0.75	Internal thread to ISO 228 (BSP)	G 1/2	Steel	210	Steel	NBR	84798970	None	Steel	1 pieces
3	0.75	Internal thread to ISO 228 (BSP) and external thread for location	G 1/2	Steel	210	Steel	NBR	84798970	M33x1.5	Steel	1 pieces
4.28	0.75	Internal thread to ISO 228 (BSP) and external thread for location	G 1/2	Steel	330	Steel	NBR	84798970	M33x1.5	Steel	1 pieces
4	0.75	Internal thread to ISO 228 (BSP) and external thread for location	G 1/2	LT-steel (low-temperature)	330	LT-steel (low-temperature)	ECO	84798970	M33x1.5	LT-steel (low-temperature)	1 pieces
3.5	1	Internal thread to ISO 228 (BSP)	G 1/2	Steel	200	Steel	NBR	84798970	None	Steel	1 pieces
3.5	1	Internal thread to ISO 228 (BSP) and external thread for location	G 1/2	Steel	200	Steel	NBR	84798970	M33x1.5	Steel	1 pieces
4.5	1.4	Internal thread to ISO 228 (BSP)	G 1/2	Steel	140	Steel	NBR	84798970	None	Steel	1 pieces
3.5	1.4	Internal thread to ISO 228 (BSP) and external thread for location	G 1/2	Steel	140	Steel	NBR	84798970	M33x1.5	Steel	1 pieces
6.25	1.4	Internal thread to ISO 228 (BSP)	G 1/2	Steel	210	Steel	NBR	84798970	None	Steel	1 pieces
5	1.4	Internal thread to ISO 228 (BSP) and external thread for location	G 1/2	Steel	210	Steel	NBR	84798970	M33x1.5	Steel	1 pieces
8.3	1.4	Internal thread to ISO 228 (BSP) and external thread for location	G 1/2	Steel	330	Steel	NBR	84798970	M33x1.5	Steel	1 pieces
0	1.4	Internal thread to ISO 228 (BSP) and external thread for location	G 1/2	LT-steel (low-temperature)	330	LT-steel (low-temperature)	ECO	84798970	M33x1.5	LT-steel (low-temperature)	1 pieces
4	2	Internal thread to ISO 228 (BSP)	G 3/4	Steel	100	Steel	NBR	84798970	None	Steel	1 pieces
0	2	Internal thread to ISO 228 (BSP)	G 3/4	LT-steel (low-temperature)	100	LT-steel (low-temperature)	ECO	40169997	None	LT-steel (low-temperature)	1 pieces
4	2	Internal thread to ISO 228 (BSP) and external thread for location	G 3/4	Steel	100	Steel	NBR	84798970	M45x1.5	Steel	1 pieces
6.75	2	Internal thread to ISO 228 (BSP)	G 3/4	Steel	210	Steel	NBR	84798970	None	Steel	1 pieces
7	2	Internal thread to ISO 228 (BSP) and external thread for location	G 3/4	Steel	210	Steel	NBR	84798970	M45x1.5	Steel	1 pieces
9.5	2	Internal thread to ISO 228 (BSP) and external thread for location	G 3/4	Steel	330	Steel	NBR	84798970	M45x1.5	Steel	1 pieces
8	2.8	Internal thread to ISO 228 (BSP)	G 3/4	Steel	210	Steel	NBR	84798970	None	Steel	1 pieces
12	2.8	Internal thread to ISO 228 (BSP) and external thread for location	G 3/4	Steel	330	Steel	NBR	84798970	M45x1.5	Steel	1 pieces
12	3.5	Internal thread to ISO 228 (BSP)	G 3/4	Steel	210	Steel	NBR	84798970	None	Steel	1 pieces
11	3.5	Internal thread to ISO 228 (BSP) and external thread for location	G 3/4	Steel	210	Steel	NBR	84798970	M45x1.5	Steel	1 pieces
0.5	16	Internal thread to ISO 228 (BSP)	G 1/2	Stainless steel 1.4571	180	Stainless steel 1.4571	NBR	84798970	None	Stainless steel 1.4571	1 pieces
3.75	0.75	Internal thread to ISO 228 (BSP) and external thread for location	G 1/2	Steel	250	Steel	NBR	84798970	M33x1.5	Steel	1 pieces
1	0.32	Internal thread to ISO 228 (BSP)	G 1/2	Steel	300	Steel	NBR	84798970	None	Steel	1 pieces
4	1	Internal thread to ISO 228 (BSP) and external thread for location	G 1/2	Steel	250	Steel	NBR	84798970	M33x1.5	Steel	1 pieces
0.7	0.075	Internal thread to ISO 228 (BSP)	G 1/2	Steel	250	Steel	NBR	84798970	None	Steel	1 pieces
3.3	0.6	Internal thread to ISO 228 (BSP) and external thread for location	G 1/2	Steel	330	Steel	NBR	84798970	M33x1.5	Steel	1 pieces
1.3	0.32	Internal thread to ISO 228 (BSP)	G 1/2	Stainless steel 1.4571	160	Stainless steel 1.4571	NBR	84798970	None	Stainless steel 1.4571	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

2,747.69 € ( 3,269.75 € )	5 working days
2,643.08 € ( 3,145.27 € )	5 working days
1,050.77 € ( 1,250.42 € )	5 working days
1,344.62 € ( 1,600.10 € )	5 working days
272.31 € ( 324.05 € )	5 working days
304.62 € ( 362.50 € )	5 working days
347.69 € ( 413.75 € )	5 working days
370.77 € ( 441.22 € )	5 working days
444.62 € ( 529.10 € )	5 working days
467.69 € ( 556.55 € )	5 working days
490.77 € ( 584.02 € )	5 working days
815.38 € ( 970.30 € )	5 working days
835.38 € ( 994.10 € )	5 working days
464.62 € ( 552.90 € )	5 working days
493.85 € ( 587.68 € )	5 working days
510.77 € ( 607.82 € )	5 working days
520.00 € ( 618.80 € )	5 working days
566.15 € ( 673.72 € )	5 working days
1,072.31 € ( 1,276.05 € )	5 working days
1,164.62 € ( 1,385.90 € )	5 working days
764.62 € ( 909.90 € )	5 working days
803.08 € ( 955.67 € )	5 working days
846.15 € ( 1,006.92 € )	5 working days
887.69 € ( 1,056.35 € )	5 working days
940.00 € ( 1,118.60 € )	5 working days
973.85 € ( 1,158.88 € )	5 working days
1,364.62 € ( 1,623.90 € )	5 working days
1,421.54 € ( 1,691.63 € )	5 working days
998.46 € ( 1,188.17 € )	5 working days
1,056.92 € ( 1,257.73 € )	5 working days
1,038.46 € ( 1,235.77 € )	5 working days
1,150.77 € ( 1,369.42 € )	5 working days
1,213.85 € ( 1,444.48 € )	5 working days
1,578.46 € ( 1,878.37 € )	5 working days
1,236.92 € ( 1,471.93 € )	5 working days
1,767.69 € ( 2,103.55 € )	5 working days
1,598.46 € ( 1,902.17 € )	5 working days
1,624.62 € ( 1,933.30 € )	5 working days
721.54 € ( 858.63 € )	5 working days
720.00 € ( 856.80 € )	5 working days
538.46 € ( 640.77 € )	5 working days
895.38 € ( 1,065.50 € )	5 working days
1,001.54 € ( 1,191.83 € )	5 working days
1,173.85 € ( 1,396.88 € )	5 working days
1,092.31 € ( 1,299.85 € )	5 working days

More Information

Basic information

Basic information

[Specifications]
・Accumulator type: Diaphragm-type accumulator
・Type: SBO

Standard diaphragm accumulators.

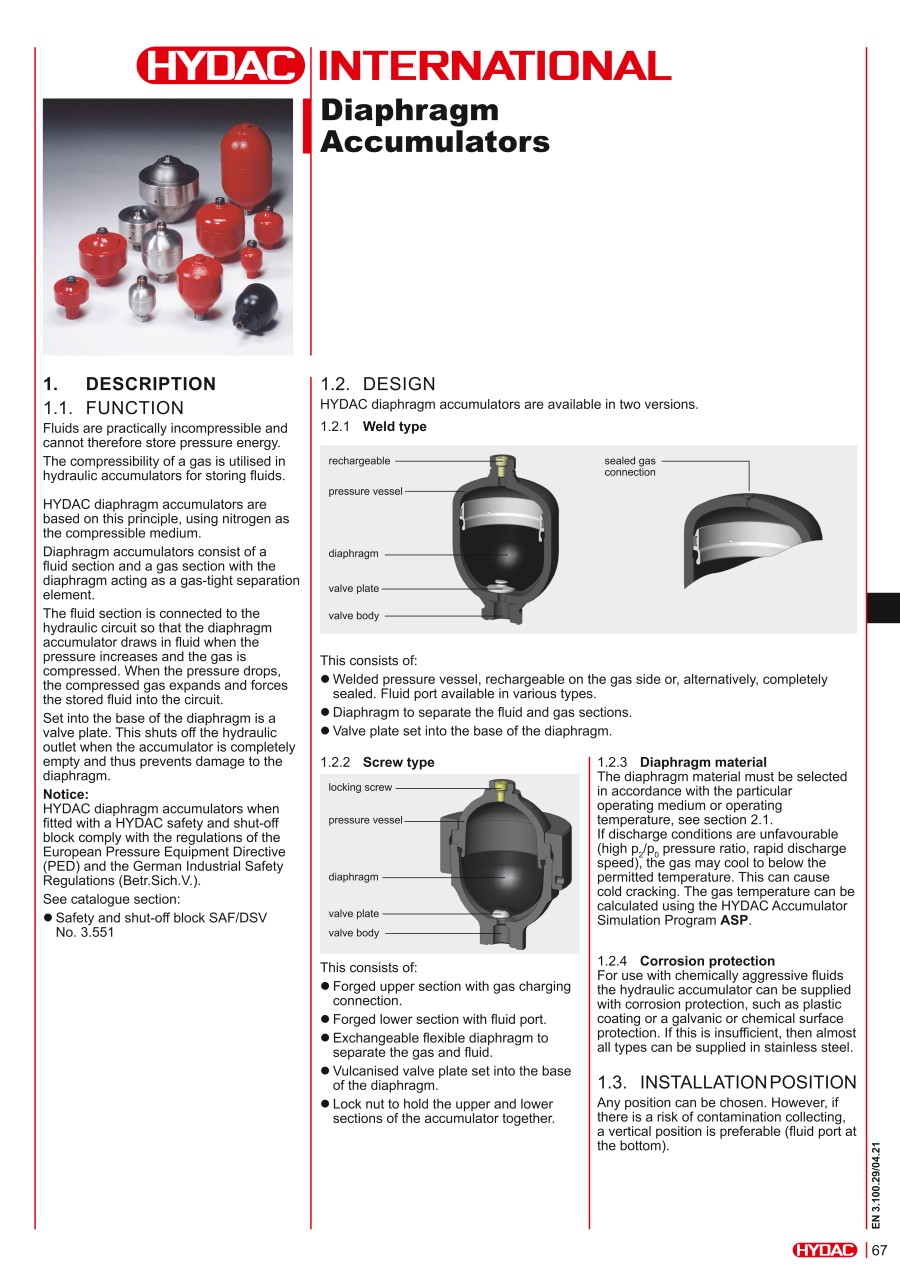

Catalog
