SKF single-row cylindrical roller bearings without inner ring, series RNU..

Configure

I.D. d(mm)
- 19.3
- 22.9
- 26.4
- 31.5
- 37.5
- 38.2
- 44.9
- 46.2
O.D. D(mm)
- 35
- 40
- 47
- 52
- 62
- 72
- 80
Width B(mm)
- 11
- 12
- 14
- 15
- 16
- 17
- 19
- 20
- 21
Customs tariff — weight(kg)
- 0.038
- 0.05
- 0.084
- 0.101
- 0.155
- 0.184
- 0.197
- 0.263
- 0.369
r (min.)(mm)
- 0.6
- 1
- 1.5
- 2
Fatigue limit load Pu(kN)
- 1.2
- 1.7
- 2.8
- 3.4
- 4.5
- 6.1
- 8.2
Cage designation
- Window-type cage made of polyamide P66, roller-guided
- Window-type cage made of sheet steel, roller-guided
Bore code
- 02
- 03
- 04
- 05
- 06
- 07
Shoulder dimension D1(mm)
- 27.7
- 32.35
- 38.44
- 43.3
- 48.7
- 51.95
- 57.4
- 65.8
Reference speed rpm
r1 (min.)(mm)
- 0.6
- 1
- 1.5
- 2
Envelope circle diameter F(mm)
- 19.3
- 22.9
- 26.4
- 31.5
- 37.5
- 38.2
- 44.9
- 46.2
Cage material
- Resin
- Sheet steel
Type
Est. shipping days
- All
- Within 5 working days

SKF single-row cylindrical roller bearings without inner ring, series RNU..

Catalog

Part number:

Still undefined. 9 possible part numbers found.

Part number list
Catalog

Part number list

Number of items

Part number

I.D. d

(mm)

O.D. D

(mm)

Width B

(mm)

Rotational Speed

(1/min)

Basic Load Rating, Dynamic Rating

(N)

Basic Load Rating, Static Rating

(N)

Customs tariff — weight

(kg)

r (min.)

(mm)

Fatigue limit load Pu

(kN)

Cage designation

Bore code

Shoulder dimension D1

(mm)

Reference speed rpm

r1 (min.)

(mm)

Envelope circle diameter F

(mm)

Cage material

Minimum order quantity

19.3	35	11	26000	12500	10200	0.038	0.6	1.2	Window-type cage made of polyamide P66, roller-guided	02	27.7	22,000	0.6	19.3	Resin	1 pieces
22.9	40	12	22000	17200	14300	0.05	0.6	1.7	Window-type cage made of polyamide P66, roller-guided	03	32.35	19,000	0.6	22.9	Resin	1 pieces
26.4	47	14	19000	28200	22000	0.084	1	2.8	Window-type cage made of polyamide P66, roller-guided	04	38.44	17,000	1	26.4	Resin	1 pieces
31.5	52	15	16000	32000	27000	0.101	1	3.4	Window-type cage made of polyamide P66, roller-guided	05	43.3	15,000	1	31.5	Resin	1 pieces
37.5	62	16	14000	44000	36500	0.155	1	4.5	Window-type cage made of polyamide P66, roller-guided	06	51.95	13,000	1	37.5	Resin	1 pieces
37.5	62	20	14000	55000	49000	0.197	1	6.1	Window-type cage made of polyamide P66, roller-guided	06	51.95	13,000	1	37.5	Resin	1 pieces
38.2	62	17	12000	26500	15300	0.184	2	-	Window-type cage made of sheet steel, roller-guided	05	48.7	9,500	2	38.2	Sheet steel	1 pieces
44.9	72	19	10000	34500	20400	0.263	2	-	Window-type cage made of sheet steel, roller-guided	06	57.4	8,500	2	44.9	Sheet steel	1 pieces
46.2	80	21	11000	75000	63000	0.369	1.5	8.2	Window-type cage made of polyamide P66, roller-guided	07	65.8	9,500	1.5	46.2	Resin	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

19.29 € ( 22.96 € )	5 working days
24.40 € ( 29.04 € )	5 working days
29.26 € ( 34.82 € )	5 working days
37.91 € ( 45.11 € )	5 working days
43.05 € ( 51.23 € )	5 working days
49.60 € ( 59.02 € )	5 working days
53.86 € ( 64.09 € )	5 working days
63.85 € ( 75.98 € )	5 working days
49.88 € ( 59.36 € )	5 working days

Catalog

Products homepage

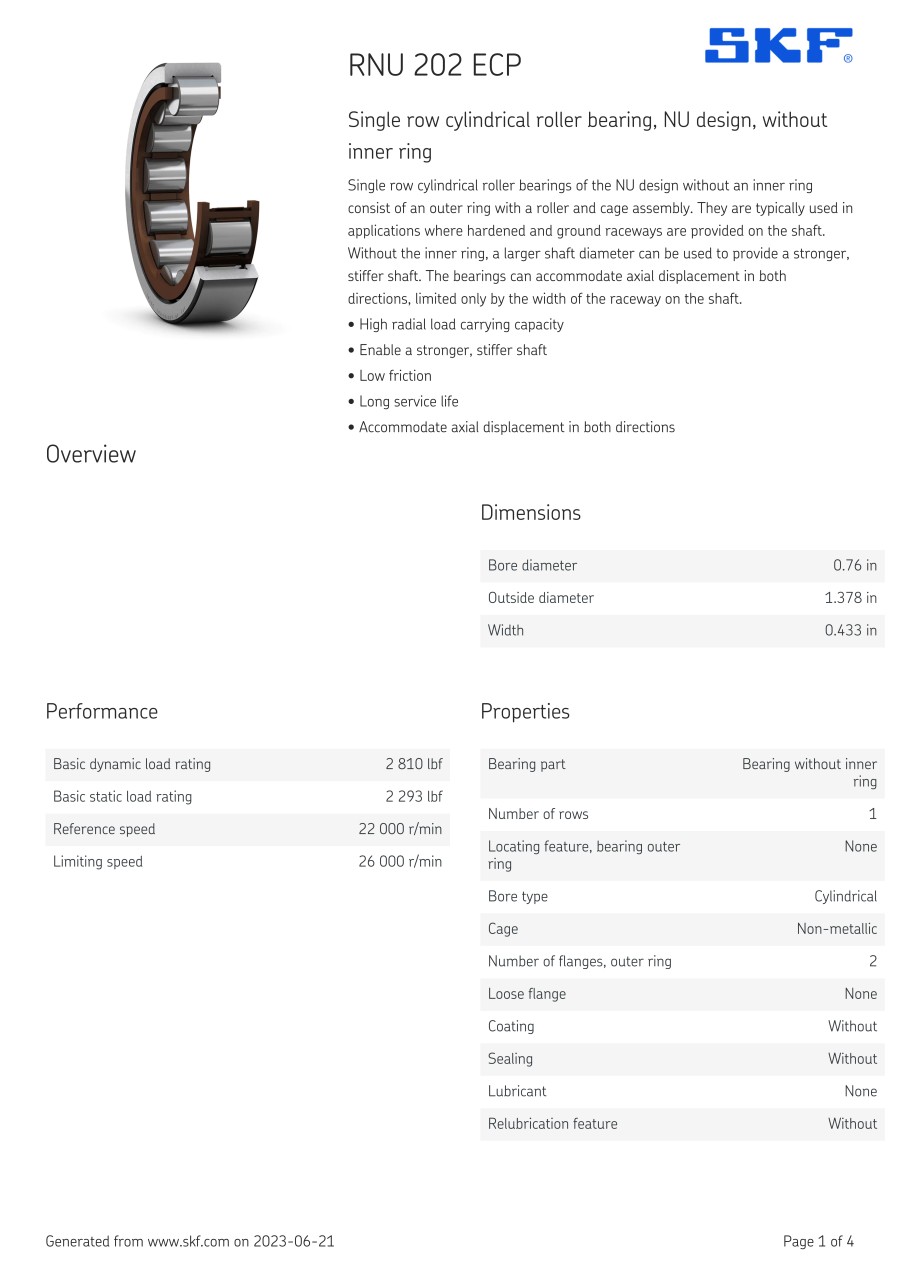

Catalog (2-page spread)
