Configure

S2(mm)
- 22
- 24
- 27
- 30
- 32
- 36
- 41
- 46
- 50
- 60
D4
- 19
- 22
- 27
- 32
- 40
- 50
- 55
PN bar
- 250
- 400
- 420
- 630
Customs tariff weight(kg)
- 0.054
- 0.06
- 0.063
- 0.069
- 0.07
- 0.071
- 0.073
- 0.095
- 0.096
- 0.097
- 0.098
- 0.1
- 0.101
- 0.102
- 0.103
- 0.104
- 0.119
- 0.134
- 0.136
- 0.137
- 0.139
- 0.14
- 0.147
- 0.155
- 0.156
- 0.163
- 0.164
- 0.171
- 0.18
- 0.181
- 0.186
- 0.187
- 0.191
- 0.192
- 0.203
- 0.225
- 0.234
- 0.258
- 0.259
- 0.263
- 0.265
- 0.278
- 0.279
- 0.28
- 0.36
- 0.383
- 0.428
- 0.436
- 0.481
- 0.482
- 0.591
- 0.594
- 0.612
- 0.657
- 0.665
- 0.913
- 0.929
External pipe diameter D1
- 12
- 14
- 15
- 16
- 18
- 20
- 22
- 25
- 28
- 30
- 35
- 38
- 42
L4
- 27
- 28
- 29
- 30
- 31
- 33
- 34
- 36
- 37
- 39
- 42
- 47
- 50
- 57
Scope of delivery
S1
- 19
- 22
- 24
- 27
- 32
- 41
- 46
- 50
- 55
L2
- 12
- 12.5
- 13
- 13.5
- 14
- 14.5
- 15
- 16.5
- 17
- 17.5
- 18
- 18.5
- 19
- 20.5
- 23
- 23.5
- 26
L3
- 12
- 14
- 16
- 18
- 20
- 22
L1
- 31
- 31.5
- 32.5
- 33.5
- 34
- 35
- 36
- 36.5
- 37
- 38
- 38.5
- 39
- 40
- 41
- 43
- 45
- 46
- 47
- 48
- 52
- 53
- 55
- 57
- 64
D3
- 5
- 6
- 8
- 9
- 10
- 11
- 12
- 14
- 15
- 16
- 18
- 19
- 20
- 23
- 25
- 30
- 32
- 36
Model series
- L
- S
T1
Customs tariff country of origin
- DE
- PL
Est. shipping days
- All
- Within 5 working days

Parker GE-R-ED Male Stud Connector

Catalog

Part number:

Still undefined. 65 possible part numbers found.

Part number list
More Information
Catalog

Part number list

Number of items

Part number

(mm)

PN bar

Customs tariff weight

(kg)

External pipe diameter D1

Scope of delivery

Model series

Customs tariff country of origin

Minimum order quantity

24	27	630	0.137	12	34	Complete, with nut and ring	27	17.5	14	39	8	S	G 1/2 A	PL	1 pieces
24	27	630	0.098	12	34	Without nut and ring, but including all other parts, such as seals	27	17.5	14	39	8	S	G 1/2 A	PL	1 pieces
24	19	630	0.095	12	33	Complete, with nut and ring	22	16.5	12	36	5	S	G 1/4 A	PL	1 pieces
24	22	630	0.1	12	33	Complete, with nut and ring	22	17	12	36.5	8	S	G 3/8 A	PL	1 pieces
24	22	630	0.063	12	33	Without nut and ring, but including all other parts, such as seals	22	17	12	36.5	8	S	G 3/8 A	PL	1 pieces
22	27	400	0.096	12	28	EO-2 complete fitting including nut and ring	27	13	14	34	10	L	G 1/2 A	PL	1 pieces
22	19	400	0.06	12	27	EO-2 complete fitting including nut and ring	19	12	12	31	6	L	G 1/4 A	PL	1 pieces
22	32	250	0.147	12	29	EO-2 complete fitting including nut and ring	32	14	16	37	10	L	G 3/4 A	DE	1 pieces
22	22	420	0.07	12	27	EO-2 complete fitting including nut and ring	22	12.5	12	31.5	9	L	G 3/8 A	PL	1 pieces
24	27	630	0.139	12	34	EO-2 complete fitting including nut and ring	27	17.5	14	39	8	S	G 1/2 A	PL	1 pieces
24	19	630	0.097	12	33	EO-2 complete fitting including nut and ring	22	16.5	12	36	5	S	G 1/4 A	PL	1 pieces
24	22	630	0.102	12	33	EO-2 complete fitting including nut and ring	22	17	12	36.5	8	S	G 3/8 A	PL	1 pieces
27	27	630	0.155	14	37	Complete, with nut and ring	27	19	14	41	10	S	G 1/2 A	DE	1 pieces
27	32	250	0.163	15	30	Complete, with nut and ring	32	15	16	38	12	L	G 3/4 A	DE	1 pieces
27	22	400	0.101	15	29	Complete, with nut and ring	24	13.5	12	32.5	9	L	G 3/8 A	DE	1 pieces
27	22	400	0.054	15	29	Without nut and ring, but including all other parts, such as seals	24	13.5	12	32.5	9	L	G 3/8 A	PL	1 pieces
27	27	400	0.119	15	29	Complete, with nut and ring	27	14	14	35	11	L	G 1/2 A	PL	1 pieces
27	27	400	0.073	15	29	Without nut and ring, but including all other parts, such as seals	27	14	14	35	11	L	G 1/2 A	PL	1 pieces
27	32	250	0.163	15	30	EO-2 complete fitting including nut and ring	32	15	16	38	12	L	G 3/4 A	DE	1 pieces
27	22	400	0.103	15	29	EO-2 complete fitting including nut and ring	24	13.5	12	32.5	9	L	G 3/8 A	PL	1 pieces
27	27	400	0.119	15	29	EO-2 complete fitting including nut and ring	27	14	14	35	11	L	G 1/2 A	PL	1 pieces
30	32	420	0.234	16	39	Complete, with nut and ring	32	20.5	16	45	12	S	G 3/4 A	DE	1 pieces
30	22	630	0.155	16	36	Complete, with nut and ring	27	18	12	38.5	8	S	G 3/8 A	PL	1 pieces
30	27	630	0.163	16	37	Complete, with nut and ring	27	18.5	14	41	12	S	G 1/2 A	PL	1 pieces
30	32	420	0.225	16	39	EO-2 complete fitting including nut and ring	32	20.5	16	45	12	S	G 3/4 A	DE	1 pieces
30	22	630	0.156	16	36	EO-2 complete fitting including nut and ring	27	18	12	38.5	8	S	G 3/8 A	PL	1 pieces
30	27	630	0.164	16	37	EO-2 complete fitting including nut and ring	27	18.5	14	41	12	S	G 1/2 A	PL	1 pieces
32	32	250	0.186	18	31	Complete, with nut and ring	32	14.5	16	38	15	L	G 3/4 A	DE	1 pieces
32	22	400	0.134	18	30	Complete, with nut and ring	27	14	12	33.5	9	L	G 3/8 A	DE	1 pieces
32	22	400	0.069	18	30	Without nut and ring, but including all other parts, such as seals	27	14	12	33.5	9	L	G 3/8 A	DE	1 pieces
32	27	400	0.139	18	31	Complete, with nut and ring	27	14.5	14	36	14	L	G 1/2 A	PL	1 pieces
32	27	400	0.071	18	31	Without nut and ring, but including all other parts, such as seals	27	14.5	14	36	14	L	G 1/2 A	PL	1 pieces
32	32	250	0.18	18	31	EO-2 complete fitting including nut and ring	32	14.5	16	38	15	L	G 3/4 A	DE	1 pieces
32	22	400	0.136	18	30	EO-2 complete fitting including nut and ring	27	14	12	33.5	9	L	G 3/8 A	DE	1 pieces
32	27	400	0.14	18	31	EO-2 complete fitting including nut and ring	27	14.5	14	36	14	L	G 1/2 A	PL	1 pieces
36	27	420	0.259	20	42	Complete, with nut and ring	32	20.5	14	45	12	S	G 1/2 A	DE	1 pieces
36	32	420	0.263	20	42	Complete, with nut and ring	32	20.5	16	47	16	S	G 3/4 A	PL	1 pieces
36	32	420	0.265	20	42	EO-2 complete fitting including nut and ring	32	20.5	16	47	16	S	G 3/4 A	PL	1 pieces
36	27	250	0.181	22	33	Complete, with nut and ring	32	16.5	14	38	14	L	G 1/2 A	DE	1 pieces
36	27	250	0.095	22	33	Without nut and ring, but including all other parts, such as seals	32	16.5	14	38	14	L	G 1/2 A	DE	1 pieces
36	40	250	0.278	22	34	Complete, with nut and ring	41	17.5	18	43	19	L	G 1 A	PL	1 pieces
36	40	250	0.191	22	34	Without nut and ring, but including all other parts, such as seals	41	17.5	18	43	19	L	G 1 A	PL	1 pieces
36	32	250	0.192	22	33	Complete, with nut and ring	32	16.5	16	40	18	L	G 3/4 A	PL	1 pieces
36	32	250	0.104	22	33	Without nut and ring, but including all other parts, such as seals	32	16.5	16	40	18	L	G 3/4 A	PL	1 pieces
36	27	250	0.187	22	33	EO-2 complete fitting including nut and ring	32	16.5	14	38	14	L	G 1/2 A	DE	1 pieces
36	40	250	0.28	22	34	EO-2 complete fitting including nut and ring	41	17.5	18	43	19	L	G 1 A	PL	1 pieces
36	32	250	0.203	22	33	EO-2 complete fitting including nut and ring	32	16.5	16	40	18	L	G 3/4 A	PL	1 pieces
46	40	420	0.482	25	47	Complete, with nut and ring	41	23	18	53	20	S	G 1 A	PL	1 pieces
46	40	420	0.481	25	47	EO-2 complete fitting including nut and ring	41	23	18	53	20	S	G 1 A	PL	1 pieces
41	32	250	0.258	28	34	Complete, with nut and ring	41	17.5	16	41	18	L	G 3/4 A	DE	1 pieces
41	40	250	0.278	28	34	Complete, with nut and ring	41	17.5	18	43	23	L	G 1 A	PL	1 pieces
41	40	250	0.171	28	34	Without nut and ring, but including all other parts, such as seals	41	17.5	18	43	23	L	G 1 A	PL	1 pieces
41	40	250	0.28	28	34	EO-2 complete fitting including nut and ring	41	17.5	18	43	23	L	G 1 A	PL	1 pieces
50	40	420	0.594	30	50	Complete, with nut and ring	46	23.5	18	55	20	S	G 1 A	DE	1 pieces
50	50	420	0.657	30	50	Complete, with nut and ring	50	23.5	20	57	25	S	G 1 1/4 A	DE	1 pieces
50	50	420	0.665	30	50	EO-2 complete fitting including nut and ring	50	23.5	20	57	25	S	G 1 1/4 A	DE	1 pieces
50	40	250	0.383	35	39	Complete, with nut and ring	46	17.5	18	46	23	L	G 1 A	DE	1 pieces
50	50	250	0.428	35	39	Complete, with nut and ring	50	17.5	20	48	30	L	G 1 1/4 A	DE	1 pieces
50	50	250	0.279	35	39	Without nut and ring, but including all other parts, such as seals	50	17.5	20	48	30	L	G 1 1/4 A	PL	1 pieces
50	50	250	0.436	35	39	EO-2 complete fitting including nut and ring	50	17.5	20	48	30	L	G 1 1/4 A	DE	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

15.55 € ( 18.50 € )	5 working days
11.02 € ( 13.11 € )	5 working days
20.69 € ( 24.62 € )	5 working days
12.80 € ( 15.23 € )	5 working days
8.23 € ( 9.79 € )	5 working days
21.20 € ( 25.23 € )	5 working days
17.45 € ( 20.77 € )	5 working days
40.03 € ( 47.64 € )	5 working days
16.63 € ( 19.79 € )	5 working days
22.09 € ( 26.29 € )	5 working days
27.23 € ( 32.40 € )	5 working days
19.52 € ( 23.23 € )	5 working days
21.49 € ( 25.57 € )	5 working days
40.85 € ( 48.61 € )	5 working days
17.66 € ( 21.02 € )	5 working days
12.22 € ( 14.54 € )	5 working days
15.15 € ( 18.03 € )	5 working days
10.03 € ( 11.94 € )	5 working days
44.15 € ( 52.54 € )	5 working days
25.29 € ( 30.10 € )	5 working days
22.82 € ( 27.16 € )	5 working days
31.17 € ( 37.09 € )	5 working days
42.57 € ( 50.66 € )	5 working days
21.69 € ( 25.81 € )	5 working days
42.62 € ( 50.72 € )	5 working days
49.05 € ( 58.37 € )	5 working days
30.78 € ( 36.63 € )	5 working days
33.00 € ( 39.27 € )	5 working days
33.32 € ( 39.65 € )	5 working days
24.40 € ( 29.04 € )	5 working days
18.91 € ( 22.50 € )	5 working days
10.40 € ( 12.38 € )	5 working days
44.11 € ( 52.49 € )	5 working days
47.62 € ( 56.67 € )	5 working days
29.94 € ( 35.63 € )	5 working days
49.72 € ( 59.17 € )	5 working days
30.42 € ( 36.20 € )	5 working days
42.91 € ( 51.06 € )	5 working days
44.20 € ( 52.60 € )	5 working days
31.80 € ( 37.84 € )	5 working days
78.05 € ( 92.88 € )	5 working days
64.98 € ( 77.33 € )	5 working days
26.78 € ( 31.87 € )	5 working days
15.31 € ( 18.22 € )	5 working days
58.22 € ( 69.28 € )	5 working days
85.08 € ( 101.25 € )	5 working days
40.57 € ( 48.28 € )	5 working days
52.83 € ( 62.87 € )	5 working days
69.83 € ( 83.10 € )	5 working days
88.34 € ( 105.12 € )	5 working days
48.00 € ( 57.12 € )	5 working days
29.55 € ( 35.16 € )	5 working days
63.66 € ( 75.76 € )	5 working days
96.52 € ( 114.86 € )	5 working days
80.49 € ( 95.78 € )	5 working days
106.91 € ( 127.22 € )	5 working days
109.18 € ( 129.92 € )	5 working days
69.29 € ( 82.46 € )	5 working days
42.71 € ( 50.82 € )	5 working days
98.71 € ( 117.46 € )	5 working days

Basic information

Basic information

[Specifications]
・Surface: Cr(VI)-free
・Engineering material: Steel
・Model series: L, S

Catalog

Products homepage

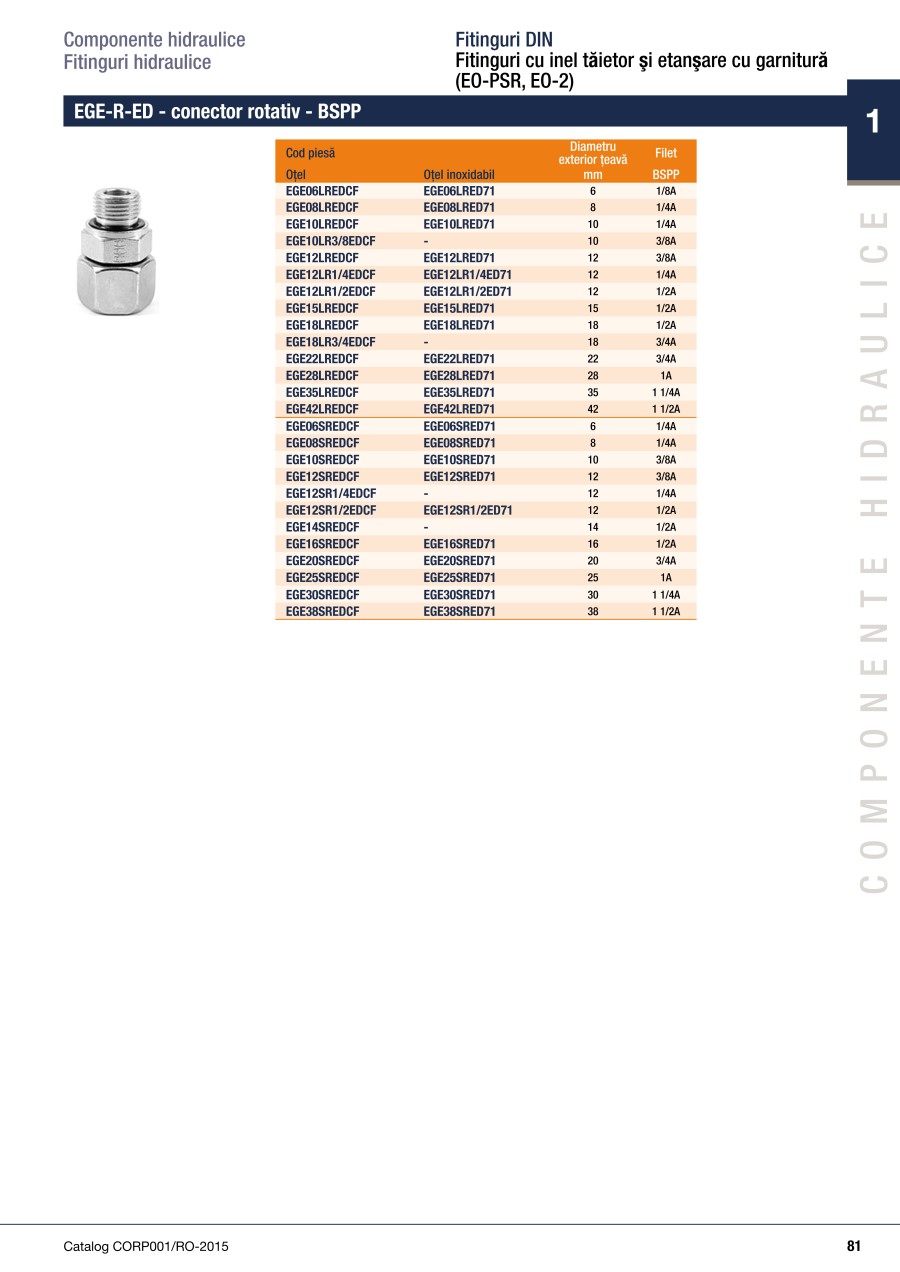

Catalog (2-page spread)
