    INA

    Linear guideway carriages / high linear guideway carriages / stainless steel / precision class selectable / six-row / KWSE-H-RROC

    Linear guideway carriages / high linear guideway carriages / stainless steel / precision class selectable / six-row / KWSE-H-RROC

    Part number:

    Still undefined. 6 possible part numbers found.
    Quantity:

    Part number list

    Number of items
  • 1
    • Part number
    KWSE20-H-RROC-V1-G3
    KWSE20-H-RROC-V2-G3
    KWSE25-H-RROC-V1-G3
    KWSE25-H-RROC-V2-G3
    KWSE30-H-RROC-V1-G3
    KWSE30-H-RROC-V2-G3

    Rail Width

    (mm)

    Mounting Height H

    (mm)

    Basic Load Rating: Dynamic Load

    (N)

    Basic Load Rating: Static Load

    (N)

    Length L

    (mm)

    Accuracy class

    Customs tariff weight

    		Minimum order quantity
    44
    30
    22000
    52000
    71.4
    V1
    0.294
    1 pieces
    44
    30
    22000
    52000
    71.4
    V2
    0.294
    1 pieces
    48
    40
    28000
    67000
    81.8
    V1
    0.484
    1 pieces
    48
    40
    28000
    67000
    81.8
    V2
    0.484
    1 pieces
    60
    45
    40000
    80000
    91.6
    V1
    0.708
    1 pieces
    60
    45
    40000
    80000
    91.6
    V2
    0.708
    1 pieces
    Unit price (excluding VAT)(Unit price including VAT)
    Standard shipping days
    222.62 €
    ( 264.92 € )
    4 working days
    222.62 €
    ( 264.92 € )
    4 working days
    246.42 €
    ( 293.24 € )
    4 working days
    246.42 €
    ( 293.24 € )
    4 working days
    281.18 €
    ( 334.60 € )
    4 working days
    281.18 €
    ( 334.60 € )
    4 working days
  • 1

    • More Information

    Basic information

    [Specifications]
    ・Rail Width(mm): 44, 48, 60
    ・Mounting Height H(mm): 30, 40, 45
    ・Length L(mm): 71.4, 81.8, 91.6
    ・Preload class: G3

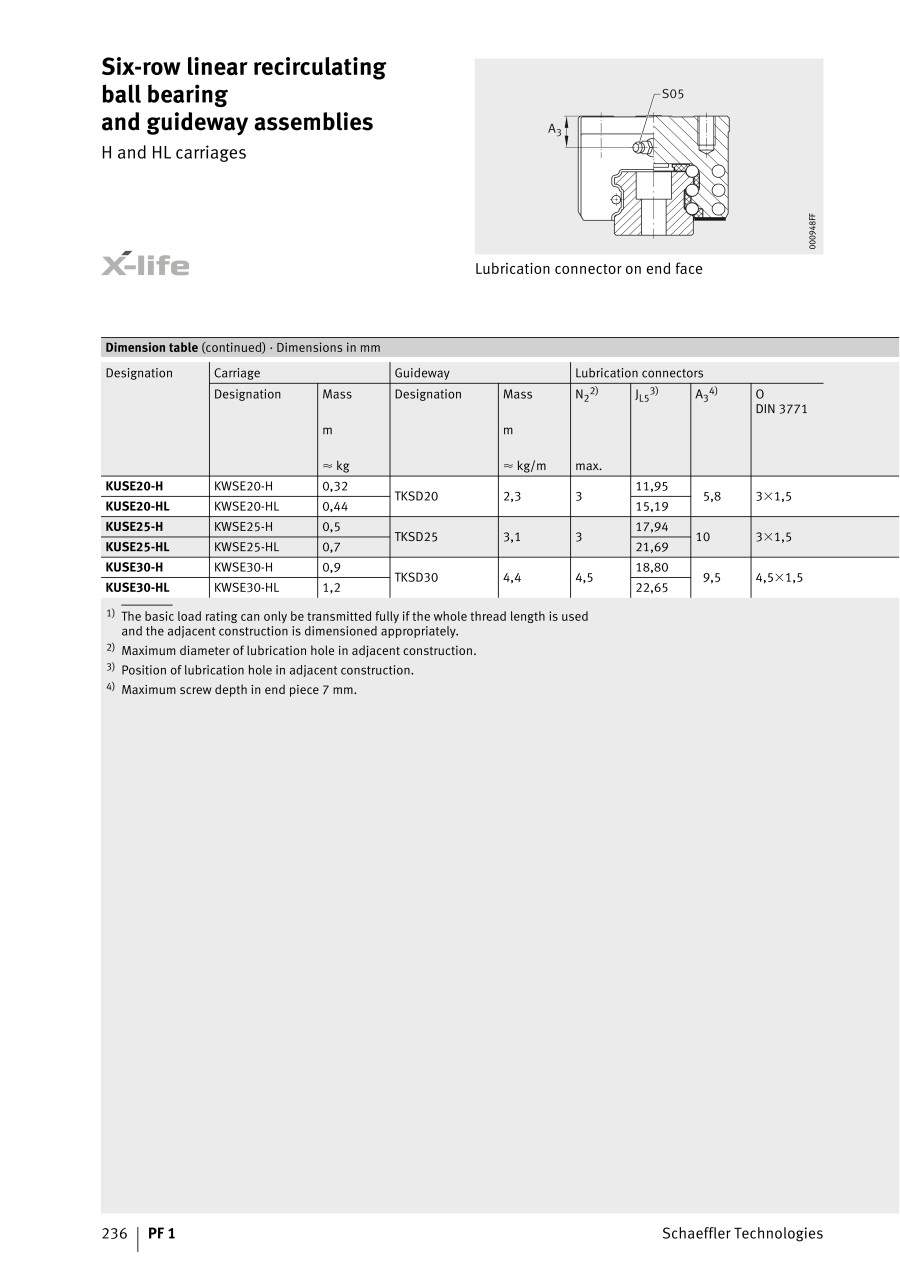

    [Features]
    ・The basic load rating can only be transmitted fully if the whole thread length is used and the adjacent construction is dimensioned appropriately
    ・Maximum diameter of lubrication hole in adjacent construction
    ・Position of lubrication hole in adjacent construction
    ・Maximum screw depth in end piece 7 mm
