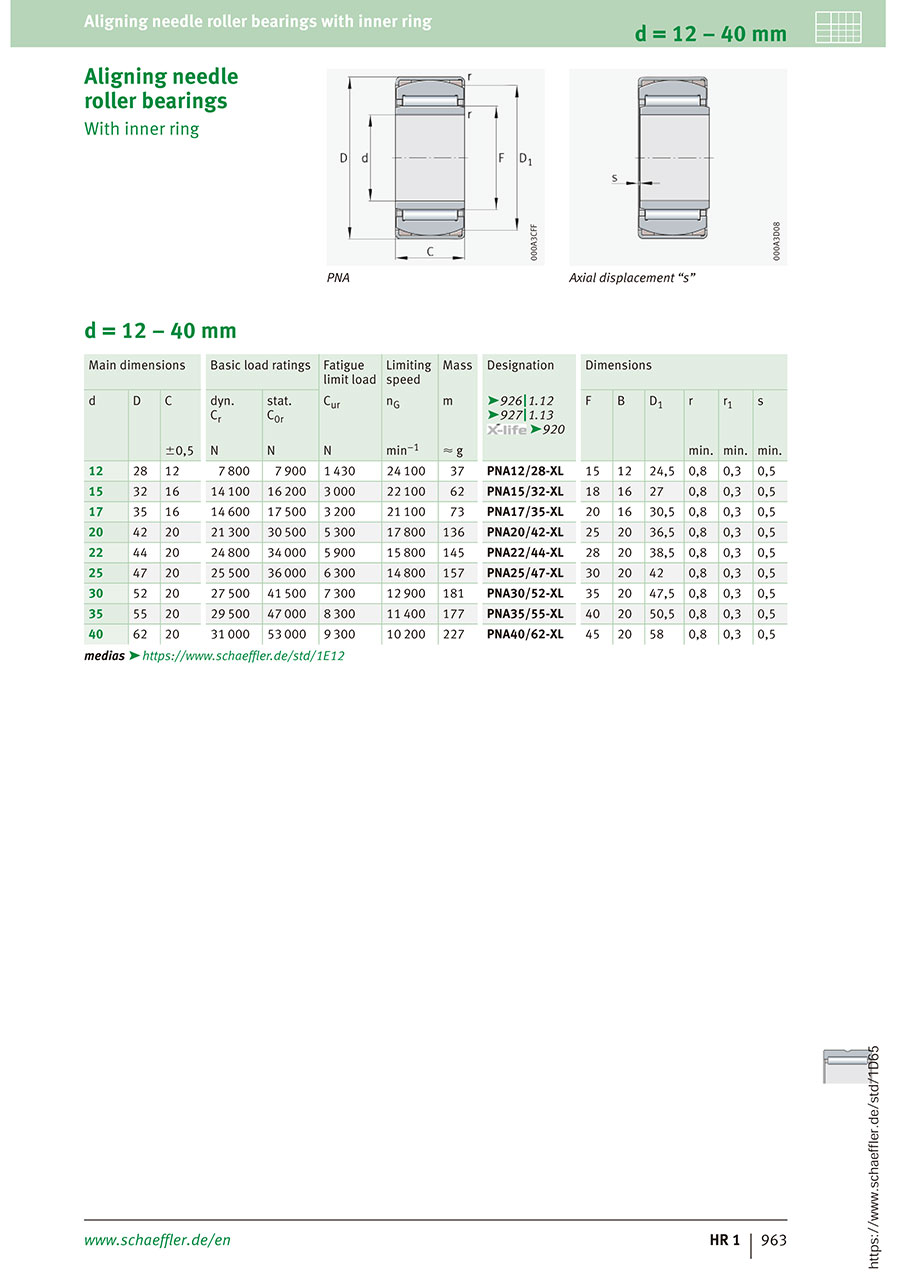

Aligning needle roller bearings PNA, with inner ring
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
Part Number
|
|---|
| PNA12/28-XL |
| PNA22/44-XL |
| PNA35/55-XL |
| PNA40/62-XL |
| Part Number | Related to |
Standard Unit Price
| Minimum order quantity | Volume Discount | Internal Diameter (mm) | Outer Diameter (mm) | Width (mm) | Allowable Rotational Speed (1/min) | Basic Load Rating, Dynamic Rating (N) | Basic Load Rating, Static Rating (N) | Customs tariff — weight | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
28.83 € | 1 | Available | 3 Days | 12 | 28 | 12 | 24100 | 7800 | 7900 | 0.037 | ||
90.05 € | 1 | Available | 4 Days | 22 | 44 | 20 | 15800 | 24800 | 34000 | 0.145 | ||
69.17 € | 1 | Available | 4 Days | 35 | 55 | 20 | 11400 | 29500 | 47000 | 0.177 | ||
60.08 € | 1 | Available | 3 Days | 40 | 62 | 20 | - | - | - | 0.227 |
Loading...
Basic information
| RoHS Certificate | Available | REACH Certificate | Available | Customs tariff — weight unit | kg |
|---|
Configure
Basic Attributes
-
Internal Diameter(mm)
-
Outer Diameter(mm)
-
Width(mm)
-
Customs tariff — weight
-
Type
-
Filter by CAD data type
- 3D
Filter by standard shipping days
-
- All
- 3 Days or Less
- 4 Days or Less
Optional Attributes
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
