Configure
- d(mm)
- 13
- 15
- 16
- Raceway diameter idler pulley D1(mm)
- 90
- 129
- 186
- Outside diameter idler pulley D2(mm)
- 61.6
- 73.7
- 130.8
- Upper tolerance(mm)
- 0.08
- 0.26
- Lower tolerance(mm)
- -0.05
- 0.13
- Width B(mm)
- 14.4
- 18.3
- Width idler pulley raceway BL(mm)
- 12.4
- 22.1
- Width idler pulley C1(mm)
- 20
- 32
- Basic dynamic load rating, radial Cr(N)
- 7600
- 9800
- 10100
- Basic static load rating, radial C0r(N)
- 3700
- 4750
- Fatigue load limit, radial Cur(N)
- 193
- 248
- Vee belt size
- Weight/Unit(kg)
- 0.22
- 0.54
- 0.56
- 0.99
- 1.13
- CAD
- 3D
- Est. shipping days
- All
- Within 4 working days
- Within 6 working days

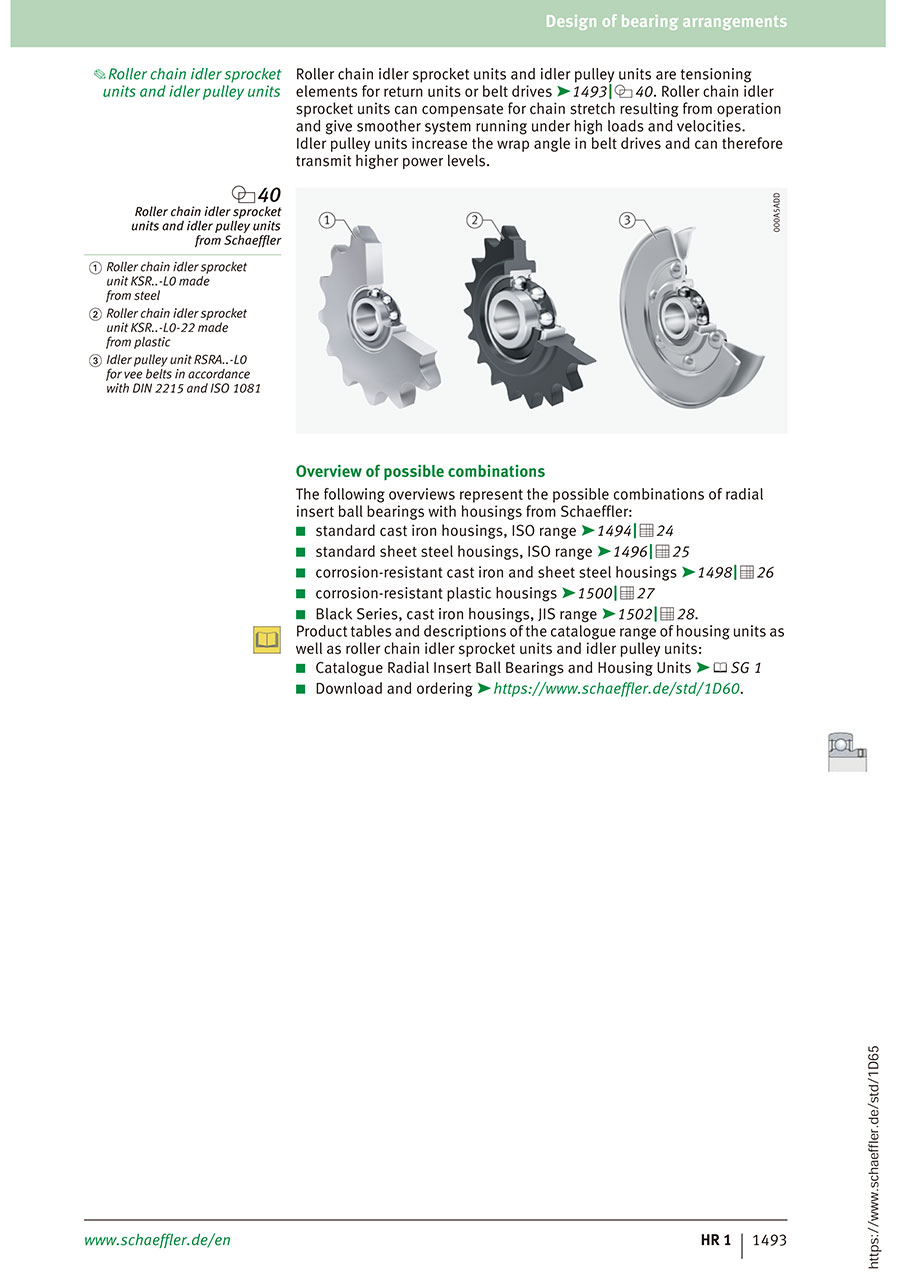

Belt Tension Pulleys RSRA..-L0, for V-Belts to DIN 2215 / ISO / R 434, ISO / R 608 and DIN 7753 / ISO / R 460,000
Part number:
possible part numbers found.Part number list
Number of items
Unit price (excluding VAT)(Unit price including VAT) | Standard shipping days |
|---|
29.13 € ( 34.66 € ) | 4 working days |
34.77 € ( 41.38 € ) | 4 working days |
23.30 € ( 27.73 € ) | 4 working days |
41.50 € ( 49.38 € ) | 6 working days |
34.77 € ( 41.38 € ) | 4 working days |
