Aaxial-needle Roller, One-sided Acting
・Cage material: plastic, steel
・Series: AXK

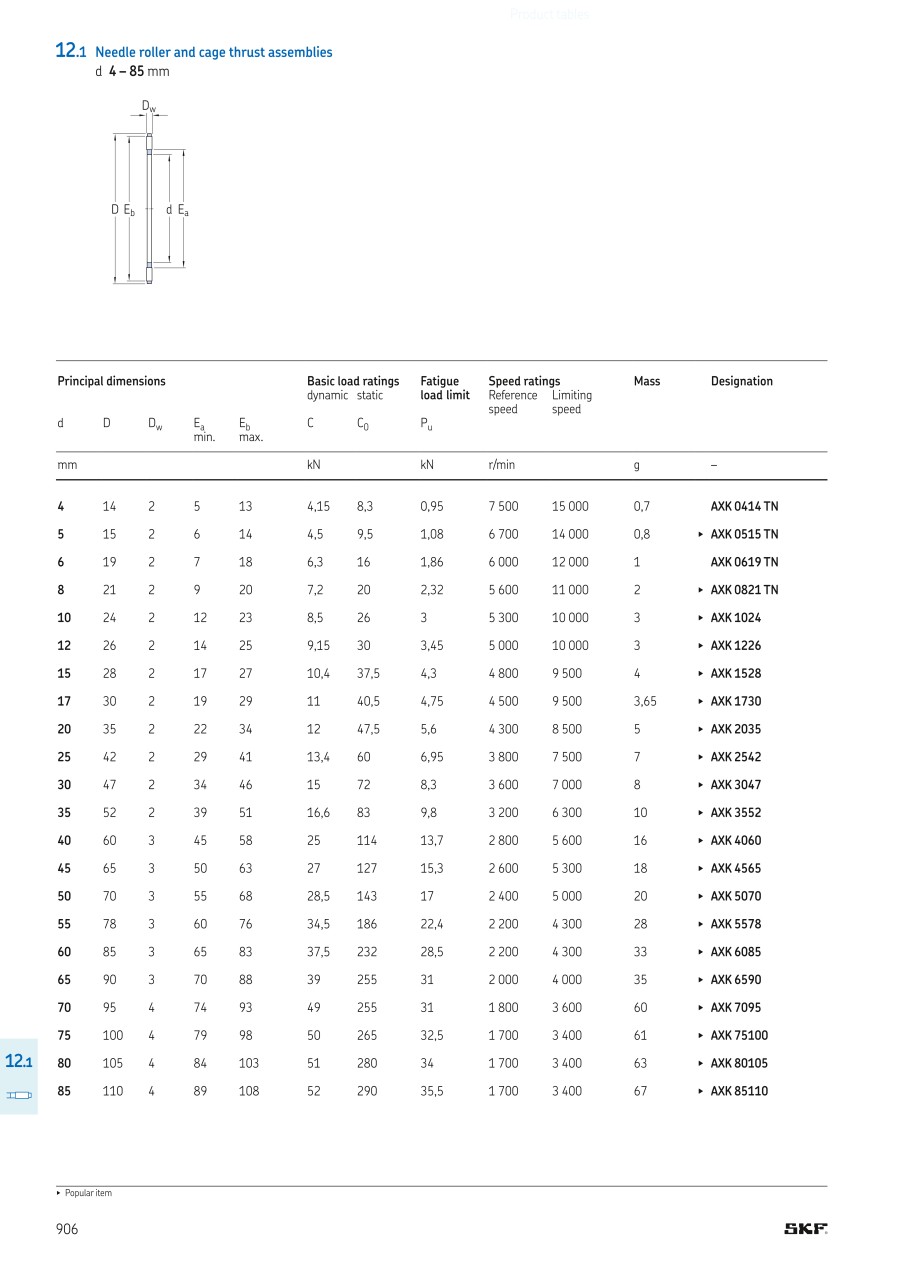

SKF needle roller thrust bearings are fitted with a form-stable cage to reliably retain and guide a large number of needle rollers. Needle roller thrust bearings provide a high degree of stiffness within a minimum axial space. In applications where the faces of adjacent machine components can serve as raceways, needle roller thrust bearings take up no more space than a conventional thrust washer.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | I.D. d (mm) | O.D. D (mm) | Width B (mm) | Weight (g) | cage material | GTIN/EAN | Customs tariff number | |
|---|---|---|---|---|---|---|---|---|---|---|---|
4.12 € | 1 | 17 Days | 5 | 15 | 2 | 1.0 | plastic | 7316570776201 | 84825000 | ||
3.03 € | 1 | 17 Days | 6 | 19 | 2 | 1.0 | plastic | 7316570482256 | 84825000 | ||
3.20 € | 1 | 17 Days | 8 | 21 | 2 | 2.0 | plastic | 7316570058529 | 84825000 | ||
40.90 € | 1 | 12 Days | 100 | 135 | 4 | 104.0 | steel | 7316570888829 | 84825000 | ||
2.93 € | 1 | 17 Days | 10 | 24 | 2 | 3.0 | steel | 7316571033990 | 84825000 | ||
56.97 € | 1 | 17 Days | 110 | 145 | 4 | 110.0 | steel | 7316577711274 | 84824000 | ||
68.60 € | 1 | 17 Days | 120 | 155 | 4 | 177.0 | steel | 7316577711328 | 84824000 | ||
2.98 € | 1 | 17 Days | 12 | 26 | 2 | 3.0 | steel | 7316571018980 | 84825000 | ||
93.22 € | 1 | 17 Days | 130 | 170 | 5 | 192.0 | steel | 7316577710383 | 84825000 | ||
3.02 € | 1 | 12 Days | 15 | 28 | 2 | 4.0 | steel | 7316570820003 | 84825000 | ||
161.25 € | 1 | 17 Days | 160 | 200 | 5 | 246.0 | steel | 7316577711960 | 84825000 | ||
3.30 € | 1 | 17 Days | 20 | 35 | 2 | 6.0 | steel | 7316577013811 | 84825000 | ||
3.52 € | 1 | 17 Days | 25 | 42 | 2 | 7.0 | steel | 7316570364804 | 84825000 | ||
3.88 € | 1 | 17 Days | 30 | 47 | 2 | 8.0 | steel | 7316570483949 | 84825000 | ||
4.55 € | 1 | 17 Days | 35 | 52 | 2 | 9.0 | steel | 7316571193014 | 84825000 | ||
5.03 € | 1 | 17 Days | 40 | 60 | 3 | 16.0 | steel | 7316577296887 | 84825000 | ||
5.85 € | 1 | 17 Days | 45 | 65 | 3 | 18.0 | steel | 7316577313966 | 84825000 | ||
6.77 € | 1 | 17 Days | 50 | 70 | 3 | 20.0 | steel | 7316577710031 | 84825000 | ||
10.13 € | 1 | 12 Days | 60 | 85 | 3 | 36.0 | steel | 7316570563856 | 84825000 | ||
12.05 € | 1 | 17 Days | 65 | 90 | 3 | 36.0 | steel | 7316570903454 | 84825000 | ||
18.37 € | 1 | 17 Days | 70 | 95 | 4 | 49.0 | steel | 7316570703047 | 84825000 | ||
22.33 € | 1 | 17 Days | 75 | 100 | 4 | 51.0 | steel | 7316577713568 | 84825000 | ||
26.72 € | 1 | 17 Days | 80 | 105 | 4 | 57.0 | steel | 7316577711342 | 84825000 | ||
32.42 € | 1 | 17 Days | 90 | 120 | 4 | 77.0 | steel | 7316577713575 | 84825000 |
Loading...
Basic information
| series | AXK |
|---|
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
