Combined Needle Bearing
・Cage material: plastic, steel plate
・Series: NKX, NX

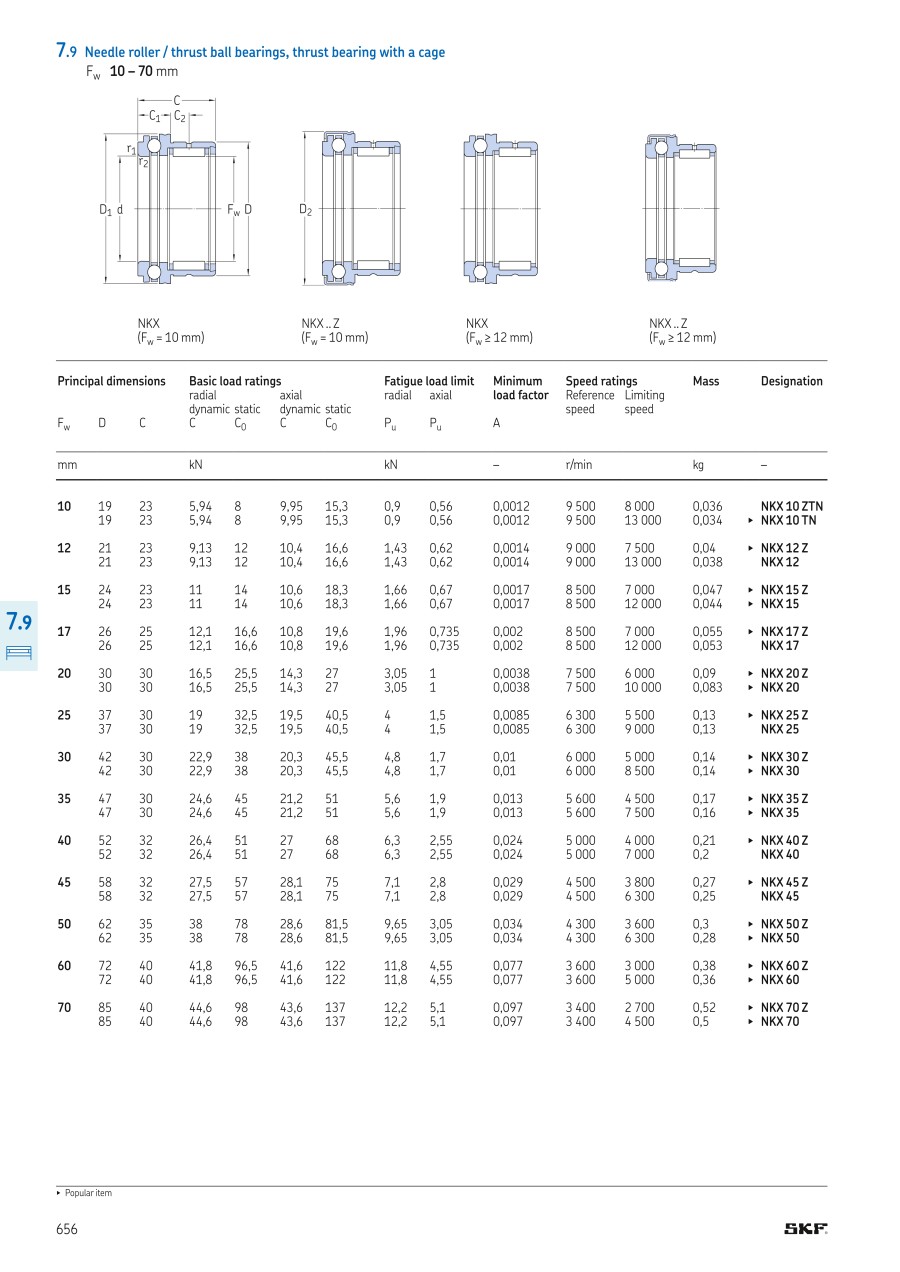

SKF combined needle roller bearings consist of a radial needle roller bearing combined with a thrust bearing. They can accommodate both radial and axial loads. They are particularly suitable for applications where other types of locating bearing arrangements occupy too much space, or where the axial loads are too heavy, the speeds are too high, or the lubricant is inadequate for arrangements with simple thrust washers.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | I.D. d (mm) | O.D. D (mm) | Width B (mm) | Weight (g) | cage material | sealing | GTIN/EAN | series | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
46.83 € | 1 | 17 Days | 10 | 19 | 23 | 34.0 | plastic | without seal | 7316577104625 | NKX | ||
36.10 € | 1 | 17 Days | 10 | 19 | 23 | 36.0 | plastic | Z | 7316577104632 | NKX | ||
37.11 € | 1 | 17 Days | 12 | 26 | 23 | 38.0 | steel plate | without seal | 7316571130804 | NKX | ||
48.48 € | 1 | 17 Days | 12 | 21 | 23 | 40.0 | steel plate | Z | 7316577661203 | NKX | ||
49.88 € | 1 | 17 Days | 15 | 28 | 23 | 44.0 | steel plate | without seal | 7316577014689 | NKX | ||
49.63 € | 1 | 17 Days | 15 | 24 | 23 | 47.0 | steel plate | Z | 7316577014696 | NKX | ||
52.37 € | 1 | 17 Days | 17 | 30 | 25 | 53.0 | steel plate | without seal | 7316577014702 | NKX | ||
52.55 € | 1 | 17 Days | 17 | 26 | 25 | 55.0 | steel plate | Z | 7316577105028 | NKX | ||
60.53 € | 1 | 17 Days | 20 | 35 | 30 | 83.0 | steel plate | without seal | 7316577105189 | NKX | ||
61.05 € | 1 | 17 Days | 20 | 36 | 30 | 86.0 | steel plate | Z | 7316577014719 | NKX | ||
70.48 € | 1 | 17 Days | 25 | 42 | 30 | 125.0 | steel plate | without seal | 7316577014726 | NKX | ||
69.33 € | 1 | 17 Days | 25 | 37 | 30 | 132.0 | steel plate | Z | 7316577014733 | NKX | ||
68.13 € | 1 | 17 Days | 30 | 47 | 30 | 141.0 | steel plate | without seal | 7316577014740 | NKX | ||
88.75 € | 1 | 17 Days | 30 | 42 | 30 | 148.0 | steel plate | Z | 7316577105455 | NKX | ||
105.23 € | 1 | 17 Days | 35 | 52 | 30 | 163.0 | steel plate | without seal | 7316577105745 | NKX | ||
103.33 € | 1 | 17 Days | 35 | 47 | 30 | 168.0 | steel plate | Z | 7316577014757 | NKX | ||
115.73 € | 1 | 17 Days | 40 | 60 | 32 | 206.0 | steel plate | without seal | 7316577105905 | NKX | ||
112.98 € | 1 | 17 Days | 40 | 52 | 32 | 221.0 | steel plate | Z | 7316577105912 | NKX | ||
104.03 € | 1 | 17 Days | 45 | 65 | 32 | 252.0 | steel plate | without seal | 7316577106032 | NKX | ||
141.38 € | 1 | 17 Days | 45 | 58 | 32 | 265.0 | steel plate | Z | 7316577014764 | NKX | ||
147.65 € | 1 | 17 Days | 50 | 70 | 35 | 280.0 | steel plate | without seal | 7316577027894 | NKX | ||
141.95 € | 1 | 17 Days | 50 | 70 | 35 | 300.0 | steel plate | Z | 7316577014771 | NKX | ||
207.35 € | 1 | 17 Days | 60 | 85 | 40 | 440.0 | steel plate | without seal | 7316577014788 | NKX | ||
200.85 € | 1 | 17 Days | 60 | 85 | 40 | 470.0 | steel plate | Z | 7316570240337 | NKX | ||
257.08 € | 1 | 17 Days | 70 | 85 | 40 | 555.0 | steel plate | without seal | 7316577106704 | NKX | ||
269.13 € | 1 | 17 Days | 70 | 95 | 40 | 586.0 | steel plate | Z | 7316577713582 | NKX | ||
54.25 € | 1 | 17 Days | 15 | 24 | 23 | 42.0 | steel plate | without seal | 7316570451153 | NKXR | ||
79.07 € | 1 | 17 Days | 17 | 26 | 25 | 53.0 | steel plate | Z | 7316570576672 | NKXR | ||
71.79 € | 1 | 17 Days | 20 | 30 | 30 | 90.0 | steel plate | without seal | 7316570642117 | NKXR | ||
90.68 € | 1 | 17 Days | 20 | 30 | 30 | 84.0 | steel plate | Z | 7316570201284 | NKXR | ||
78.39 € | 1 | 17 Days | 25 | 37 | 30 | 120.0 | steel plate | without seal | 7316577713131 | NKXR | ||
107.33 € | 1 | 17 Days | 25 | 37 | 30 | 128.0 | steel plate | Z | 7316570293562 | NKXR | ||
120.43 € | 1 | 17 Days | 30 | 42 | 30 | 143.0 | steel plate | Z | 7316570539653 | NKXR | ||
134.22 € | 1 | 17 Days | 35 | 47 | 30 | 165.0 | steel plate | Z | 7316577300164 | NKXR | ||
122.74 € | 1 | 17 Days | 40 | 52 | 32 | 215.0 | steel plate | without seal | 7316570757910 | NKXR | ||
168.08 € | 1 | 17 Days | 40 | 52 | 32 | 215.0 | steel plate | Z | 7316570609561 | NKXR | ||
146.42 € | 1 | 17 Days | 45 | 58 | 32 | 360.0 | steel plate | without seal | 7316570711745 | NKXR | ||
177.20 € | 1 | 17 Days | 45 | 58 | 32 | 260.0 | steel plate | Z | 7316570484847 | NKXR | ||
212.57 € | 1 | 17 Days | 50 | 62 | 35 | 270.0 | steel plate | without seal | 7316577713124 | NKXR | ||
217.82 € | 1 | 17 Days | 50 | 62 | 35 | 286.0 | steel plate | Z | 7316570777970 | NKXR | ||
35.45 € | 1 | 17 Days | 7 | 14 | 18 | 12.0 | plastic | Z | 7316570500011 | NX | ||
39.90 € | 1 | 17 Days | 12 | 21 | 18 | 24.0 | steel plate | Z | 7316570660050 | NX | ||
38.27 € | 1 | 17 Days | 15 | 24 | 28 | 48.0 | steel plate | Z | 7316570508178 | NX | ||
45.51 € | 1 | 17 Days | 17 | 26 | 28 | 53.0 | steel plate | Z | 7316570105407 | NX | ||
44.80 € | 1 | 17 Days | 20 | 30 | 28 | 68.0 | steel plate | without seal | 7316577723017 | NX | ||
50.60 € | 1 | 17 Days | 20 | 30 | 28 | 68.0 | steel plate | Z | 7316571137339 | NX | ||
66.38 € | 1 | 17 Days | 30 | 42 | 30 | 130.0 | steel plate | without seal | 7316570682489 | NX | ||
64.60 € | 1 | 17 Days | 30 | 42 | 30 | 121.0 | steel plate | Z | 7316570526042 | NX |
Loading...
Basic information
| Customs tariff number | 84828000 |
|---|
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
