Configure

Internal diameter(mm)
- 45
- 50
- 55
- 70
- 80
- 85
- 90
- 95
- 105
- 115
- 125
- 135
- 145
Outer diameter(mm)
- 50
- 55
- 60
- 75
- 85
- 90
- 95
- 100
- 110
- 120
- 130
- 140
- 150
Weight(g)
- 160.0
- 190.0
- 202.0
- 245.0
- 300.0
- 430.0
- 460.0
- 462.0
- 523.0
- 580.0
- 600.0
- 661.0
- 674.0
- 740.0
- 750.0
- 770.0
- 870.0
- 910.0
- 960.0
- 1000.0
- 1010.0
- 1062.0
- 1221.0
- 1310.0
- 1684.0
- 1860.0
- 2154.0
- 2534.0
internal diameter in mm
- 45
- 50
- 55
- 70
- 80
- 85
- 90
- 95
- 105
- 115
- 125
- 135
- 145
external diameter in mm
- 50
- 55
- 60
- 75
- 85
- 90
- 95
- 100
- 110
- 120
- 130
- 140
- 150
length in mm
- 37
- 40
- 50
- 52
- 53
- 54
- 57
- 58
- 59
- 64
- 67
- 68
- 71
- 73
- 74
- 75
- 78
- 79
- 82
- 83
- 85
- 90
- 104
- 115
- 125
- 135
GTIN/EAN
- 7316570196436
- 7316570430325
- 7316570469974
- 7316570493528
- 7316570508819
- 7316570514124
- 7316570529623
- 7316570908916
- 7316577013187
- 7316577013194
- 7316577013200
- 7316577013217
- 7316577013224
- 7316577013231
- 7316577013248
- 7316577013255
- 7316577013262
- 7316577013309
- 7316577013316
- 7316577013323
- 7316577013330
- 7316577013415
- 7316577013439
- 7316577013453
- 7316577013460
- 7316577013484
- 7316577013507
- 7316577013545
- 7316577068989
thread size
series
- AHX...
- AHX…G / A
Type
Est. shipping days
- All
- Within 17 working days

Withdrawal Sleeve, AHX

Withdrawal Sleeve, AHX

Catalog

Part number:

Still undefined. 29 possible part numbers found.

Part number list
Catalog

Part number list

Number of items

Part number

Internal diameter

(mm)

Outer diameter

(mm)

Weight

(g)

internal diameter in mm

external diameter in mm

length in mm

GTIN/EAN

thread size

series

Minimum order quantity

45	50	202.0	45	50	50	7316577013248	M55x2	AHX...	1 pieces
50	55	245.0	50	55	54	7316577013255	M60x2	AHX...	1 pieces
55	60	300.0	55	60	58	7316577013262	M65x2	AHX...	1 pieces
70	75	462.0	70	75	68	7316570430325	M80x2	AHX…G / A	1 pieces
70	85	600.0	70	85	71	7316577013309	M90x2	AHX...	1 pieces
80	85	674.0	80	85	74	7316577013316	M95x2	AHX...	1 pieces
85	90	770.0	85	90	79	7316577013323	M100x2	AHX...	1 pieces
90	95	870.0	90	95	85	7316577013330	M105x2	AHX...	1 pieces
95	100	1010.0	95	100	90	7316577068989	M110x2	AHX...	1 pieces
125	130	1860.0	125	130	115	7316570514124	M140x2	AHX…G / A	1 pieces
135	140	2154.0	135	140	125	7316570508819	M150x3	AHX…G / A	1 pieces
145	150	2534.0	145	150	135	7316570196436	M160x3	AHX…G / A	1 pieces
125	130	910.0	125	130	67	7316570908916	M140x2	AHX...	1 pieces
135	140	1010.0	135	140	68	7316577013415	M150x2	AHX...	1 pieces
50	55	160.0	50	55	37	7316577013187	M60x2	AHX...	1 pieces
55	60	190.0	55	60	40	7316577013194	M65x2	AHX...	1 pieces
95	100	661.0	95	100	64	7316577013439	M110x2	AHX...	1 pieces
105	110	740.0	105	110	68	7316577013453	M120x2	AHX...	1 pieces
115	120	960.0	115	120	75	7316577013460	M130x2	AHX...	1 pieces
125	130	1062.0	125	130	78	7316577013484	M140x2	AHX...	1 pieces
135	140	1310.0	135	140	83	7316577013507	M150x2	AHX...	1 pieces
80	85	430.0	80	85	52	7316577013200	M95x2	AHX...	1 pieces
85	90	460.0	85	90	53	7316577013217	M100x2	AHX...	1 pieces
90	95	523.0	90	95	57	7316577013224	M105x2	AHX...	1 pieces
95	100	580.0	95	100	59	7316577013231	M110x2	AHX...	1 pieces
95	100	750.0	95	100	73	7316577013545	M110x2	AHX...	1 pieces
105	110	1000.0	105	110	82	7316570493528	M120x2	AHX…G / A	1 pieces
115	120	1221.0	115	120	90	7316570469974	M130x2	AHX…G / A	1 pieces
135	140	1684.0	135	140	104	7316570529623	M150x2	AHX…G / A	1 pieces

Unit price (excluding VAT)(Unit price including VAT)	Standard shipping days

91.08 € ( 108.39 € )	17 working days
78.95 € ( 93.95 € )	17 working days
81.40 € ( 96.87 € )	17 working days
90.63 € ( 107.85 € )	17 working days
96.00 € ( 114.24 € )	17 working days
100.53 € ( 119.63 € )	17 working days
106.12 € ( 126.28 € )	17 working days
115.62 € ( 137.59 € )	17 working days
115.77 € ( 137.77 € )	17 working days
257.90 € ( 306.90 € )	17 working days
377.78 € ( 449.56 € )	17 working days
451.68 € ( 537.50 € )	17 working days
198.12 € ( 235.76 € )	17 working days
231.17 € ( 275.09 € )	17 working days
100.52 € ( 119.62 € )	17 working days
85.87 € ( 102.19 € )	17 working days
126.15 € ( 150.12 € )	17 working days
135.70 € ( 161.48 € )	17 working days
161.72 € ( 192.45 € )	17 working days
229.50 € ( 273.11 € )	17 working days
298.80 € ( 355.57 € )	17 working days
76.97 € ( 91.59 € )	17 working days
84.08 € ( 100.06 € )	17 working days
88.80 € ( 105.67 € )	17 working days
94.12 € ( 112.00 € )	17 working days
148.85 € ( 177.13 € )	17 working days
180.08 € ( 214.30 € )	17 working days
226.10 € ( 269.06 € )	17 working days
307.05 € ( 365.39 € )	17 working days

Catalog

Products homepage

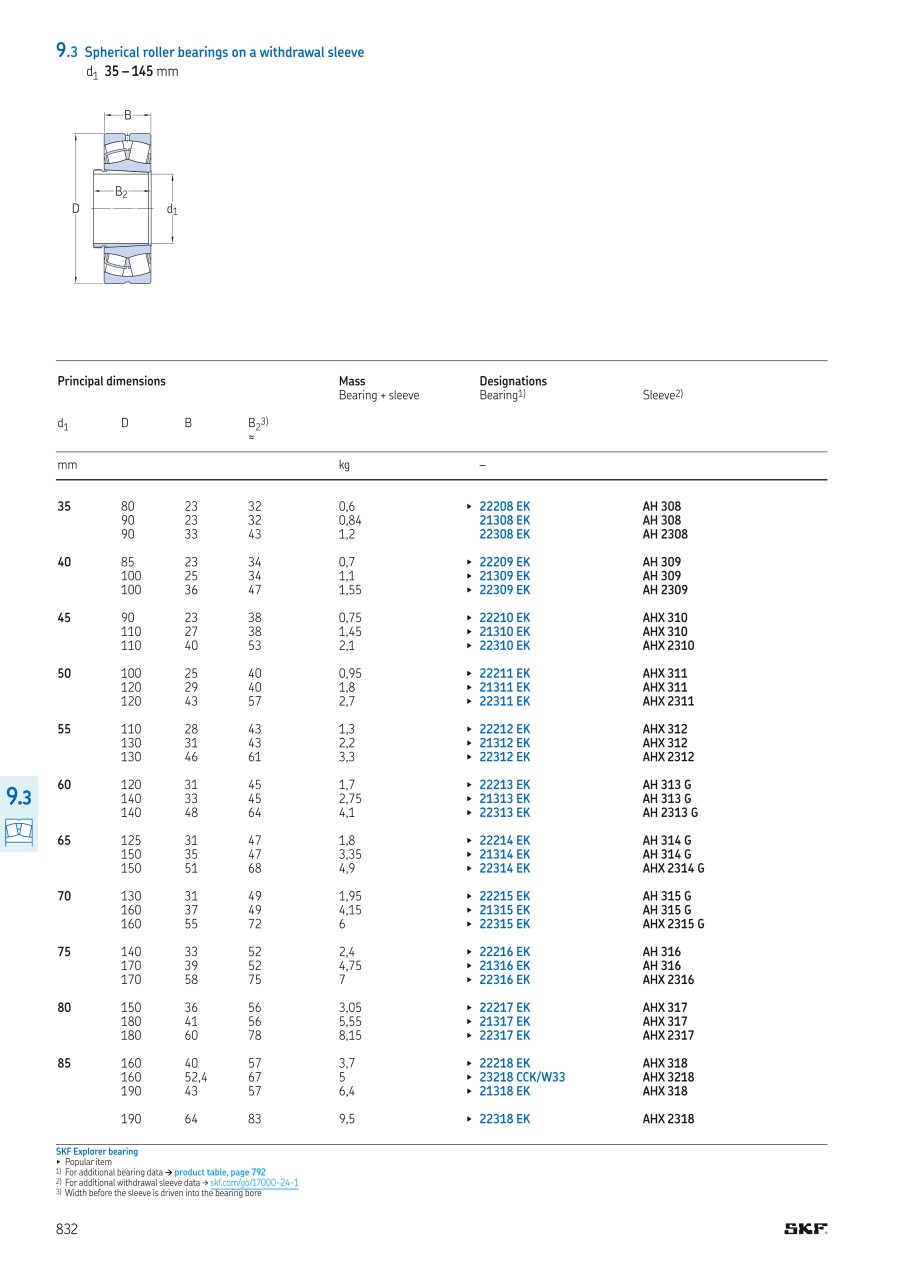

Catalog (2-page spread)

834
