Timing belts / Powergrip / open, 30m / H / CR / glass fibre / GATES
· Length stability due to the use of high modulus tensile members
· Easy to attach with clamping fixtures
· Maintenance-free: no re-tensioning required, no lubrication needed
· Unique straight cut production methodology:cord perpendicular to belt teeth
· Temperature range:
· -30°C to +100°C (PowerGrip™)
· -54°C to +85°C (Poly Chain®)
(i)Remark
- Product images may be representative images only. Please refer to the manufacturer's catalog for shape details.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
- Product data
- CAD data not available
Part Number
|
|---|
| 9314-10004 |
| 9314-10011 |
| 9314-10023 |
| 9314-10033 |
| 9314-10037 |
| 9314-10081 |
| 9314-40082 |
| 9314-40083 |
| LL H 150 CTB STAHL |
| Part Number |
Standard Unit Price
| Minimum order quantity | Volume Discount | Core Wire Material | Belt Width (mm) (mm) | Pitch (mm) | GTIN/EAN | Weight (g) | |
|---|---|---|---|---|---|---|---|---|---|
28.80 € | 1 | 12 Days | [Glass Fiber] Glass Cord | 19.1 | 12.7 | 5412571341416 | 90.0 | ||
37.19 € | 210 | 12 Days | Steel Cord | 19.1 | 12.7 | 5412571341447 | 121.0 | ||
38.57 € | 1 | 12 Days | [Glass Fiber] Glass Cord | 100 | 12.7 | 5412571341454 | 120.0 | ||
23.17 € | 30 | 12 Days | [Glass Fiber] Glass Cord | 19.1 | 9.525 | 5412571341546 | 78.0 | ||
49.92 € | 30 | 12 Days | Steel Cord | 100 | 12.7 | 5412571341584 | 157.0 | ||
57.95 € | 1 | 12 Days | [Glass Fiber] Glass Cord | 150 | 12.7 | 5412571341645 | 183.0 | ||
100.27 € | 1 | 12 Days | Steel Cord | 200 | 12.7 | 5412571342000 | 283.0 | ||
77.37 € | 30 | 12 Days | [Glass Fiber] Glass Cord | 200 | 12.7 | 5412571342017 | 242.0 | ||
74.93 € | 90 | 12 Days | Steel Cord | 150 | - | - | 269.0 |
Loading...
Basic information
| Belt material | Rubber Belt | Temperature range (min.)(°C) | -54 | Temperature range (max.) | 85 |
|---|---|---|---|---|---|
| Customs tariff number | 40103900 |

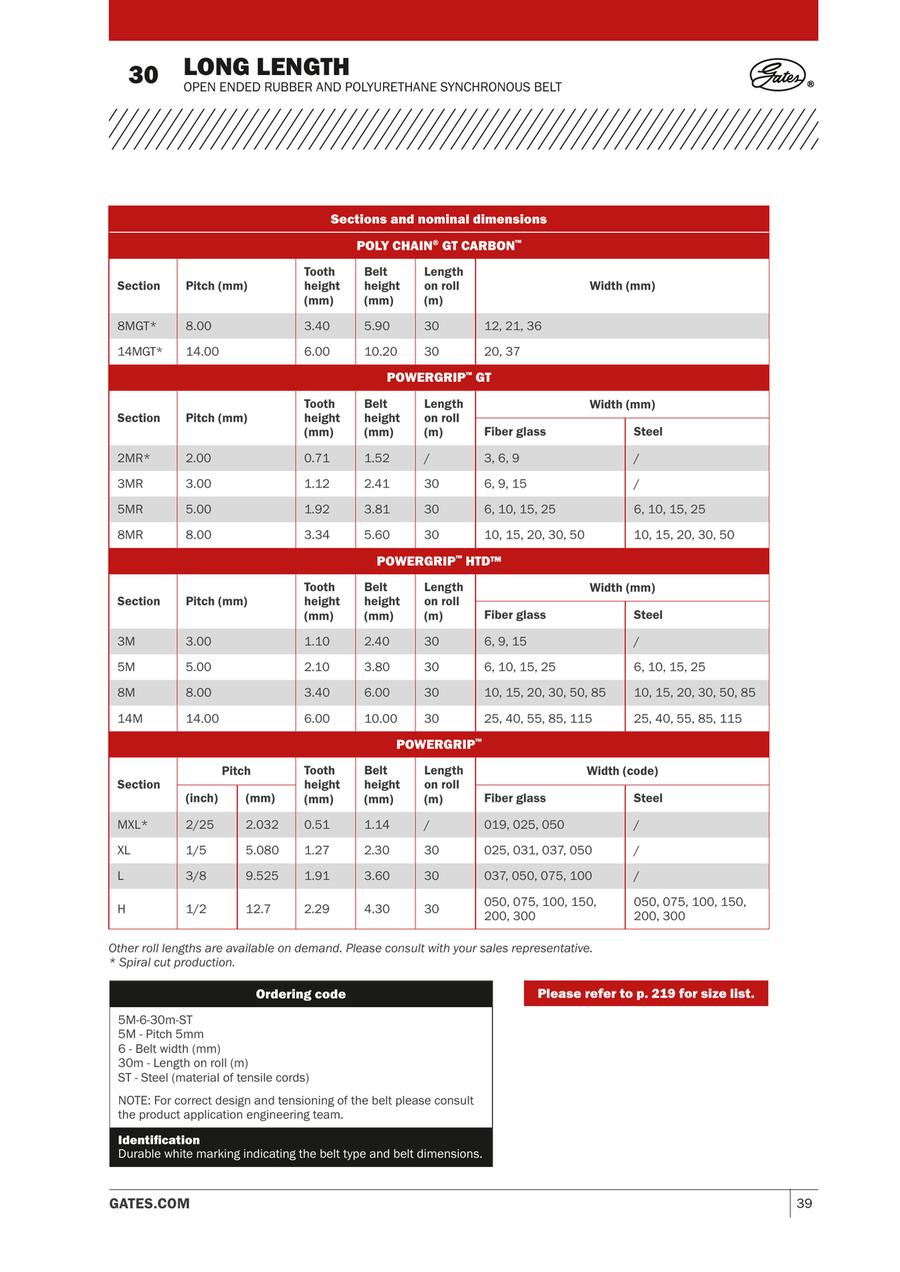

- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
